MTSM0012 Series
Manufacturer: Marktech Optoelectronics
Beta
⌘K

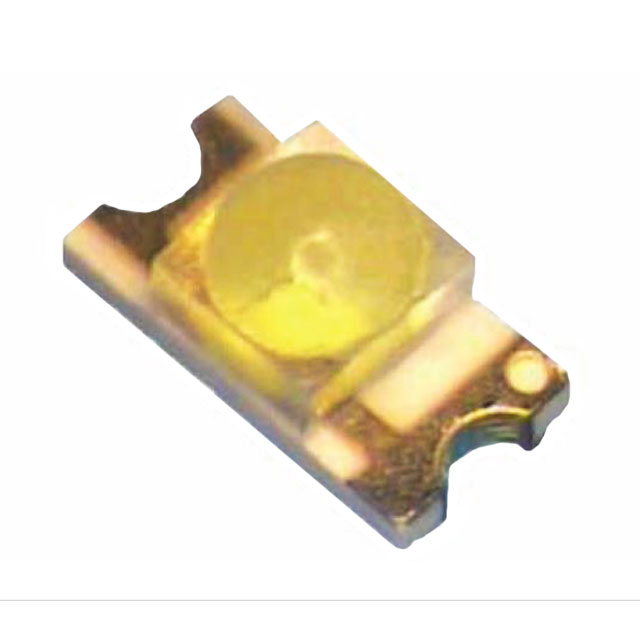

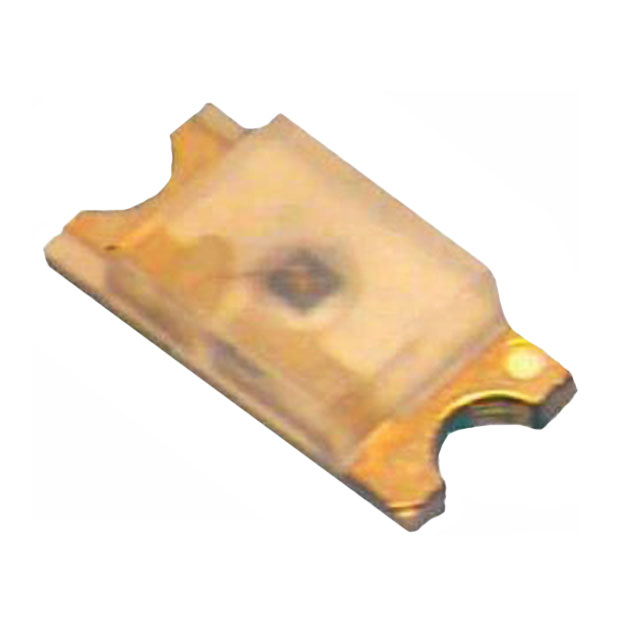

SWIR EMITTER 1200NM 1206 SMD DOM
| Part | Orientation | Wavelength | Radiant Intensity (Ie) Min @ If [Min] | Type | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Mounting Type | Viewing Angle | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Marktech Optoelectronics | Top View | 1200 nm | 11 mW/sr | Infrared (IR) | 1.1 V | 50 mA | Surface Mount | 40 ° | 1206 (3216 Metric) | 85 °C | -40 C |
 Marktech Optoelectronics | Top View | 1200 nm | 2.1 mW/sr | Infrared (IR) | 1.1 V | 50 mA | Surface Mount | 120 ° | 1206 (3216 Metric) | 85 °C | -40 C |
