TOP100 Series

Catalog

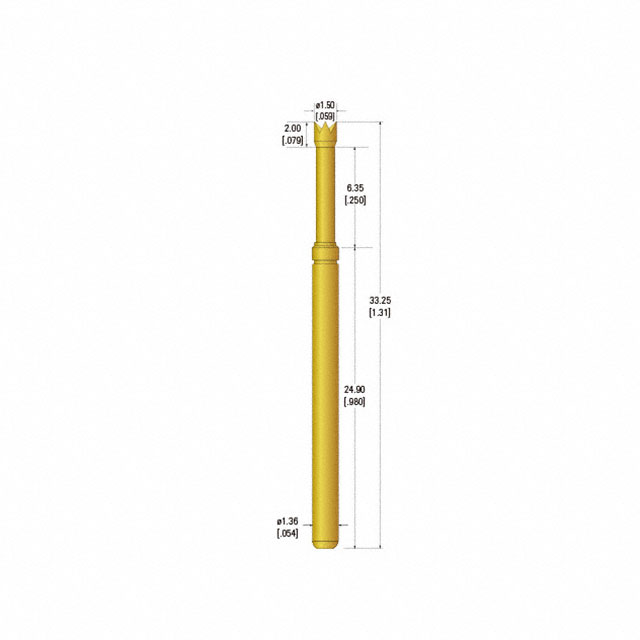

ICT SPRING CONTACT TEST PROBE

Part	Tip Type	Current Rating (Amps)	Material - Tip [custom]	Length - Tip [x]	Length - Tip [x]	Length - Overall [x]	Length - Overall [x]	Material - Body	Tip Type	Tip Type [diameter]	Tip Type [diameter]	Tip Type [diameter]	Tip Type
Chip Shine / CSRF TOP100ZH15/200G	Spring Tip - Crown Head	3 A	Beryllium Copper Gold Plated Steel	0.329 in	8.35 mm	1.31 in	33.27 mm	Phosphor Copper Gold Plated
Chip Shine / CSRF TOP100C09/280G	Spring Tip - Spherical Head	3 A	Beryllium Copper Gold Plated Steel	0.329 in	8.35 mm	1.31 in	33.27 mm	Phosphor Copper Gold Plated	0.035 in 0.9 mm
Chip Shine / CSRF TOP100I31/100G	Spring Tip - Serrated Head	3 A	Beryllium Copper Gold Plated Steel	0.329 in	8.35 mm	1.31 in	33.27 mm	Phosphor Copper Gold Plated		0.122 in	3.1 mm
Chip Shine / CSRF TOP100W09/200G	Spring Tip - Dagger Head 0.035" (0.90mm) Dia	3 A	Beryllium Copper Gold Plated Steel	0.329 in	8.35 mm	1.31 in	33.27 mm	Phosphor Copper Gold Plated
Chip Shine / CSRF TOP100W09/250G	Spring Tip - Dagger Head 0.035" (0.90mm) Dia	3 A	Beryllium Copper Gold Plated Steel	0.329 in	8.35 mm	1.31 in	33.27 mm	Phosphor Copper Gold Plated
Chip Shine / CSRF TOP100I20/200G	Spring Tip - Serrated Head	3 A	Beryllium Copper Gold Plated Steel	0.329 in	8.35 mm	1.31 in	33.27 mm	Phosphor Copper Gold Plated		2 mm		0.079 "
Chip Shine / CSRF TOP100I064/200G	Spring Tip - Serrated Head	3 A	Beryllium Copper Gold Plated Steel	0.329 in	8.35 mm	1.31 in	33.27 mm	Phosphor Copper Gold Plated		0.025 in	0.64 mm
Chip Shine / CSRF TOP100H15/200G	Spring Tip - Crown Head	3 A	Beryllium Copper Gold Plated Steel	0.329 in	8.35 mm	1.31 in	33.27 mm	Phosphor Copper Gold Plated		1.5 mm		0.059 in
Chip Shine / CSRF TOP100A15/150G	Spring Tip - Pyramid Head	3 A	Beryllium Copper Gold Plated Steel	0.329 in	8.35 mm	1.31 in	33.27 mm	Phosphor Copper Gold Plated	1.5 mm				0.059 "
Chip Shine / CSRF TOP100E15/200G	Spring Tip - Cup Head	3 A	Beryllium Copper Gold Plated Steel	0.329 in	8.35 mm	1.31 in	33.27 mm	Phosphor Copper Gold Plated		1.5 mm		0.059 in
