892-012 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 12POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Flange Feature	Number of Rows [custom]	Color	Features	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Finish	Contact Material	Read Out	Termination	Card Type	Number of Positions/Bay/Row	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]

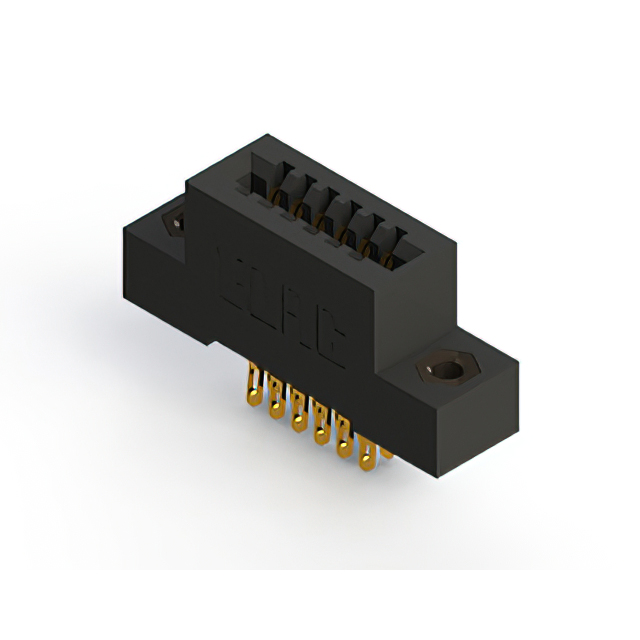

EDAC Inc. 892-012-555-207	Polyphenylene Sulfide (PPS)	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	0.25 Ám	10 Áin	Cantilever	Flush Mount M3 Threaded Insert Top Opening	2	Black	Card Extender	12	125 °C	-40 C	Female	Gold	Copper Alloy	Dual	Solder	Non Specified - Dual Edge	6

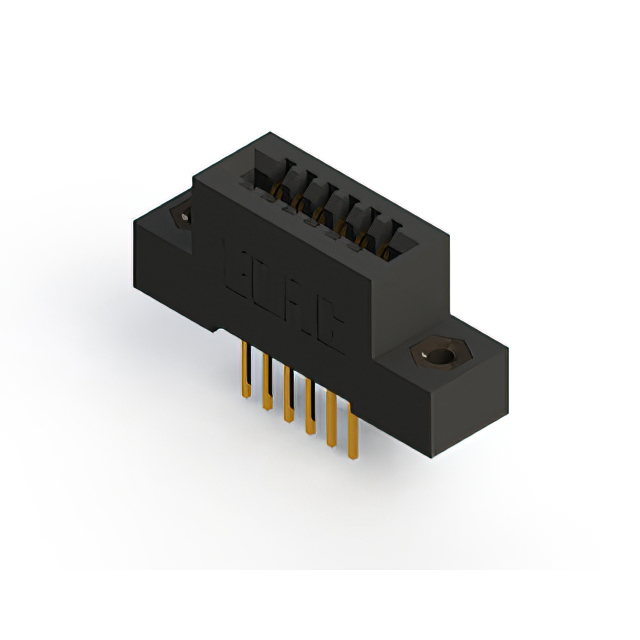

EDAC Inc. 892-012-523-208	Polyphenylene Sulfide (PPS)	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	2	Black		12	125 °C	-40 C	Female	Gold	Copper Alloy	Dual	Solder	Non Specified - Dual Edge	6

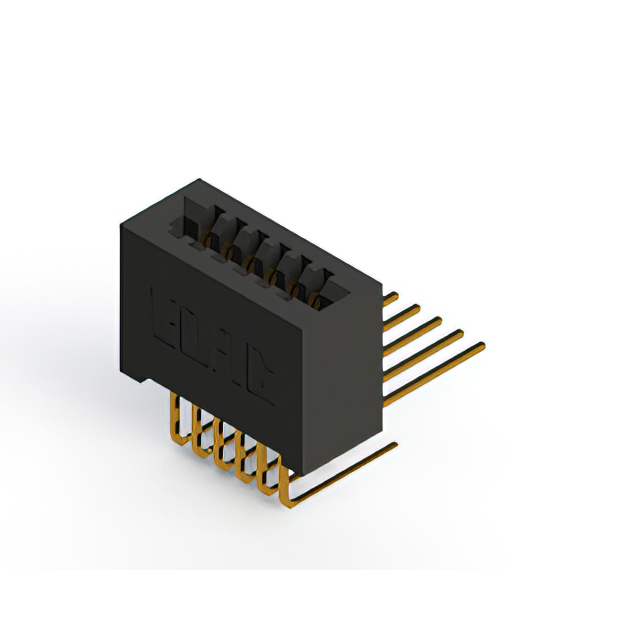

EDAC Inc. 892-012-558-201	Polyphenylene Sulfide (PPS)	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	0.25 Ám	10 Áin	Cantilever		2	Black		12	125 °C	-40 C	Female	Gold	Copper Alloy	Dual	Solder	Non Specified - Dual Edge	6

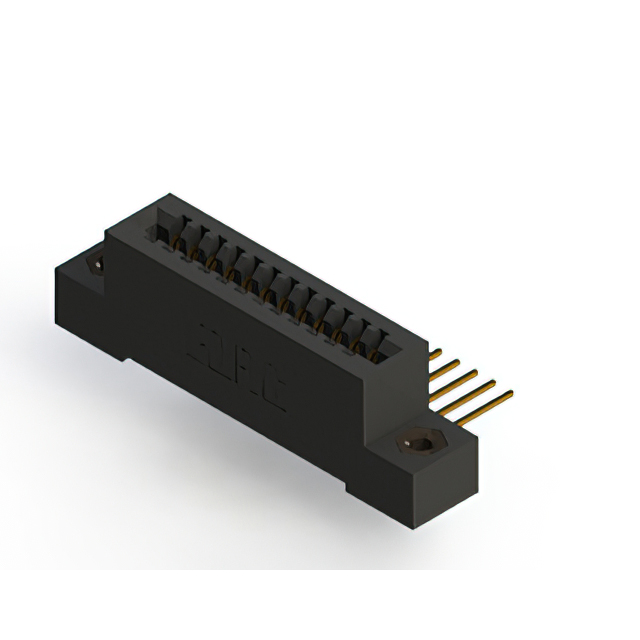

EDAC Inc. 892-012-559-108	Polyphenylene Sulfide (PPS)		0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening		Black		12	125 °C	-40 C	Female	Gold	Copper Alloy	Single	Solder	Non Specified - Single Edge	12	1	1

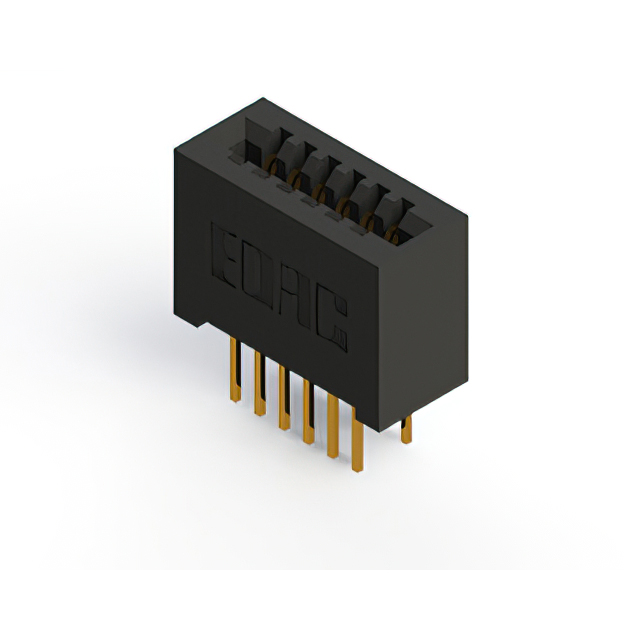

EDAC Inc. 892-012-523-201	Polyphenylene Sulfide (PPS)	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Cantilever		2	Black		12	125 °C	-40 C	Female	Gold	Copper Alloy	Dual	Solder	Non Specified - Dual Edge	6
EDAC Inc. 892-012-555-208	Polyphenylene Sulfide (PPS)	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	2	Black	Card Extender	12	125 °C	-40 C	Female	Gold	Copper Alloy	Dual	Solder	Non Specified - Dual Edge	6

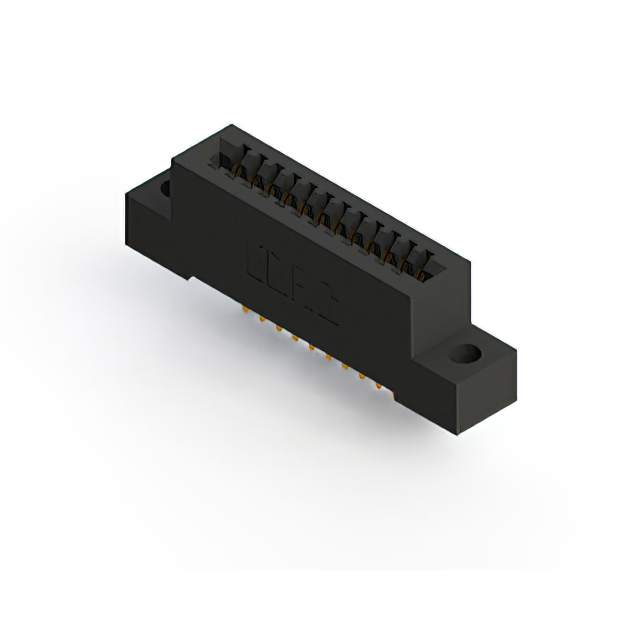

EDAC Inc. 892-012-540-104	Polyphenylene Sulfide (PPS)		0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Cantilever	Flush Mount Top Opening Unthreaded		Black		12	125 °C	-40 C	Female	Gold	Copper Alloy	Single	Wire Wrap	Non Specified - Single Edge	12	1	1	0.156 "	3.96 mm

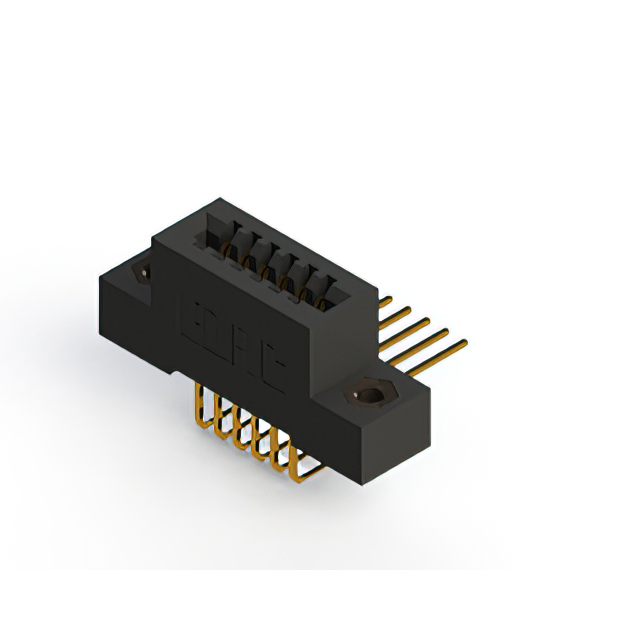

EDAC Inc. 892-012-558-207	Polyphenylene Sulfide (PPS)	2	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	0.25 Ám	10 Áin	Cantilever	Flush Mount M3 Threaded Insert Top Opening	2	Black		12	125 °C	-40 C	Female	Gold	Copper Alloy	Dual	Solder	Non Specified - Dual Edge	6

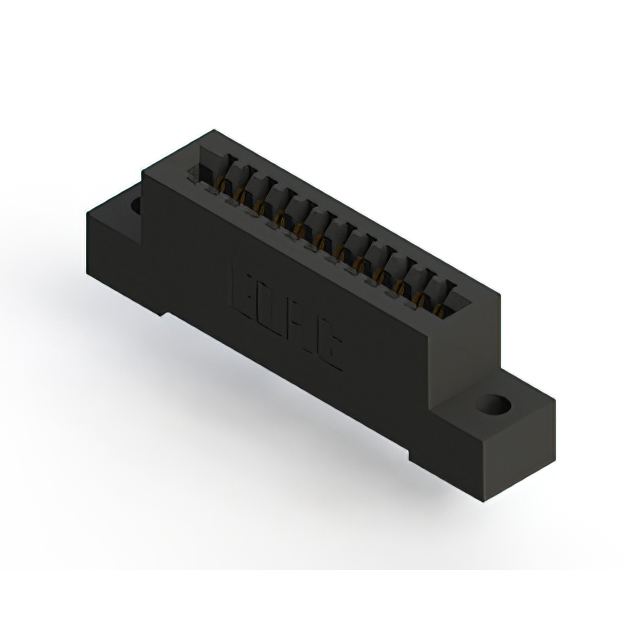

EDAC Inc. 892-012-524-102	Polyphenylene Sulfide (PPS)		0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Cantilever	Flush Mount Top Opening Unthreaded		Black		12	125 °C	-40 C	Female	Gold	Copper Alloy	Single	Solder	Non Specified - Single Edge	12	1	1	0.128 "	3.25 mm
EDAC Inc. 892-012-524-107	Polyphenylene Sulfide (PPS)		0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Cantilever	Flush Mount M3 Threaded Insert Top Opening		Black		12	125 °C	-40 C	Female	Gold	Copper Alloy	Single	Solder	Non Specified - Single Edge	12	1	1
