NHD-C12864 Series

Catalog

LCD COG GRAPH 128X64 BLUE BKLT

Part	Dot Size [y]	Dot Size [x]	Dot Pitch [x]	Dot Pitch [y]	Background Color	Dot Pixels [x]	Dot Pixels [y]	Graphics Color	Viewing Area [y]	Viewing Area [z]	Interface	Controller Type	Backlight	Display Mode	Display Type	Dot Size [custom]	Dot Size [custom]	Background Color	Viewing Area [x]	Dot Pitch [custom]	Dot Pitch [custom]	Dot Size [z]	Graphics Color

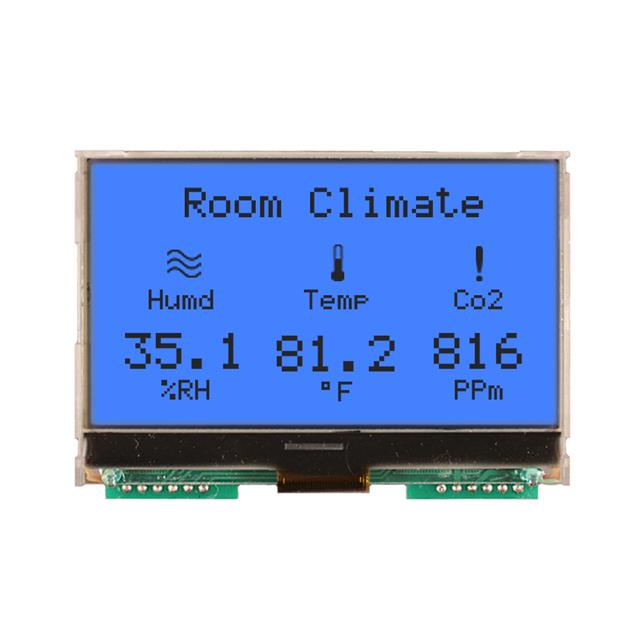

Newhaven Display Intl NHD-C12864A1Z-FSB-FBW-HTT	0.48 mm	0.48 mm	0.52 mm	0.52 mm	Blue (Black - Inverted)	128	64	Black	70.7 mm	38.8 mm	SPI	ST-7565V	LED - Blue	Transflective	FSTN - Film Super-Twisted Nematic

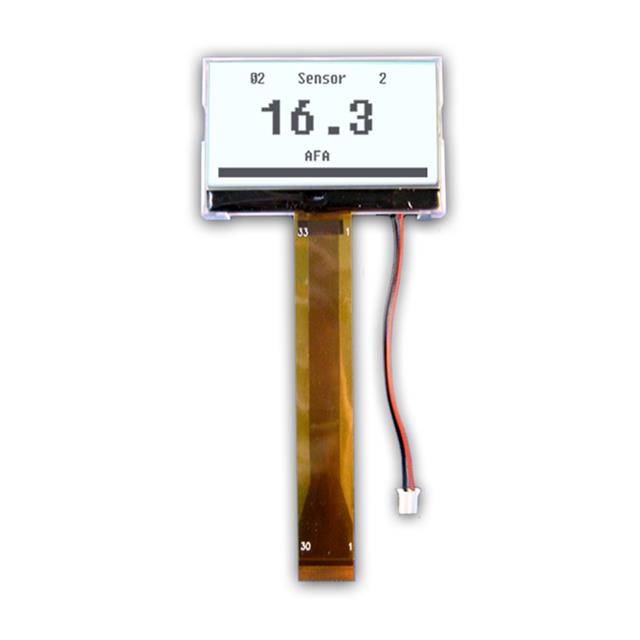

Newhaven Display Intl NHD-C12864WC-FSW-FBW-3V3			0.4 mm	0.4 mm	White	128	64	Black White - Inverted	28.8 mm		Parallel/Serial	ST7565R	LED - White	Transflective	FSTN - Film Super-Twisted Nematic	0.36 mm	0.36 mm	Black	58 mm

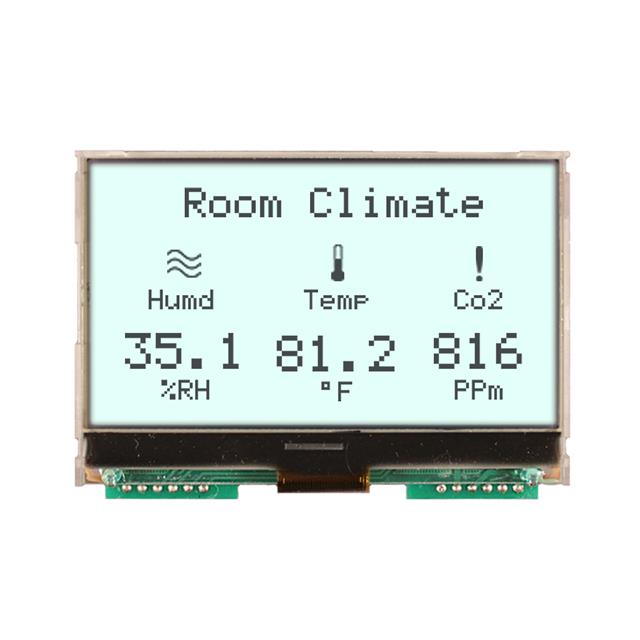

Newhaven Display Intl NHD-C12864A1Z-FSW-FBW-HTT	0.48 mm	0.48 mm	0.52 mm	0.52 mm	White	128	64	Black White - Inverted	70.7 mm	38.8 mm	SPI	ST-7565V	LED - White	Transflective	FSTN - Film Super-Twisted Nematic			Black

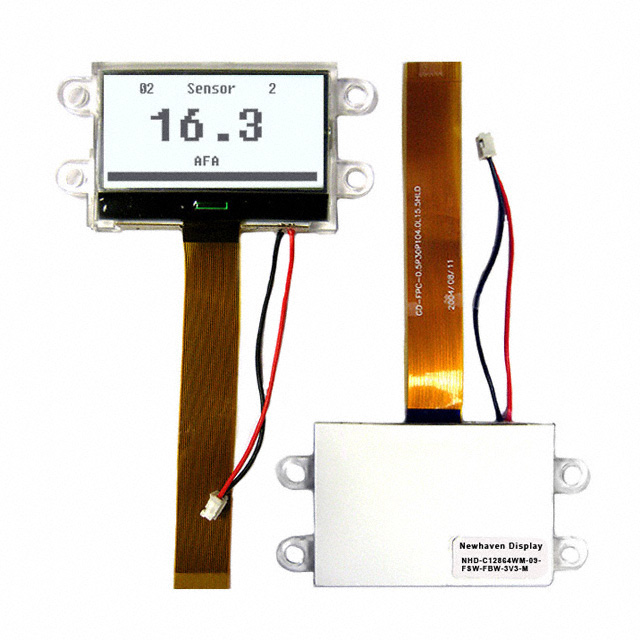

Newhaven Display Intl NHD-C12864WM-09-FSW-FBW-3V3-M			0.36 mm	0.4 mm	White	128	64	Black White - Inverted	28.8 mm		Parallel/Serial		LED - White	Transflective	FSTN - Film Super-Twisted Nematic	0.36 mm	0.36 mm	Black	58 mm

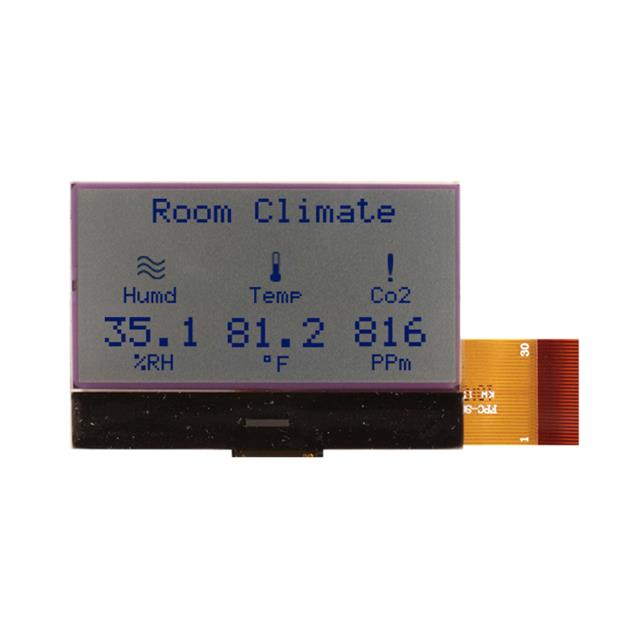

Newhaven Display Intl NHD-C12864GG-RN-GBW			0.37 mm	0.37 mm	Gray	128	64	Black (Gray - Inverted)	26.67 mm		8-Bit Parallel	ST-7565R		Reflective	STN - Super-Twisted Nematic	0.35 mm	0.35 mm		49.53 mm

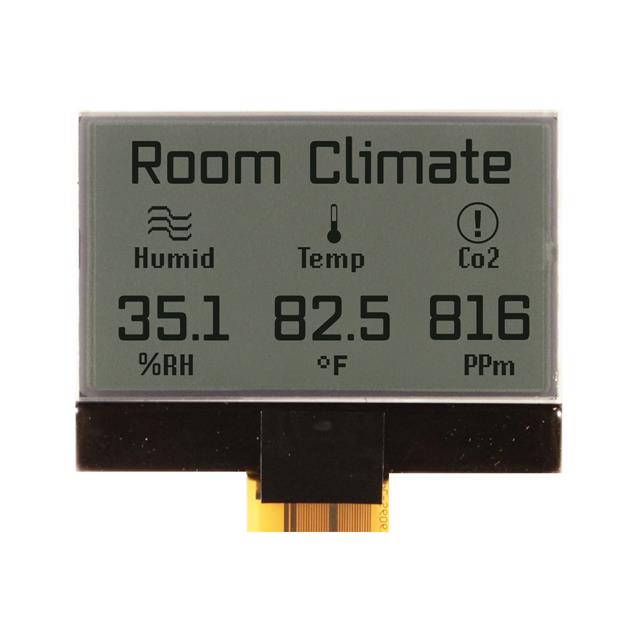

Newhaven Display Intl NHD-C12864B2Z-RN-FBW			0.31 mm	0.31 mm	Gray	128	64	Black (Gray - Inverted)	24 mm		Parallel	ST-7565R		Reflective	FSTN - Film Super-Twisted Nematic	0.27 mm	0.27 mm		44 mm

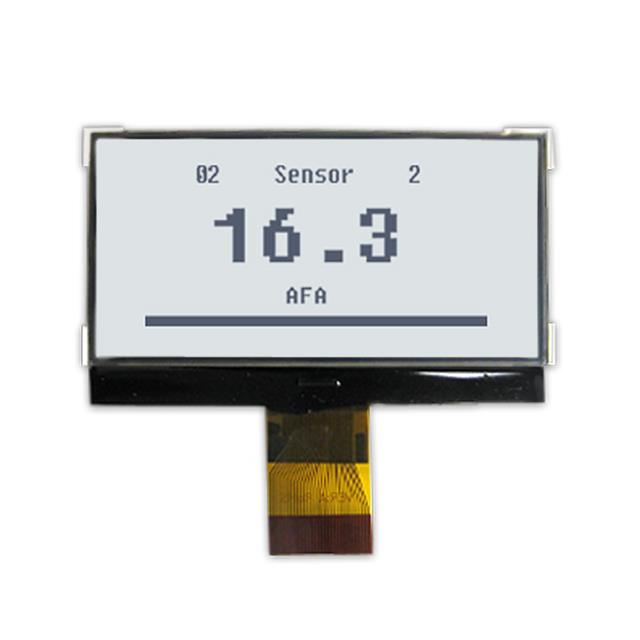

Newhaven Display Intl NHD-C12864M1R-FSW-FTW-3V6	0.39 mm	0.39 mm			White	128	64	Black White - Inverted	30.5 mm		Parallel/Serial	SPLC-501C	LED - White	Transflective	FSTN - Film Super-Twisted Nematic			Black	59 mm	0.43 mm	0.43 mm

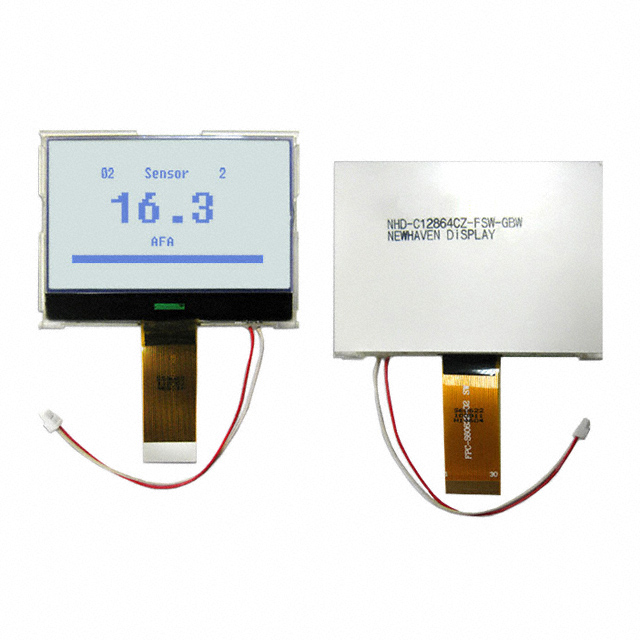

Newhaven Display Intl NHD-C12864CZ-FSW-GBW	0.42 mm		0.46 mm	0.56 mm	Gray (Blue - Inverted)	128	64	Blue	40 mm		Parallel/Serial		LED - White	Transflective	STN - Super-Twisted Nematic				65.5 mm			0.51 mm	Gray - Inverted

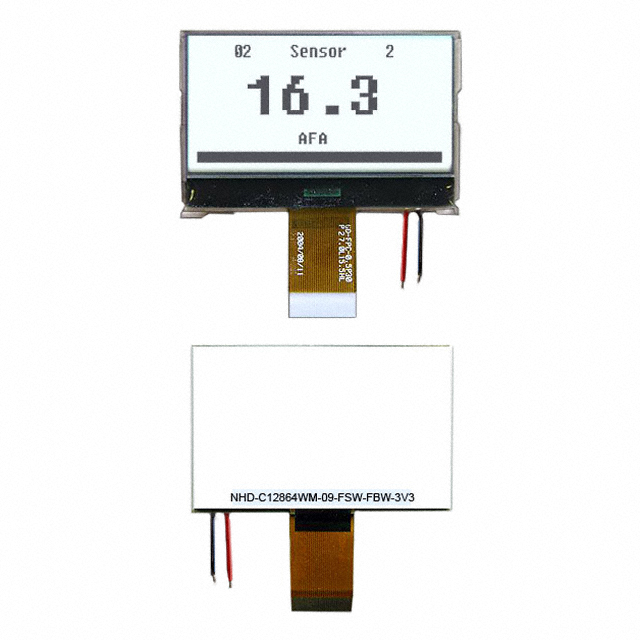

Newhaven Display Intl NHD-C12864WM-09-FSW-FBW-3V3			0.4 mm	0.4 mm	White	128	64	Black White - Inverted	28.8 mm		Parallel/Serial		LED - White	Transflective	FSTN - Film Super-Twisted Nematic	0.36 mm	0.36 mm	Black	58 mm

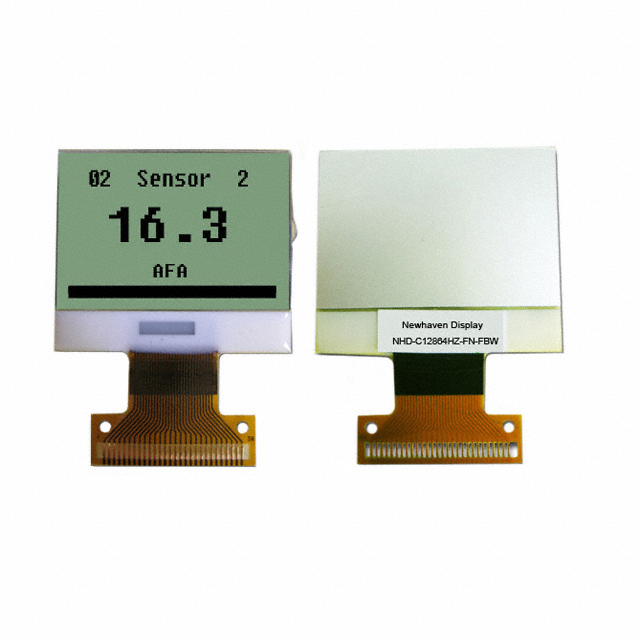

Newhaven Display Intl NHD-C12864HZ-FN-FBW			0.24 mm	0.3 mm	Gray	128	64	Black (Gray - Inverted)	22.2 mm		8-Bit Parallel			Transflective	FSTN - Film Super-Twisted Nematic	0.23 mm	0.29 mm		33.8 mm
