ADUM4146 Series

11 A High Voltage Isolated Bipolar Gate Driver with Fault Detection, Miller Clamp

Catalog

11 A High Voltage Isolated Bipolar Gate Driver with Fault Detection, Miller Clamp

Part	Utilized IC / Part	Type	Function	Contents	Supplied Contents	Current - Peak Output	Number of Channels	Common Mode Transient Immunity (Min) [Min]	Approval Agency	Supplier Device Package	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Technology	Current - Output High, Low [Max]	Current - Output High, Low [Min]	Mounting Type	Package / Case [x]	Package / Case	Package / Case [y]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Operating Temperature [Max]	Operating Temperature [Min]

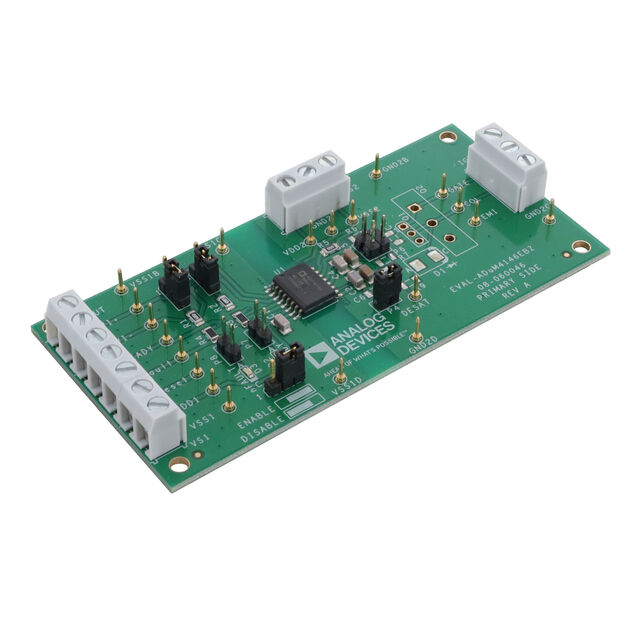

Analog Devices EVAL-ADUM4146EBZ	ADuM4146	Power Management	Gate Driver	Board(s)	Board(s)
Analog Devices EVAL-ADUM4146WHB1Z	ADuM4146	Power Management	Gate Driver		Board(s)
Analog Devices ADUM4146CRWZ-RL						4.61 A	1	100 V/ns	CSA UL VDE	16-SOIC	2.5 V 12 V	6 V 30 V	Magnetic Coupling	11 A	9 A	Surface Mount	0.295 in	16-SOIC	7.5 mm	16 ns	16 ns	100 ns	100 ns	125 °C	-40 °C
Analog Devices ADUM4146ARWZ						4.61 A	1	100 V/ns	CSA UL VDE	16-SOIC	2.5 V 12 V	6 V 30 V	Magnetic Coupling	11 A	9 A	Surface Mount	0.295 in	16-SOIC	7.5 mm	16 ns	16 ns	100 ns	100 ns	125 °C	-40 °C
Analog Devices ADUM4146BRWZ						4.61 A	1	100 V/ns	CSA UL VDE	16-SOIC	2.5 V 12 V	6 V 30 V	Magnetic Coupling	11 A	9 A	Surface Mount	0.295 in	16-SOIC	7.5 mm	16 ns	16 ns	100 ns	100 ns	125 °C	-40 °C
Analog Devices ADUM4146ARWZ-RL						4.61 A	1	100 V/ns	CSA UL VDE	16-SOIC	2.5 V 12 V	6 V 30 V	Magnetic Coupling	11 A	9 A	Surface Mount	0.295 in	16-SOIC	7.5 mm	16 ns	16 ns	100 ns	100 ns	125 °C	-40 °C
Analog Devices ADUM4146BRWZ-RL						4.61 A	1	100 V/ns	CSA UL VDE	16-SOIC	2.5 V 12 V	6 V 30 V	Magnetic Coupling	11 A	9 A	Surface Mount	0.295 in	16-SOIC	7.5 mm	16 ns	16 ns	100 ns	100 ns	125 °C	-40 °C

Catalog

11 A High Voltage Isolated Bipolar Gate Driver with Fault Detection, Miller Clamp

Key Features

• 11 A short-circuit source current (0 Ω gate resistance)

• 9 A short-circuit sink current (0 Ω gate resistance)

• 4.61 A peak current (2 Ω gate resistance)

• Output power device resistance: <1 Ω

• Output voltage range up to 30 V

• Multiple UVLO options on VDD2Grade A: 14.5 V (typical) UVLO on VDD2positive going thresholdGrade B and Grade C: 11.5 V (typical) UVLO on VDD2positive going threshold

• Grade A: 14.5 V (typical) UVLO on VDD2positive going threshold

• Grade B and Grade C: 11.5 V (typical) UVLO on VDD2positive going threshold

• VDD1input voltage range from 2.5 V to 6 V

• Desaturation protectionSoft shutdown on desaturation fault

• Soft shutdown on desaturation fault

• Multiple desaturation detect comparator voltagesGrade B: 9.2 V (typical)Grade A and Grade C: 3.5 V (typical)

• Grade B: 9.2 V (typical)

• Grade A and Grade C: 3.5 V (typical)

• Miller clamp output with gate sense input

• Isolated fault and ready functions

• Low propagation delay: 75 ns (typical)

• Operating temperature range: −40°C to +125°C

• Creepage distance: 8.3 mm minimum

• CMTI: 100 kV/μs

• Safety and regulatory approvals (pending)5000 V rms for 1 minute per UL 1577CSA Component Acceptance Notice 5ADIN V VDE V 0884-11VIORM= 2150 V peak

• 5000 V rms for 1 minute per UL 1577

• CSA Component Acceptance Notice 5A

• DIN V VDE V 0884-11

• VIORM= 2150 V peak

Description

The ADuM4146 is a single-channel gate driver specifically optimized for driving silicon carbide (SiC), metal-oxide semiconductor field effect transistors (MOSFETs). Analog Devices, Inc.,iCoupler®technology provides isolation between the input signal and the output gate drive.The ADuM4146 includes a Miller clamp to provide robust SiC turn off with a single-rail supply when the gate voltage drops to less than 2 V. Operation with unipolar or bipolar secondary supplies is possible with or without the Miller clamp operation.The Analog Devices chip scale transformers also provide isolated communication of control information between the high voltage and low voltage domains of the chip. Information on the status of the chip can be read back from dedicated outputs. Control of resetting the device after a fault on the secondary side is performed on the primary side of the device.Integrated onto the ADuM4146 is a desaturation detection circuit that provides protection against high voltage short-circuit SiC operation. The desaturation protection contains noise reducing features, such as a 300 ns masking time after a switching event to mask voltage spikes due to initial turn on (see Figure 17 in the data sheet). An optional internal 500 μA current source allows low device count, and the internal blanking switch allows the addition of an external current source if more noise immunity is needed.The secondary undervoltage lockout (UVLO) is set to 14.5 V (typical) for Grade A and is set to 11.5 V (typical) for Grade B and Grade C with common SiC and insulated gate bipolar transistor (IGBT) levels taken into consideration.APPLICATIONSSiC/MOSFET/IGBT gate driversPhotovoltaic (PV) invertersMotor drivesPower supplies
