TEP 75 Series

Catalog

DC/DC CONVERTER 12V 76W

Part	Efficiency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Input (Max) [Max]	Approval Agency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Power (Watts)	Voltage - Isolation	Type	Number of Outputs	Voltage - Output 1	Package / Case	Supplier Device Package	Features	Current - Output (Max)
Traco Power TEP 75-4812WI-CM	90 %	Chassis Mount	-40 C	75 ░C	ITE (Commercial) Railway	75 V	CB CE cURus	3.35 in	85.1 mm	27.9 mm	1.1 in	61 mm	2.4 in	18 V	6.3 A	76 W	3000 V	Open Frame	1	12 V
Traco Power TEP 75-7216WI-CMF	90 %	Chassis Mount	-40 C	75 ░C	ITE (Commercial) Railway	160 V	CB CE cURus	3.35 in	85.1 mm	38.9 mm	1.53 in	61 mm	2.4 in	43 V	2.7 A	76 W	3000 V	Open Frame	1	28 V
Traco Power TEP 75-2415WI-CMF	87 %	Chassis Mount	-40 C	75 ░C	ITE (Commercial) Railway	36 V	CB CE cURus	3.35 in	85.1 mm	38.9 mm	1.53 in	61 mm	2.4 in	9 V	3.2 A	77 W	3000 V	Open Frame	1	24 V
Traco Power TEP 75-4815WI-CMF	88 %	Chassis Mount	-40 C	75 ░C	ITE (Commercial) Railway	75 V	CB CE cURus	3.35 in	85.1 mm	38.9 mm	1.53 in	61 mm	2.4 in	18 V	3.2 A	77 W	3000 V	Open Frame	1	24 V

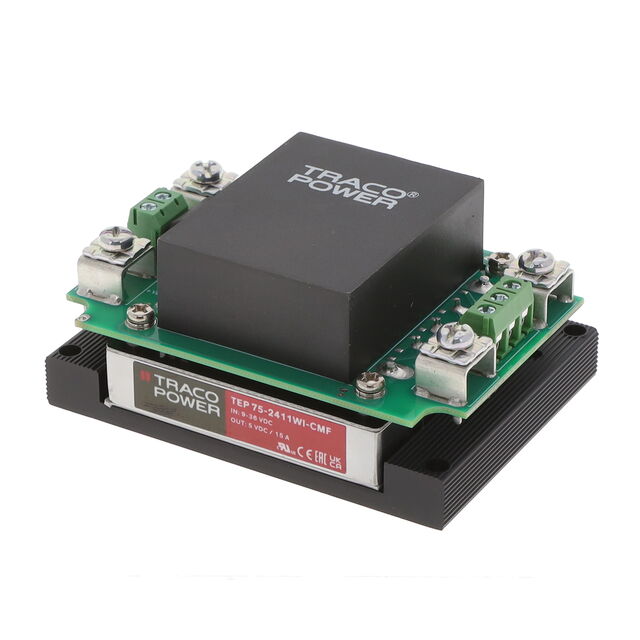

Traco Power TEP 75-2411WI-CMF	88 %	Chassis Mount	-40 C	75 ░C	ITE (Commercial) Railway	36 V	CB CE cURus	3.35 in	85.1 mm	38.9 mm	1.53 in	61 mm	2.4 in	9 V	15 A	75 W	3000 V	Open Frame	1	5 V
Traco Power TEP 75-2410WI		Through Hole	-40 °C	75 °C	ITE (Commercial) Railway	36 V		2.4 in	61 mm	12.7 mm	0.5 in	57.9 mm	2.28 in	9 V	20 A	66 W	2250 VDC	Isolated Module	1	3.3 V	Half Brick	Half Brick	OTP OVP Remote On/Off SCP UVLO

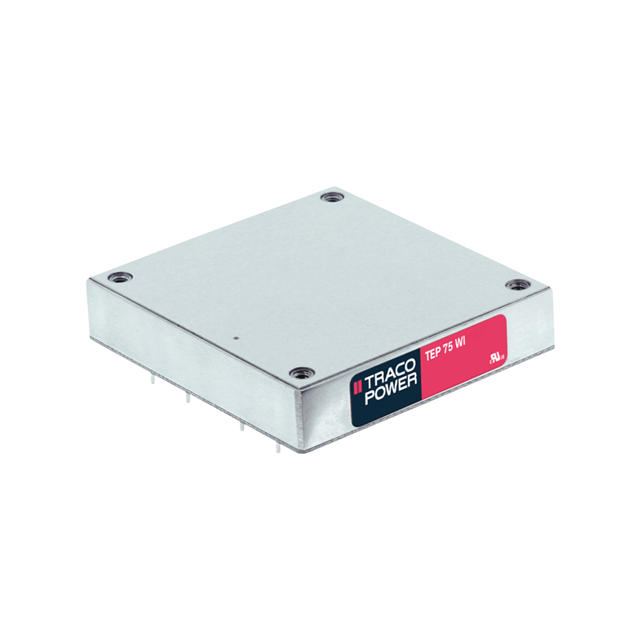

Traco Power TEP 75-4815WI	88 %	Through Hole	-40 C	75 ░C	ITE (Commercial) Railway	75 V		2.4 in	61 mm	12.7 mm	0.5 in	57.9 mm	2.28 in	18 V	3.2 A	77 W	2250 VDC	Isolated Module	1	24 V	9-DIP Module		OTP OVP Remote On/Off SCP UVLO
Traco Power TEP 75-2413WI-CM	88 %	Chassis Mount	-40 C	75 ░C	ITE (Commercial) Railway	36 V	CB CE cURus	3.35 in	85.1 mm	27.9 mm	1.1 in	61 mm	2.4 in	9 V		75 W	3000 V	Open Frame	1	15 V				5 A

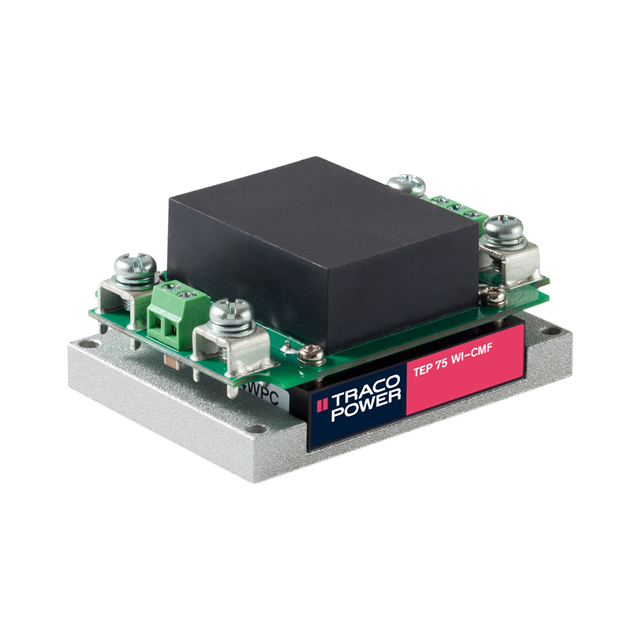

Traco Power TEP 75-2416WI-CMF	87 %	Chassis Mount	-40 C	75 ░C	ITE (Commercial) Railway	36 V	CB CE cURus	3.35 in	85.1 mm	38.9 mm	1.53 in	61 mm	2.4 in	9 V	2.7 A	76 W	3000 V	Open Frame	1	28 V
Traco Power TEP 75-4816WI-CM	88 %	Chassis Mount	-40 C	75 ░C	ITE (Commercial) Railway	75 V	CB CE cURus	3.35 in	85.1 mm	27.9 mm	1.1 in	61 mm	2.4 in	18 V	2.7 A	76 W	3000 V	Open Frame	1	28 V
