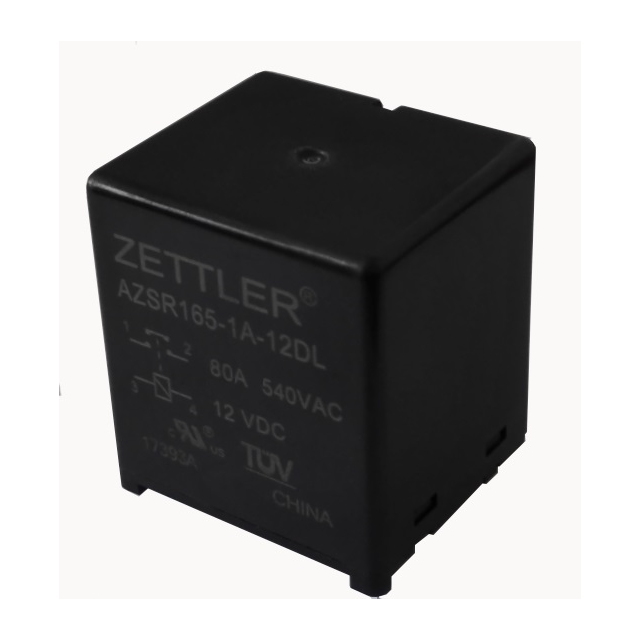

AZSR165 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY EV CHG SOLAR SPST 80A 24V
| Part | Coil Resistance | Contact Material | Switching Voltage [Max] | Contact Rating (Current) | Release Time | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Must Operate Voltage | Coil Insulation | Must Release Voltage | Mounting Type | Coil Type | Termination Style | Approval Agency | Coil Current | Relay Type | Operate Time | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 260 Ohms | Silver Nickel (AgNi) | 690 VAC | 80 A | 20 ms | SPST-NO (1 Form A) | 85 °C | -40 C | 24 VDC | 18 VDC | Class F | 1.2 VDC | Through Hole | Non Latching | PC Pin | TUV UL | 92.3 mA | EV Charging Solar | 40 ms | 55200 VA |
American Zettler | 260 Ohms | Silver Tin Oxide (AgSnO) | 690 VAC | 80 A | 20 ms | SPST-NO (1 Form A) | 85 °C | -40 C | 24 VDC | 18 VDC | Class F | 1.2 VDC | Through Hole | Non Latching | PC Pin | TUV UL | 92.3 mA | EV Charging Solar | 40 ms | 55200 VA |
American Zettler | 65 Ohms | Silver Nickel (AgNi) | 690 VAC | 80 A | 20 ms | SPST-NO (1 Form A) | 85 °C | -40 C | 12 VDC | 9 VDC | Class F | 0.6 VDC | Through Hole | Non Latching | PC Pin | TUV UL | 184.6 mA | EV Charging Solar | 40 ms | 55200 VA |
American Zettler | 65 Ohms | Silver Tin Oxide (AgSnO) | 690 VAC | 80 A | 20 ms | SPST-NO (1 Form A) | 85 °C | -40 C | 12 VDC | 9 VDC | Class F | 0.6 VDC | Through Hole | Non Latching | PC Pin | TUV UL | 184.6 mA | EV Charging Solar | 40 ms | 55200 VA |
