C0786 Series

Catalog

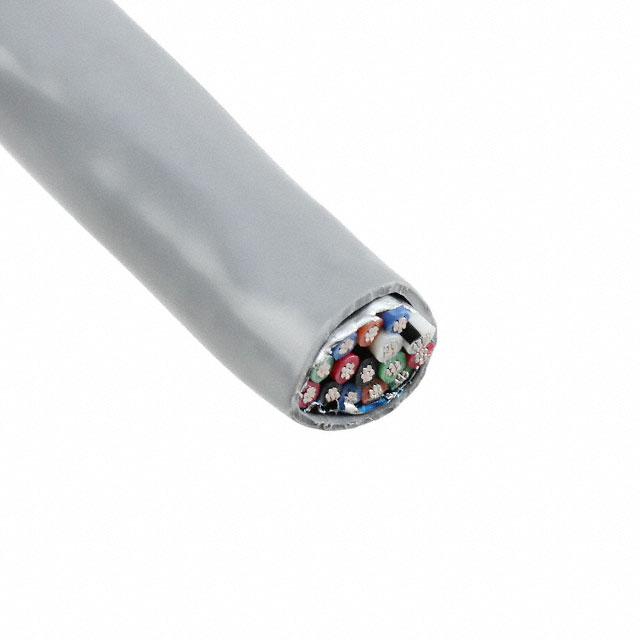

CABLE 15CON 20AWG GRAY SHLD 500'

Part	Jacket (Insulation) Material	Usage	Number of Conductors	Wire Gauge	Jacket Color	Cable Type	Length	Length	Features	Voltage	Ratings	Shield Material	Shield Type	Conductor Insulation	Shield Coverage	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Length [x]	Length [x]
Prysmian Group C0786A.38.10	Poly-Vinyl Chloride (PVC)	Computer	15	20 AWG	Gray	Multi-Conductor	152.4 m	500 ft	Drain Wire	300 VDC	ASTM B-33	Flexfoil®	Foil	Poly-Vinyl Chloride (PVC)	100 %	80 °C	-20 ░C	28 AWG	7	0.393 in	9.98 mm	0.813 mm	0.032 in	Copper Annealed Tinned
Prysmian Group C0786A.38.10	Poly-Vinyl Chloride (PVC)	Computer	15	20 AWG	Gray	Multi-Conductor	152.4 m	500 ft	Drain Wire	300 VDC	ASTM B-33		Foil	Poly-Vinyl Chloride (PVC)		80 °C	-20 ░C	28 AWG	7	0.393 in	9.98 mm	0.813 mm	0.032 in	Copper Annealed Tinned
Prysmian Group C0786A.41.10	Poly-Vinyl Chloride (PVC)	Computer	15	20 AWG	Gray	Multi-Conductor	15.24 m 304.8 m	50 ft 1000 ft	Drain Wire	300 VDC	ASTM B-33	Flexfoil®	Foil	Poly-Vinyl Chloride (PVC)	100 %	80 °C	-20 ░C	28 AWG	7	0.393 in	9.98 mm	0.813 mm	0.032 in	Copper Annealed Tinned
Prysmian Group C0786A.41.10	Poly-Vinyl Chloride (PVC)	Computer	15	20 AWG	Gray	Multi-Conductor	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Drain Wire	300 VDC	ASTM B-33		Foil	Poly-Vinyl Chloride (PVC)		80 °C	-20 ░C	28 AWG	7	0.393 in	9.98 mm	0.813 mm	0.032 in	Copper Annealed Tinned	100 ft	30.5 m
