1060 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN SMB JACK STR 50 OHM SOLDER
| Part | Body Finish | Center Contact Plating | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Dielectric Material | Voltage Rating | Body Material | Mating Cycles | Cable Group | Shield Termination | Connector Style | Center Contact Material | Impedance | Contact Termination | Fastening Type | Mounting Feature | Mounting Type | Number of Ports | Frequency - Max [Max] | Housing Color | Connector Type | Tool Type | Wire Entry Location | For Use With/Related Products | Ratcheting | Convert To (Adapter End) | Adapter Series | Center Gender | Convert From (Adapter End) | Conversion Type | Style | Adapter Type | Material - Insulation | Number of Positions Loaded | Pitch | Pitch | Number of Positions | Contact Finish | Termination | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

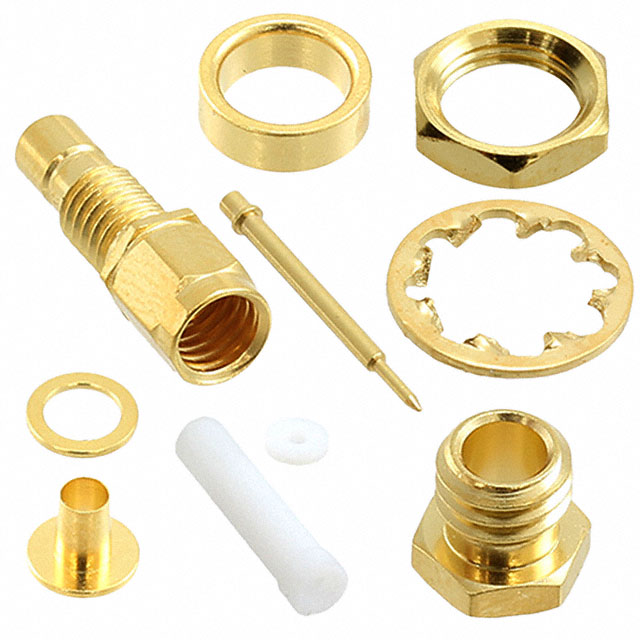

 TE Connectivity AMP Connectors | Gold | Gold | 1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut 1 Ring 1 Washer 2 Insulators | -65 ░C | 165 °C | 0.3 dB | Polytetrafluoroethylene (PTFE) | 335 V | Brass | 500 | 188 316 RG-174 | Clamp | SMB | Beryllium Copper | 50 Ohms | Solder | Snap-On | Bulkhead - Front Side Nut | Panel Mount | 1 | 4 GHz | Gold | Jack Male Pin | |||||||||||||||||||
 TE Connectivity AMP Connectors | Hand Crimper | Side Entry | Coaxial RF Connectors | |||||||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Gold | Gold | 1 Connector 1 End Cap | -65 ░C | 165 °C | 0.1 dB | Polytetrafluoroethylene (PTFE) | 335 V | Brass | 500 | RG-405 (.085" Semi Rigid) | Solder | MCX | Brass | 50 Ohms | Solder | Snap-On | Free Hanging (In-Line) Right Angle | 1 | 6000 MHz | Gold | Plug Male Pin | ||||||||||||||||||||
TE Connectivity AMP Connectors | Nickel | Gold | 1 Connector 1 Contact 1 Ferrule | -65 ░C | 165 °C | 0.1 dB | Polytetrafluoroethylene (PTFE) | 335 V | Beryllium Copper | 500 | 188 316 RG-174 | Crimp | MCX | Brass | 50 Ohms | Crimp | Snap-On | Free Hanging (In-Line) | 1 | 6000 MHz | Silver | Plug Male Pin | ||||||||||||||||||||
TE Connectivity AMP Connectors | Gold | -65 ░C | 125 °C | 0.03 dB | Polytetrafluoroethylene (PTFE) | Stainless Steel | Brass | 50 Ohms | Snap-On Threaded | Free Hanging (In-Line) | 4 GHz | SMB Jack Male Pin | SMA to SMB | Male to Male | Male Pin SMA Plug | Between Series | Straight | Plug to Jack | ||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Nickel | Gold | 1 Connector 1 End Cap | -65 ░C | 165 °C | 0.1 dB | Polytetrafluoroethylene (PTFE) | 335 V | Brass | 500 | 179 187 188 316 RG-174 | Crimp | MCX | Brass | 50 Ohms | Solder | Snap-On | Free Hanging (In-Line) Right Angle | 1 | 6000 MHz | Silver | Plug Male Pin | ||||||||||||||||||||
 TE Connectivity AMP Connectors | Gold | Gold | -65 ░C | 165 °C | 0.1 dB | Polytetrafluoroethylene (PTFE) | 335 V | Brass | 500 | Solder | MCX | Beryllium Copper | 50 Ohms | Solder | Snap-On | Through Hole | 1 | 6000 MHz | Gold | Receptacle Female Socket | ||||||||||||||||||||||
TE Connectivity AMP Connectors | Gold | Gold | 1 Connector 1 End Cap | -65 ░C | 165 °C | 0.1 dB | Polytetrafluoroethylene (PTFE) | 335 V | Brass | 500 | 188 316 RG-174 | Solder | MCX | Brass | 50 Ohms | Solder | Snap-On | Free Hanging (In-Line) Right Angle | 1 | 4 GHz | Gold | Plug Male Pin | ||||||||||||||||||||
TE Connectivity AMP Connectors | Gold | Gold | -65 ░C | 165 °C | 0.3 dB | Polytetrafluoroethylene (PTFE) | 335 V | Stainless Steel | 500 | Solder | SMB | Iron Nickel Alloy | 50 Ohms | Solder | Snap-On | Panel Mount | 1 | 4 GHz | Gold | Receptacle Male Pin | ||||||||||||||||||||||

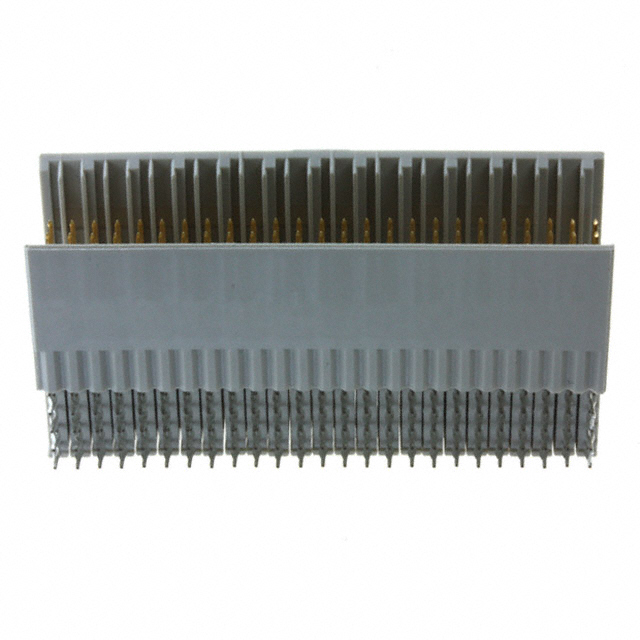

TE Connectivity AMP Connectors | Through Hole | Receptacle Female Sockets | Polyester Thermoplastic Glass Filled | All | 0.1 " | 2.54 mm | 96 | Gold | Press-Fit | 5 |
