DF7 Series

Catalog

CONN HEADER R/A 3POS 3.96MM

Part	Shrouding	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Style	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Insulation Height	Insulation Height	Contact Type	Mounting Type	Insulation Color	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Shape	Material Flammability Rating	Connector Type	Features	Contact Length - Mating	Contact Length - Mating [x]	Contact Material	Termination	Contact Finish - Mating	For Use With/Related Products	Accessory Type	Number of Positions	Mated Stacking Heights	Note	Pitch	Pitch	Color	Contact Termination	Pin or Socket	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish
Hirose Electric Co Ltd DF7-3P-3.96DS(25)	Shrouded - 4 Wall	3.96 mm	0.156 in	Latch Holder	All	Board to Cable/Wire	85 °C	-35 °C	Glass Filled Nylon Polyamide (PA)	7.7 mm	0.303 in	Male Pin	Right Angle Through Hole	Beige	1	0.138 in	3.5 mm	Tin	Square	UL94 V-0	Header	Board Guide	7 mm	0.276 in	Copper Alloy	Solder
Hirose Electric Co Ltd DF7-3P-3.96DS(01)	Shrouded - 4 Wall	3.96 mm	0.156 in	Latch Holder	All	Board to Cable/Wire	85 °C	-35 °C	Glass Filled Nylon Polyamide (PA)	7.7 mm	0.303 in	Male Pin	Right Angle Through Hole	Beige	1	0.138 in	3.5 mm		Square	UL94 V-0	Header	Board Guide	7 mm	0.276 in	Copper Alloy	Solder	Gold

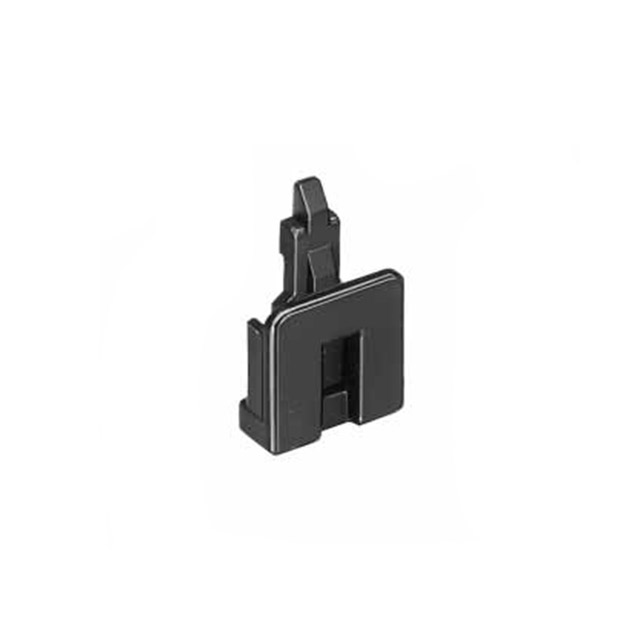

Hirose Electric Co Ltd DF7-1RS/P-3.96																												DF7 Series	Retainer Clip	1
Hirose Electric Co Ltd DF7-9P-3.96DS(26)	Shrouded - 4 Wall	3.96 mm	0.156 in	Latch Holder	All	Board to Cable/Wire	85 °C	-35 °C	Glass Filled Nylon Polyamide (PA)	7.7 mm	0.303 in	Male Pin	Right Angle Through Hole	Beige	1	0.138 in	3.5 mm		Square	UL94 V-0	Header	Board Guide	7 mm	0.276 in	Copper Alloy	Solder	Gold			9

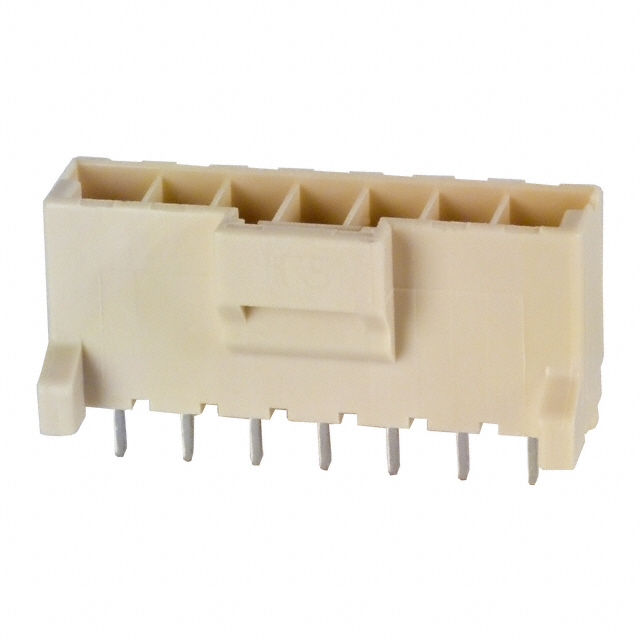

Hirose Electric Co Ltd DF7-7P-3.96DSA(26)	Shrouded - 4 Wall	3.96 mm	0.156 in	Latch Holder	All	Board to Cable/Wire	85 °C	-35 °C	Glass Filled Nylon Polyamide (PA)	12.9 mm	0.508 in	Male Pin	Through Hole	Beige	1	0.138 in	3.5 mm		Square	UL94 V-0	Header	Board Guide	7 mm	0.276 in	Copper Alloy	Solder	Gold			7	21.5 mm
Hirose Electric Co Ltd DF7-7P-3.96DS	Shrouded - 4 Wall	3.96 mm	0.156 in	Latch Holder	All	Board to Cable/Wire	85 °C	-35 °C	Glass Filled Nylon Polyamide (PA)	7.7 mm	0.303 in	Male Pin	Right Angle Through Hole	Beige	1	0.138 in	3.5 mm	Tin	Square	UL94 V-0	Header	Board Guide	7 mm	0.276 in	Copper Alloy	Solder				7

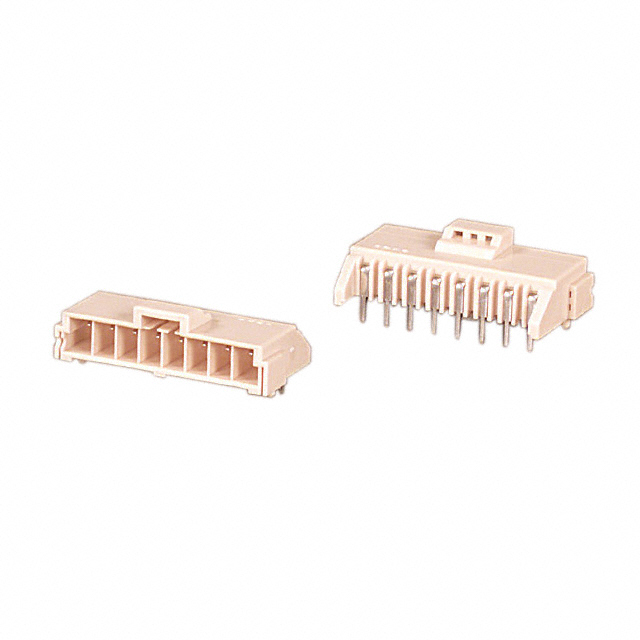

Hirose Electric Co Ltd DF7-8P-3.96DS(25)	Shrouded - 4 Wall	3.96 mm	0.156 in	Latch Holder	All	Board to Cable/Wire	85 °C	-35 °C	Glass Filled Nylon Polyamide (PA)	7.7 mm	0.303 in	Male Pin	Right Angle Through Hole	Beige	1	0.138 in	3.5 mm	Tin	Square	UL94 V-0	Header	Board Guide	7 mm	0.276 in	Copper Alloy	Solder				8
Hirose Electric Co Ltd DF7-3RS/P-3.96																												DF7 Series	Retainer Clip
Hirose Electric Co Ltd DF7-3S-3.96C				Latch Lock								Female Socket	Free Hanging (In-Line)		1						Receptacle											Contacts Not Included	3.96 mm	0.156 in	White	Crimp
Hirose Electric Co Ltd DF7-2022SC																																				Crimp	Socket	22 AWG	19.5 AWG	Tin
