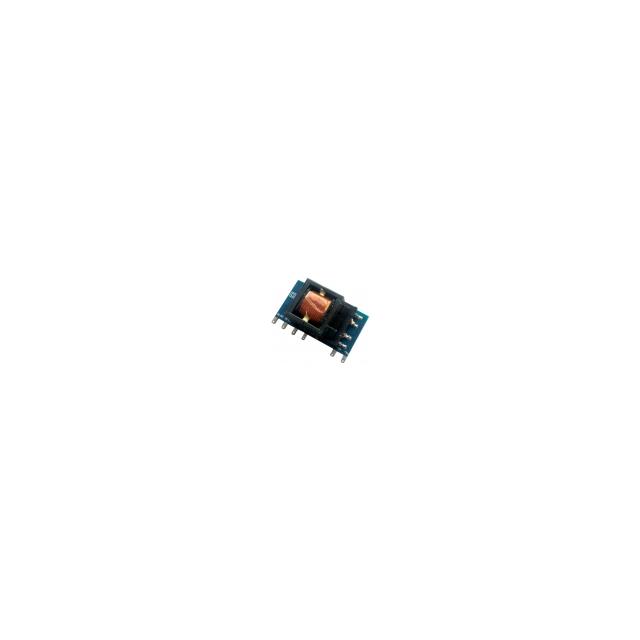

AMEOFL3 Series
Manufacturer: aimtec
Beta
⌘K
AC/DC CONVERTER 12V 3W
| Part | Type | Weight [custom] | Weight [custom] | Number of Outputs | Package / Case | Load Regulation | Mounting Type | Efficiency | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Applications | Current - Output (Max) [Max] | Power (Watts) | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Line Regulation | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | Open Frame | 0.008 lb | 3.5 g | 1 | 6-SIP Module | 3 % | Through Hole | 77 % | 0.61 in | 15.4 mm | 1.04 in | 26.4 mm | 12 mm | 0.47 " | Household Appliances ITE (Commercial) | 250 mA | 3 W | 60335-1 62368-1 | -40 °C | 85 °C | 1.5 % | 12 V | 70 VDC 85 VAC | 305 VAC 430 VDC |
