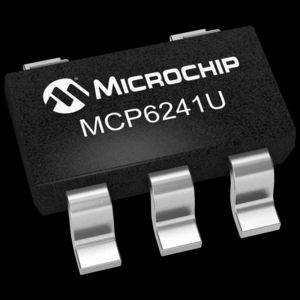

MCP6241U Series

50 µA, 550 kHz Rail-to-Rail Op Amp

Catalog

50 µA, 550 kHz Rail-to-Rail Op Amp

Part	Package / Case	Package / Case [custom]	Package / Case	Amplifier Type	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Slew Rate	Supplier Device Package	Current - Input Bias	Mounting Type	Number of Circuits	Voltage - Supply Span (Min) [Min]	Current - Output / Channel	Voltage - Supply Span (Max) [Max]	Gain Bandwidth Product	Package / Case [y]	Package / Case [x]	Package / Case
Microchip Technology MCP6241T-E/MS	8-MSOP 8-TSSOP	0.118 in	3 mm	General Purpose	Rail-to-Rail	125 °C	-40 °C	50 µA	0.3 V/Ás	8-MSOP	1 pA	Surface Mount	1	1.8 V	23 mA	5.5 V	550 kHz
Microchip Technology MCP6241UT-E/LT	5-TSSOP SC-70-5 SOT-353			General Purpose	Rail-to-Rail	125 °C	-40 °C	50 µA	0.3 V/Ás	SC-70-5	1 pA	Surface Mount	1	1.8 V	23 mA	5.5 V	550 kHz
Microchip Technology MCP6241-E/MS	8-MSOP 8-TSSOP	0.118 in	3 mm	General Purpose	Rail-to-Rail	125 °C	-40 °C	50 µA	0.3 V/Ás	8-MSOP	1 pA	Surface Mount	1	1.8 V	23 mA	5.5 V	550 kHz
Microchip Technology MCP6241-E/MC	8-VFDFN Exposed Pad			General Purpose	Rail-to-Rail	125 °C	-40 °C	50 µA	0.3 V/Ás	8-DFN (2x3)	1 pA	Surface Mount	1	1.8 V		5.5 V	550 kHz
Microchip Technology MCP6241T-E/SN	8-SOIC			General Purpose	Rail-to-Rail	125 °C	-40 °C	50 µA	0.3 V/Ás	8-SOIC	1 pA	Surface Mount	1	1.8 V	23 mA	5.5 V	550 kHz	3.9 mm	0.154 in
Microchip Technology MCP6241UT-E/OT	SC-74A SOT-753			General Purpose	Rail-to-Rail	125 °C	-40 °C	50 µA	0.3 V/Ás	SOT-23-5	1 pA	Surface Mount	1	1.8 V	23 mA	5.5 V	550 kHz
Microchip Technology MCP6241T-E/OT	SC-74A SOT-753			General Purpose	Rail-to-Rail	125 °C	-40 °C	50 µA	0.3 V/Ás	SOT-23-5	1 pA	Surface Mount	1	1.8 V	23 mA	5.5 V	550 kHz
Microchip Technology MCP6241-E/P	8-DIP		0.3 in	General Purpose	Rail-to-Rail	125 °C	-40 °C	50 µA	0.3 V/Ás	8-PDIP	1 pA	Through Hole	1	1.8 V	23 mA	5.5 V	550 kHz			7.62 mm

Catalog

50 µA, 550 kHz Rail-to-Rail Op Amp

Key Features

• * Gain Bandwidth Product (GBWP): 550 kHz

• * Quiescent Current: 50 µA (typ.)

• * Supply voltage range: 1.8V to 5.5V

• * Rail to Rail Input and Output

• * Extended Temperature Range

• * MCP6241 available in S, R and U pin outs

• * Space Saving Package Offering

Description

MCP6241/1R/1U/2/4 family of operational amplifier (Op Amp) provides wide bandwidth for the quiescent current. These devices have a 550 kHz Gain Bandwidth Product (GBWP) and 68° (typ.) phase margin. These op amps operate from a single supply voltage as low as 1.8V, while drawing 50 µA (typ.) quiescent current. In addition, these devices support rail-to-rail input and output swing, with a common mode input voltage range of VDD +300 mV to VSS -300 mV. They are designed in one of Microchip's advanced CMOS processes and operate in the Extended Temperature range of -40°C to +125°C. It has a power supply range of 1.8V to 5.5V
