HRMJ-SMA Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

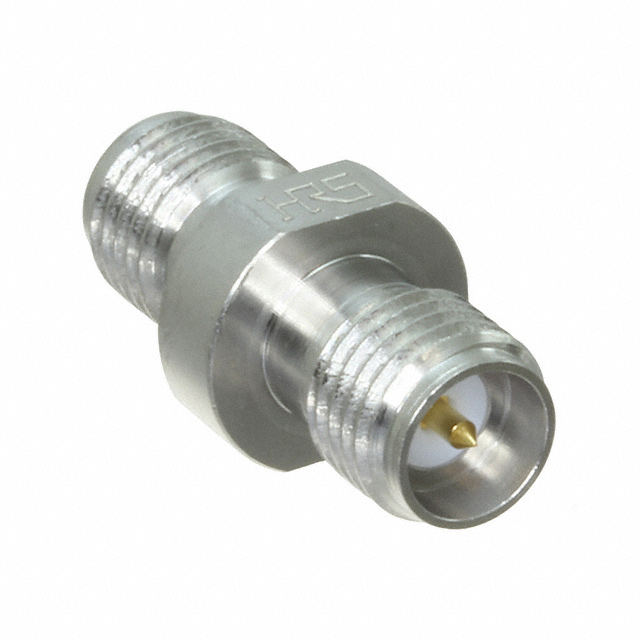

COAX ADAPT SMA TO RP-SMA
| Part | Center Contact Material | Body Material | Body Finish | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Convert From (Adapter End) | Mounting Type | Convert To (Adapter End) | Conversion Type | Adapter Type | Center Contact Plating | Adapter Series | Style | Impedance | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Beryllium Copper | Stainless Steel | Gold Passivated | 1000 | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Female Socket SMA Jack | Free Hanging (In-Line) | RP-SMA Jack Male Pin | Between Series | Jack to Jack | Gold | SMA to RP-SMA | Straight | 50 Ohms | 26.5 GHz |
