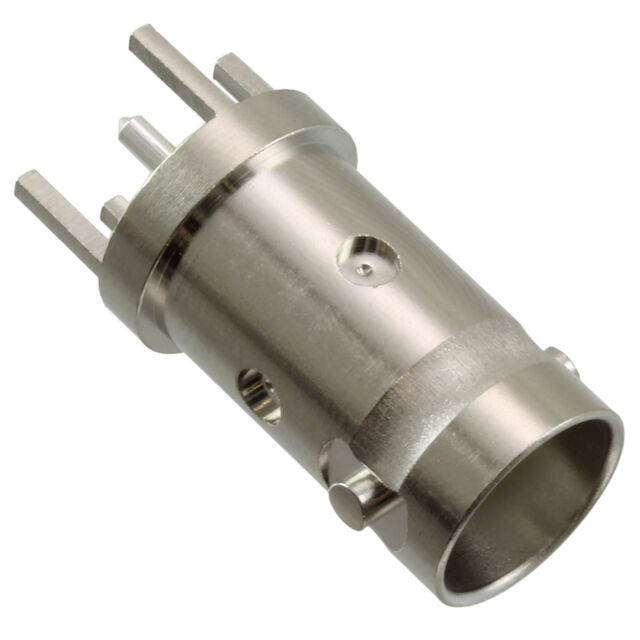

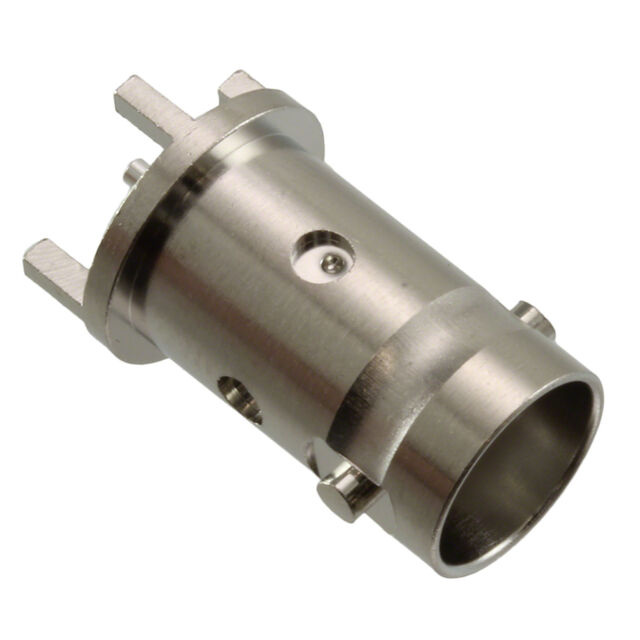

BNC-R-PC Series
Manufacturer: Hirose Electric Co Ltd
Catalog
CONN BNC RCPT STR 50 OHM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Mating Cycles | Dielectric Material | Body Material | Body Finish | Mounting Type | Connector Style | Housing Color | Center Contact Material | Number of Ports | Impedance | Connector Type | Shield Termination | Frequency - Max [Max] | Contact Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | -55 C | 85 °C | Silver | 5000 | Polytetrafluoroethylene (PTFE) | Brass | Nickel | Through Hole | BNC | Silver | Beryllium Copper | 1 | 50 Ohms | Female Socket Jack | Solder | 2 GHz | Solder | Bayonet Lock |
 Hirose Electric Co Ltd | -55 C | 85 °C | Gold | 1000 | Polytetrafluoroethylene (PTFE) | Brass | Nickel | Through Hole | BNC | Silver | Beryllium Copper | 1 | 50 Ohms | Female Socket Jack | Solder | 2 GHz | Solder | Bayonet Lock |
 Hirose Electric Co Ltd | -55 C | 85 °C | Silver | 5000 | Polytetrafluoroethylene (PTFE) | Brass | Nickel | Through Hole | BNC | Silver | Beryllium Copper | 1 | 50 Ohms | Female Socket Jack | Solder | 2 GHz | Solder | Bayonet Lock |
Hirose Electric Co Ltd | -55 C | 85 °C | Gold | 5000 | Polytetrafluoroethylene (PTFE) | Brass | Nickel | Through Hole | BNC | Silver | Beryllium Copper | 1 | 50 Ohms | Female Socket Jack | Solder | 2 GHz | Solder | Bayonet Lock |
