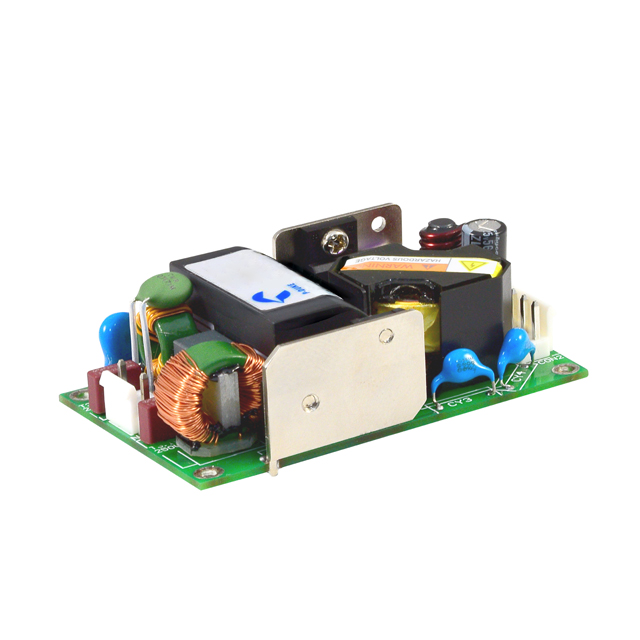

MAD40US12 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
AC/DC CONVERTER 12V 40W
| Part | Minimum Load Required | Voltage - Isolation | Approval Agency | Standard Number | Voltage - Output 1 | Current - Output 1 | Size / Dimension Width | Size / Dimension Height | Size / Dimension Length | Power (Watts) | Number of Outputs | Features | Type | Voltage - Input (AC) Minimum | Voltage - Input (DC) Minimum | Voltage - Input (AC) Maximum | Voltage - Input (DC) Maximum | Efficiency | Operating Temperature (Max) | Operating Temperature (Min) | Applications | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | No | 4000 Vpk | CB CE cURus FCC | 60601-1 60950-1 62368-1 | 12 V | 3.34 A | 2 in | 0.94 in | 3 in | 40 W | 1 | Adjustable Output Universal Input | Open Frame | 85 VAC | 120 V | 264 V | 370 V | 92 % | 85 °C | -40 °C | ITE (Commercial) Medical | Chassis Mount |
