THM 30 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Traco Power

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Efficiency	Number of Outputs	Voltage - Output 1	Features	Size / Dimension	Applications	Mounting Type	Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Package / Case	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Power (Watts)	Current - Output (Max)	Voltage - Output 2
Traco Power THM 30-2413WI	89 %	1	15 V	OCP OTP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	Medical	Through Hole	Isolated Module	36 V	5000 V	5-DIP Module	2 A	80 ¯C	-40 °C	9 V	30 Watts

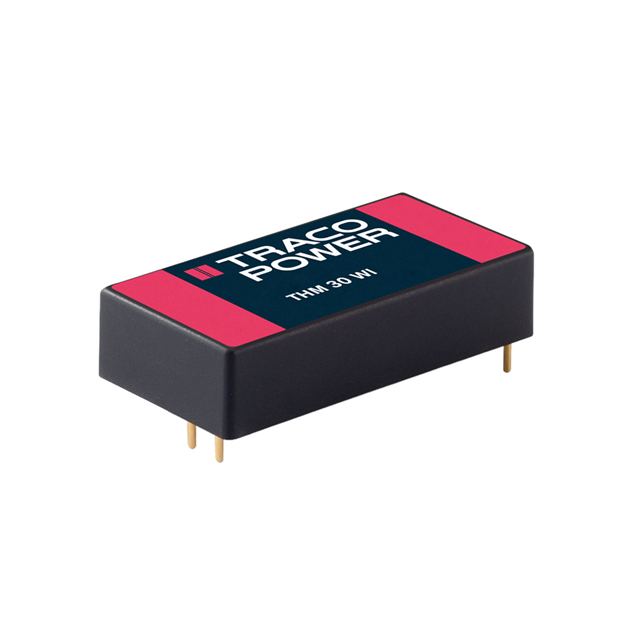

Traco Power THM 30-4813WI	89 %	1	15 V	OCP OTP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	Medical	Through Hole	Isolated Module	75 V	5000 V	5-DIP Module	2 A	80 ¯C	-40 °C	18 V	30 Watts
Traco Power THM 30-1212	88.5 %	1	12 V	OCP OTP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	Medical	Through Hole	Isolated Module	18 V	5000 V	5-DIP Module	2.5 A	80 ¯C	-40 °C	9 V	30 Watts
Traco Power THM 30-2413	90 %	1	15 V	OCP OTP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	Medical	Through Hole	Isolated Module	36 V	5000 V	5-DIP Module	2 A	80 ¯C	-40 °C	18 V	30 Watts
Traco Power THM 30-4823	89 %	2	15 V	OCP OTP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	Medical	Through Hole	Isolated Module	75 V	5000 V	5-DIP Module		80 ¯C	-40 °C	36 V	30 Watts	1 A	-15 V
Traco Power THM 30-1222	88.5 %	2	12 V	OCP OTP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	Medical	Through Hole	Isolated Module	18 V	5000 V	5-DIP Module		80 ¯C	-40 °C	9 V	30 Watts	1.25 A	-12 V
Traco Power THM 30-2411	88 %	1	5 V	OCP OTP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	Medical	Through Hole	Isolated Module	36 V	5000 V	5-DIP Module	6 A	80 ¯C	-40 °C	18 V	30 Watts
Traco Power THM 30-2412	89 %	1	12 V	OCP OTP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	Medical	Through Hole	Isolated Module	36 V	5000 V	5-DIP Module	2.5 A	80 ¯C	-40 °C	18 V	30 Watts

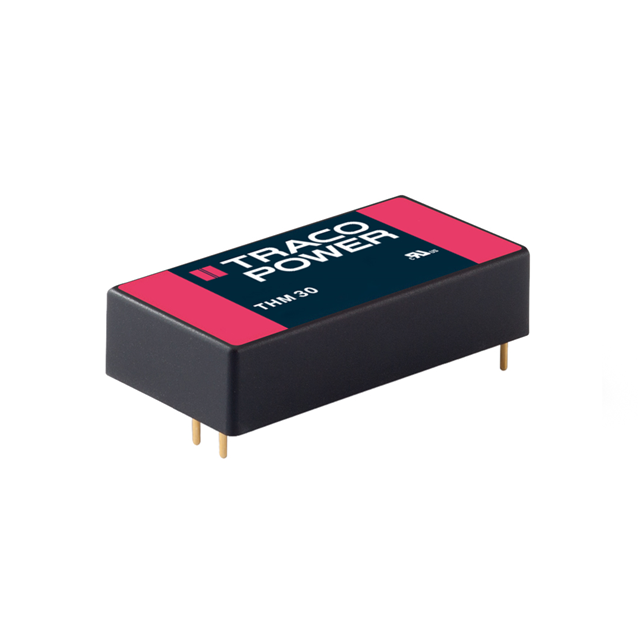

Traco Power THM 30-1223	88.5 %	2	15 V	OCP OTP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	Medical	Through Hole	Isolated Module	18 V	5000 V	5-DIP Module		80 ¯C	-40 °C	9 V	30 Watts	1 A	-15 V
Traco Power THM 30-4821	86.5 %	2	5 V	OCP OTP OVP SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	Medical	Through Hole	Isolated Module	75 V	5000 V	5-DIP Module		80 ¯C	-40 °C	36 V	30 Watts	3 A	-5 V
