VIPER35 Series

Catalog

VIPERPLUS FAMILY: QUASI-RESONANT HIGH PERFORMANCE OFF LINE HIGH VOLTAGE CONVERTER

Part	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Frequency - Switching	Voltage - Breakdown	Fault Protection	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Voltage - Start Up	Mounting Type	Output Isolation	Package / Case	Package / Case
STMicroelectronics VIPER35HD	16-SO	23.5 V	8.5 V	225 kHz	800 V	Current Limiting Over Temperature Over Voltage Short Circuit	Flyback	-40 °C	150 °C	22 W	14 V	Surface Mount	Isolated	16-SOIC	0.154 in 3.9 mm
STMicroelectronics VIPER35LDTR	16-SO	23.5 V	8.5 V	136 kHz	800 V	Current Limiting Over Temperature Over Voltage Short Circuit	Flyback	-40 °C	150 °C	22 W	14 V	Surface Mount	Isolated	16-SOIC	0.154 in 3.9 mm
STMicroelectronics VIPER35LD	16-SO	23.5 V	8.5 V	136 kHz	800 V	Current Limiting Over Temperature Over Voltage Short Circuit	Flyback	-40 °C	150 °C	22 W	14 V	Surface Mount	Isolated	16-SOIC	0.154 in 3.9 mm

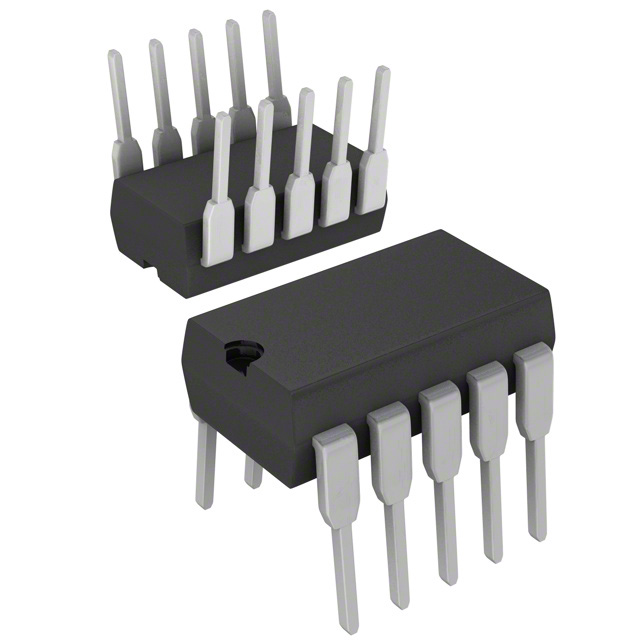

STMicroelectronics VIPER35HE	10-SDIP	23.5 V	8.5 V	225 kHz	800 V	Current Limiting Over Temperature Over Voltage Short Circuit	Flyback	-40 °C	150 °C	22 W	14 V	Through Hole	Isolated	10-DIP (0.300" 7.62mm)
STMicroelectronics VIPER35HDTR	16-SO	23.5 V	8.5 V	225 kHz	800 V	Current Limiting Over Temperature Over Voltage Short Circuit	Flyback	-40 °C	150 °C	22 W	14 V	Surface Mount	Isolated	16-SOIC	0.154 in 3.9 mm
