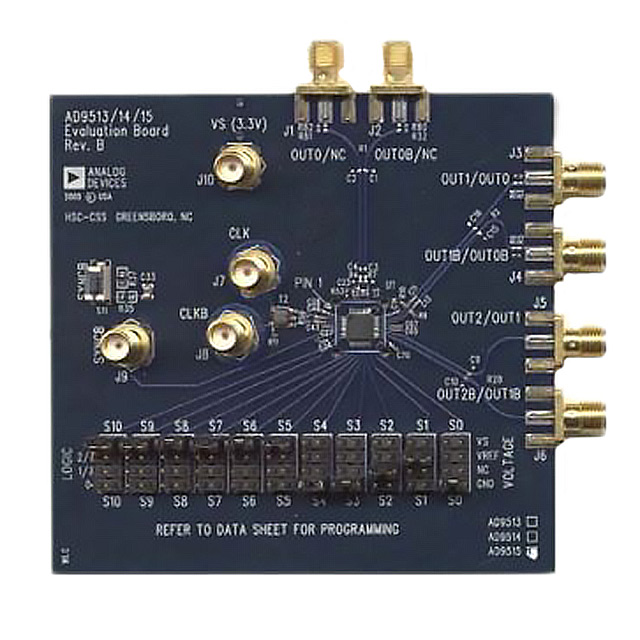

AD9514 LOGIC AND TIMING EVALUATION BOARD
| Part | Supplied Contents | Utilized IC / Part | Type | Function | Voltage - Supply [Max] | Voltage - Supply [Min] | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Package / Case | Input | Ratio - Input:Output [custom] | Supplier Device Package | Frequency - Max [Max] | Number of Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | Board(s) | AD9514 | Timing | Clock Distribution | |||||||||||||
 Analog Devices | Divider Fanout Buffer (Distribution) | 3.465 V | 3.135 V | 32-VFQFN Exposed Pad CSP | Clock | 1:3 | 32-LFCSP-VQ (5x5) | 1.6 GHz | 1 | 85 °C | -40 °C | Surface Mount |
