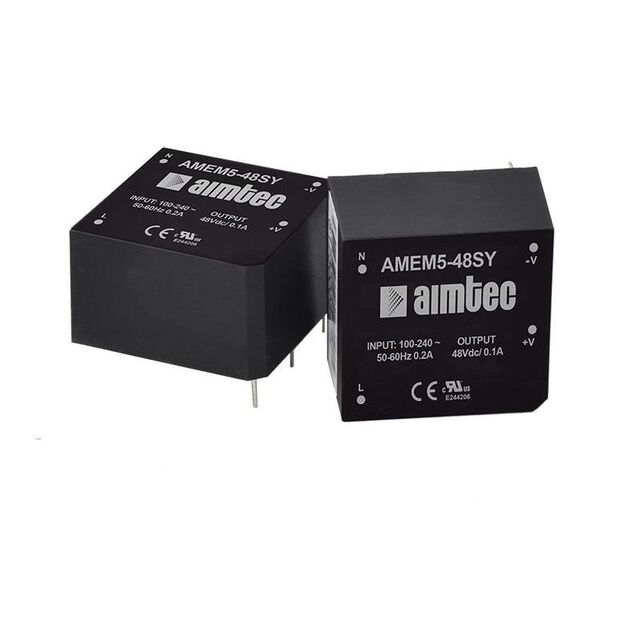

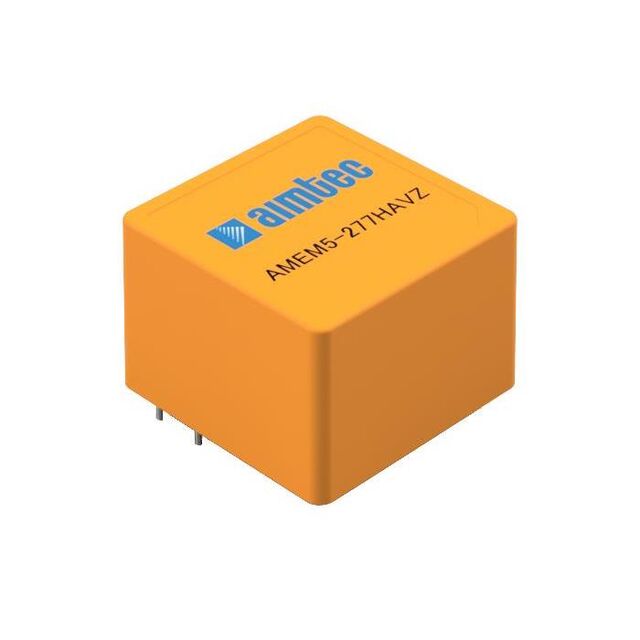

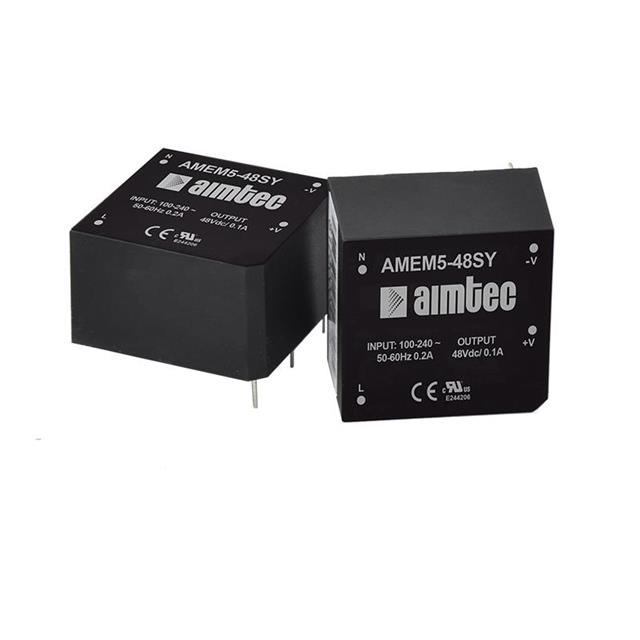

AMEM5 Series
Manufacturer: aimtec
Beta
⌘K
AC/DC CONVERTER 5V 5W
| Part | Approval Agency | Load Regulation | Line Regulation | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Max] | Standard Number | Current - Output (Max) [Max] | Features | Package / Case | Number of Outputs | Type | Voltage - Output 1 | Applications | Mounting Type | Efficiency | Power (Watts) | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | CE CE cURus cULus cURus EN IEC UL | ±1% | 1 % | 85 VAC 120 VDC | 264 VAC 370 VDC | 25.4 mm | 1 " | 25.4 mm | 1 in | 15.2 mm | 0.6 " | -25 °C | 70 °C | 62368-1 | 1 A | Universal Input | 5-DIP Module | 1 | Enclosed | 5 V | ITE (Commercial) | Through Hole | 74 % | 5 W | ||
 aimtec | CE cURus EN IEC UL | ±1% | 0.5 % | 85 VAC 100 V | 305 VAC 430 VDC | 25.4 mm | 1 " | 25.4 mm | 1 in | 15.2 mm 17.6 mm | 0.6 " 0.69 in | -40 °C | 85 °C | 60335-1 61558-1 62368-1 | 1.515 A | DC Input Capable Universal Input | 5-DIP Module 4 Leads | 1 | Enclosed | 3.3 V | Household Appliances ITE (Commercial) | Through Hole | 71.5 % 72 % | 5 W | 18 g | 0.04 lb |
 aimtec | CE cURus EN IEC UL | ±1% | 0.5 % | 85 VAC 100 V | 305 VAC 430 VDC | 25.4 mm | 1 " | 25.4 mm | 1 in | 17.6 mm | 0.69 in | -40 °C | 85 °C | 60335-1 61558-1 62368-1 | 208 mA | 5-DIP Module 4 Leads | 1 | Enclosed | 24 V | Household Appliances ITE (Commercial) | Through Hole | 81.5 % | 5 W | 18.5 g | 0.041 lb | |
aimtec | CE cURus EN IEC UL | ±1% | 0.5 % | 85 VAC 100 V | 305 VAC 430 VDC | 25.4 mm | 1 " | 25.4 mm | 1 in | 17.6 mm | 0.69 in | -40 °C | 85 °C | 60335-1 61558-1 62368-1 | 555 mA | 5-DIP Module 4 Leads | 1 | Enclosed | 9 V | Household Appliances ITE (Commercial) | Through Hole | 80.5 % | 5 W | 18 g | 0.04 lb | |
aimtec | CE cURus EN IEC UL | ±1% | 0.5 % | 85 VAC 100 V | 305 VAC 430 VDC | 25.4 mm | 1 " | 25.4 mm | 1 in | 17.6 mm | 0.69 in | -40 °C | 85 °C | 60335-1 61558-1 62368-1 | 416 mA | 5-DIP Module 4 Leads | 1 | Enclosed | 12 V | Household Appliances ITE (Commercial) | Through Hole | 80.5 % | 5 W | 18 g | 0.04 lb | |
aimtec | CE cURus EN IEC UL | ±1% | 0.5 % | 85 VAC 100 V | 305 VAC 430 VDC | 25.4 mm | 1 " | 25.4 mm | 1 in | 17.6 mm | 0.69 in | -40 °C | 85 °C | 60335-1 61558-1 62368-1 | 1 A | 5-DIP Module 4 Leads | 1 | Enclosed | 5 V | Household Appliances ITE (Commercial) | Through Hole | 77.5 % | 5 W | 18 g | 0.04 lb | |
 aimtec | CE CE cURus cULus cURus EN IEC UL | ±1% | 1 % | 85 VAC 120 VDC | 264 VAC 370 VDC | 25.4 mm | 1 " | 25.4 mm | 1 in | 15.2 mm | 0.6 " | -25 °C | 70 °C | 62368-1 | 410 mA | Universal Input | 5-DIP Module | 1 | Enclosed | 12 V | ITE (Commercial) | Through Hole | 77.6 % | 4.9 W | 18.5 g | 0.041 lb |
aimtec | CE cULus cURus EN IEC UL | ±1% | 1 % | 25.4 mm | 1 " | 25.4 mm | 1 in | 15.2 mm | 0.6 " | -25 °C | 70 °C | 62368-1 | 200 mA | Universal Input | 5-DIP Module | 1 | Enclosed | 24 V | ITE (Commercial) | Through Hole | 78 % | 5 W | 18.5 g | 0.041 lb | ||
aimtec | CE cURus EN IEC UL | ±1% | 0.5 % | 85 VAC 100 V | 305 VAC 430 VDC | 25.4 mm | 1 " | 25.4 mm | 1 in | 17.6 mm | 0.69 in | -40 °C | 85 °C | 60335-1 61558-1 62368-1 | 333 mA | 5-DIP Module 4 Leads | 1 | Enclosed | 15 V | Household Appliances ITE (Commercial) | Through Hole | 81.5 % | 5 W | 18.5 g | 0.041 lb |
