Z-01H Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH PNL MNT CRSS RLR PLUNGR

Part	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Termination Style	Circuit	Switch Function	Pretravel	Pretravel	Operating Force	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Type	Mechanical Life	Differential Travel	Differential Travel	Operating Position	Operating Position	Release Force	Overtravel [custom]	Overtravel [custom]	Operating Force [Max]	Operating Force [Min]

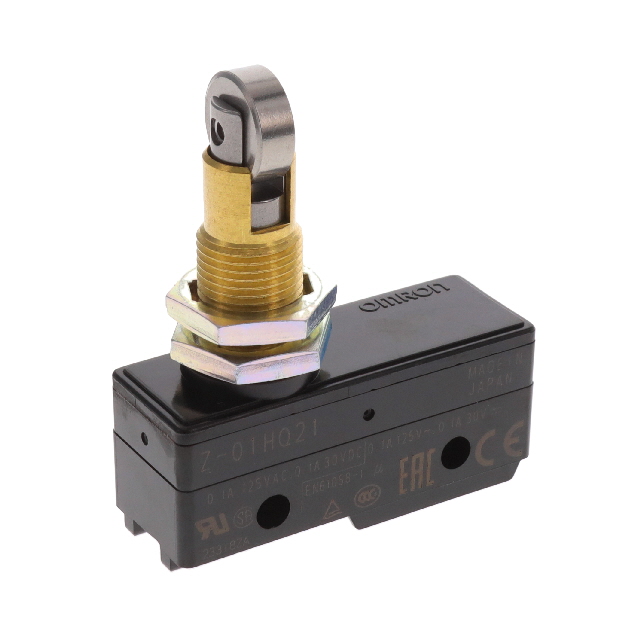

Omron Automation and Safety Z-01HQ21	125 V	30 V	Cross Roller Plunger	100 mA
Omron Automation and Safety Z-01HNJ155-M19R3EA-K	125 V	30 V	Rod Spring	100 mA	Cable Leads	SPDT	On-Mom	0.787 in	20 mm	50 gf	100000 Cycles	-15 °C	80 °C	IP62	Chassis Mount	1000000 Cycles

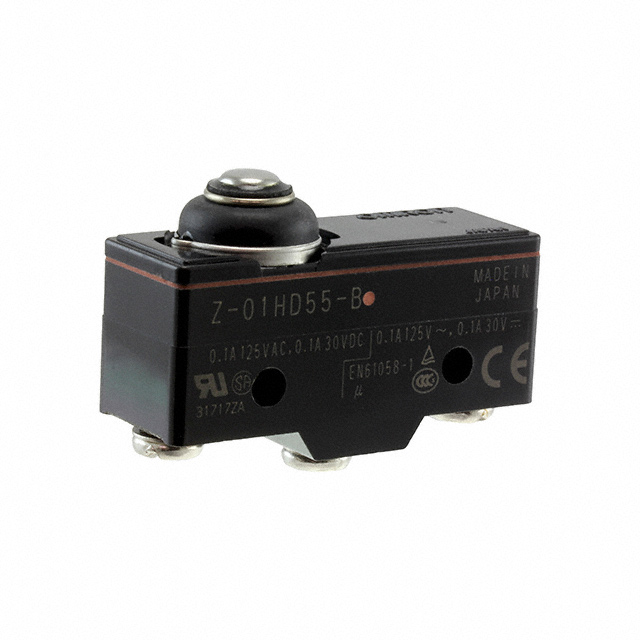

Omron Automation and Safety Z-01HD55-B	125 V	30 V	Round (Pin Plunger)	100 mA	Screw Terminal	SPDT	On-Mom	0.075 in	1.9 mm	370 gf	500000 Cycles	-15 °C	80 °C	IP62	Chassis Mount	20000000 Cycles	0.05 mm	0.002 in	21.5 mm	0.846 in	80 gf	0.062 "	1.6 mm

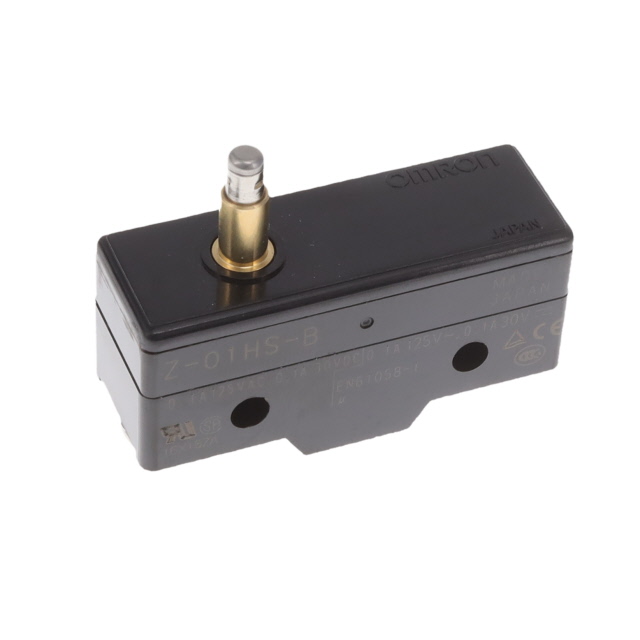

Omron Automation and Safety Z-01HS-B	125 V	30 V	Round (Pin Plunger)	100 mA	Screw Terminal	SPDT	On-Mom	0.02 in	0.5 mm	0.25 kgf	500000 Cycles	-25 °C	80 °C	IP00	Chassis Mount	20000000 Cycles	0.05 mm	0.002 in	28.2 mm	1.11 in	80 gf	0.062 "	1.6 mm
Omron Automation and Safety Z-01HW22S55-B	125 V	30 V	Lever Roller	100 mA	Screw Terminal	SPDT	On-Mom					-15 °C	80 °C	IP62	Chassis Mount
Omron Automation and Safety Z-01HQ55-B

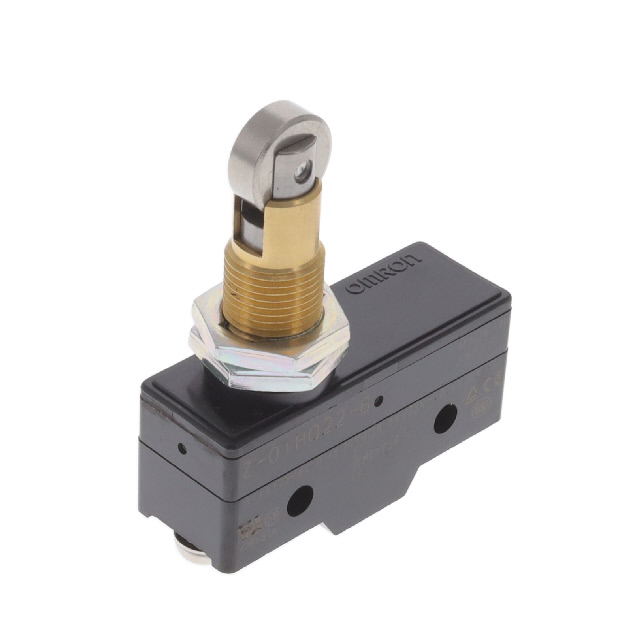

Omron Automation and Safety Z-01HQ22-B	125 V	30 V	Roller Plunger	100 mA	Screw Terminal	SPDT	On-Mom	0.012 in	0.3 mm		500000 Cycles	-25 °C	80 °C	IP00	Panel Mount	20000000 Cycles	0.025 mm	0.001 in	33.4 mm	1.313 in	114 gf	0.141 "	3.6 mm	285 gf	200 gf
Omron Automation and Safety Z-01HDA55-B5V
Omron Automation and Safety Z-01HW21-B
