C2104A Series

Catalog

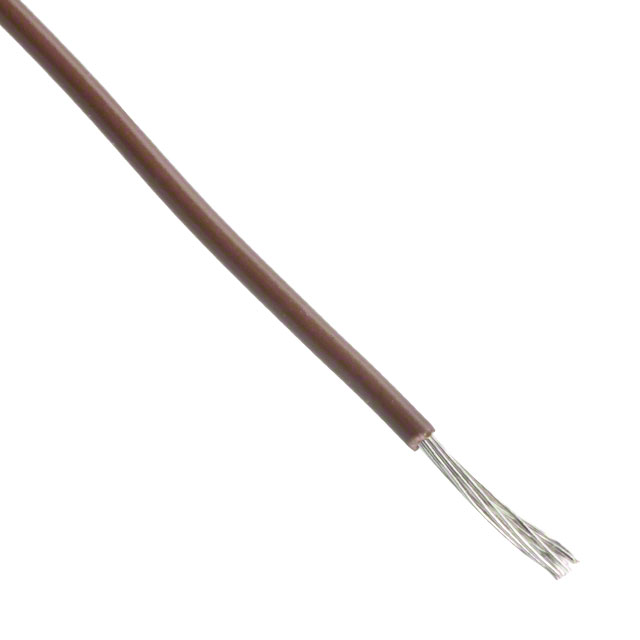

HOOK-UP STRND 16AWG BROWN 1000'

Part	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Jacket Color	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Wire Gauge	Cable Type	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
Prysmian Group C2104A.21.08	600 V	0.81 mm	0.032 in	304.8 m	1000 ft	Brown	ASTM B-33 UL Style 1015	3.15 mm	0.124 in	30 AWG	26	Poly-Vinyl Chloride (PVC)	16 AWG	Hook-Up	Copper Annealed Tinned	-20 ░C	105 ░C
Prysmian Group C2104A.21.07	600 V	0.81 mm	0.032 in	304.8 m	1000 ft	Blue	ASTM B-33 UL Style 1015	3.15 mm	0.124 in	30 AWG	26	Poly-Vinyl Chloride (PVC)	16 AWG	Hook-Up	Copper Annealed Tinned	-20 ░C	105 ░C
Prysmian Group C2104A.12.10	600 V	0.81 mm	0.032 in			Gray	ASTM B-33 UL Style 1015	3.15 mm	0.124 in	30 AWG	26	Poly-Vinyl Chloride (PVC)	16 AWG	Hook-Up	Copper Annealed Tinned	-20 ░C	105 ░C	100 ft	30.5 m
Prysmian Group C2104A.12.08	600 V	0.81 mm	0.032 in			Brown	ASTM B-33 UL Style 1015	3.15 mm	0.124 in	30 AWG	26	Poly-Vinyl Chloride (PVC)	16 AWG	Hook-Up	Copper Annealed Tinned	-20 ░C	105 ░C	100 ft	30.5 m
Prysmian Group C2104A.21.06	600 V	0.81 mm	0.032 in	304.8 m	1000 ft	Green	ASTM B-33 UL Style 1015	3.15 mm	0.124 in	30 AWG	26	Poly-Vinyl Chloride (PVC)	16 AWG	Hook-Up	Copper Annealed Tinned	-20 ░C	105 ░C
Prysmian Group C2104A.12.03	600 V	0.81 mm	0.032 in			Red	ASTM B-33 UL Style 1015	3.15 mm	0.124 in	30 AWG	26	Poly-Vinyl Chloride (PVC)	16 AWG	Hook-Up	Copper Annealed Tinned	-20 ░C	105 ░C	100 ft	30.5 m
Prysmian Group C2104A.12.06	600 V	0.81 mm	0.032 in			Green	ASTM B-33 UL Style 1015	3.15 mm	0.124 in	30 AWG	26	Poly-Vinyl Chloride (PVC)	16 AWG	Hook-Up	Copper Annealed Tinned	-20 ░C	105 ░C	100 ft	30.5 m
Prysmian Group C2104A.21.07	600 V	0.81 mm	0.032 in	304.8 m	1000 ft	Blue	ASTM B-33 UL Style 1015	3.15 mm	0.124 in	30 AWG	26	Poly-Vinyl Chloride (PVC)	16 AWG	Hook-Up	Copper Annealed Tinned	-20 ░C	105 ░C
Prysmian Group C2104A.21.19	600 V	0.81 mm	0.032 in	304.8 m	1000 ft	Violet	ASTM B-33 UL Style 1015	3.15 mm	0.124 in	30 AWG	26	Poly-Vinyl Chloride (PVC)	16 AWG	Hook-Up	Copper Annealed Tinned	-20 ░C	105 ░C
Prysmian Group C2104A.12.03	600 V	0.81 mm	0.032 in			Red	ASTM B-33 UL Style 1015	3.15 mm	0.124 in	30 AWG	26	Poly-Vinyl Chloride (PVC)	16 AWG	Hook-Up	Copper Annealed Tinned	-20 ░C	105 ░C	100 ft	30.5 m
