HK-A Series

Attenuators - Interconnects

Manufacturer: Hirose Electric Co Ltd

Catalog

Attenuators - Interconnects

Catalog

Attenuators - Interconnects

Part	Package / Case	Power (Watts)	Frequency Range [Min]	Frequency Range [Max]	Attenuation Value	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Material	Dielectric Material	Mating Cycles	Conversion Type	Adapter Type	Center Contact Plating	Frequency - Max [Max]	Mounting Type	Adapter Series [Min]	Adapter Series [Max]	Center Gender	Convert From (Adapter End)	Convert From (Adapter End)	Style	Convert To (Adapter End)	Convert From (Adapter End)	Convert To (Adapter End)

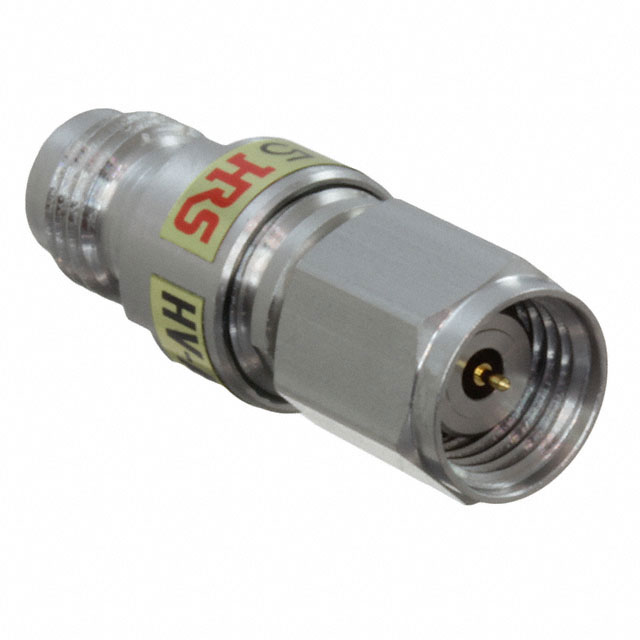

Hirose Electric Co Ltd HK-AT(20)-PJ	2.92mm In-Line Module	1 W	0 Hz	40 GHz	20 dB	50 Ohms
Hirose Electric Co Ltd HK-AT(10)-PJ	2.92mm In-Line Module	1 W	0 Hz	40 GHz	10 dB	50 Ohms
Hirose Electric Co Ltd HK-AT(4)-PJ	2.92mm In-Line Module	1 W	0 Hz	40 GHz	4 dB	50 Ohms
Hirose Electric Co Ltd HK-AT(0)-PJ	2.92mm In-Line Module	1 W	0 Hz	40 GHz	0 dB	50 Ohms
Hirose Electric Co Ltd HK-AT(1)-PJ	2.92mm In-Line Module	1 W	0 Hz	40 GHz	1 dB	50 Ohms
Hirose Electric Co Ltd HK-AT(7)-PJ	2.92mm In-Line Module	1 W	0 Hz	40 GHz		50 Ohms
Hirose Electric Co Ltd HK-AT(2)-PJ	2.92mm In-Line Module	1 W	0 Hz	40 GHz	2 dB	50 Ohms
Hirose Electric Co Ltd HK-A-PP						50 Ohms	-55 C	105 ░C	Stainless Steel	Beryllium Copper Phosphor Bronze	Polyphenylene Oxide (PPO) Polytetrafluoroethylene (PTFE)	1000	Same Series	Plug to Plug	Gold	40 GHz	Free Hanging (In-Line)	2.92 mm	2.92 mm	Male to Male	Plug Male Pin	2.92 mm	Straight	2.92mm (OS-2.9) Plug Male Pin
Hirose Electric Co Ltd HK-AT(6)-PJ	2.92mm In-Line Module	1 W	0 Hz	40 GHz	6 dB	50 Ohms

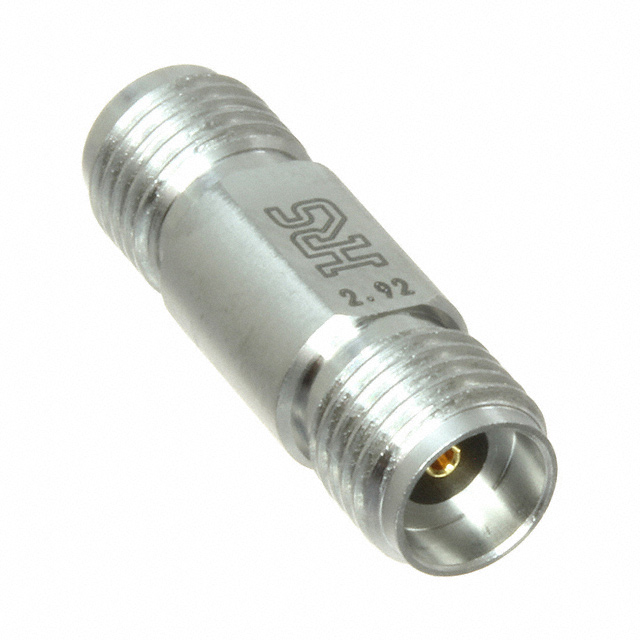

Hirose Electric Co Ltd HK-A-JJ						50 Ohms	-55 C	105 ░C	Stainless Steel	Beryllium Copper	Polyphenylene Oxide (PPO) Polytetrafluoroethylene (PTFE)	1000	Same Series	Jack to Jack	Gold	40 GHz	Free Hanging (In-Line)	2.92 mm	2.92 mm	Female to Female	Jack Female Socket	2.92 mm	Straight	Jack Female Socket	OS-2.9	2.92 mm
