HMHAA280 Series

4-Pin Half Pitch MFP AC Input Phototransistor Output Optocoupler

Catalog

4-Pin Half Pitch MFP AC Input Phototransistor Output Optocoupler

Part	Mounting Type	Package / Case [y]	Package / Case	Package / Case [x]	Voltage - Forward (Vf) (Typ) [Max]	Supplier Device Package	Number of Channels	Operating Temperature [Max]	Operating Temperature [Min]	Current Transfer Ratio (Min) [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current Transfer Ratio (Max) [Max]	Voltage - Isolation	Current - Output / Channel	Vce Saturation (Max) [Max]	Output Type	Current - DC Forward (If) (Max)
ON Semiconductor HMHAA280R2	Surface Mount	4.4 mm	4-SOIC	0.173 in	1.4 V	4-Mini-Flat	1	100 °C	-55 °C	50 %	3 µs	3 µs	600 %	3750 Vrms	50 mA	400 mV	1.81 mOhm	50 mA
ON Semiconductor HMHAA280R1	Surface Mount	4.4 mm	4-SOIC	0.173 in	1.4 V	4-Mini-Flat	1	100 °C	-55 °C	50 %	3 µs	3 µs	600 %	3750 Vrms	50 mA	400 mV	1.81 mOhm	50 mA
ON Semiconductor HMHAA280V	Surface Mount	4.4 mm	4-SOIC	0.173 in	1.4 V	4-Mini-Flat	1	100 °C	-55 °C	50 %	3 µs	3 µs	600 %	3750 Vrms	50 mA	400 mV	1.81 mOhm	50 mA
ON Semiconductor HMHAA280	Surface Mount	4.4 mm	4-SOIC	0.173 in	1.4 V	4-Mini-Flat	1	100 °C	-55 °C	50 %	3 µs	3 µs	600 %	3750 Vrms	50 mA	400 mV	1.81 mOhm	50 mA
ON Semiconductor HMHAA280R3V	Surface Mount	4.4 mm	4-SOIC	0.173 in	1.4 V	4-Mini-Flat	1	100 °C	-55 °C	50 %	3 µs	3 µs	600 %	3750 Vrms	50 mA	400 mV	1.81 mOhm	50 mA
ON Semiconductor HMHAA280R4	Surface Mount	4.4 mm	4-SOIC	0.173 in	1.4 V	4-Mini-Flat	1	100 °C	-55 °C	50 %	3 µs	3 µs	600 %	3750 Vrms	50 mA	400 mV	1.81 mOhm	50 mA

Catalog

4-Pin Half Pitch MFP AC Input Phototransistor Output Optocoupler

Key Features

• Compact 4-pin package - (2.4 mm maximum standoff height)

• Half pitch leads for optimum board space savings

• High current transfer ratio: 50-600%

• Available in tape and reel quantities of 2500

• CSA (File #1201524), UL (file #E90700) and VDE (file #136480) certified

Description

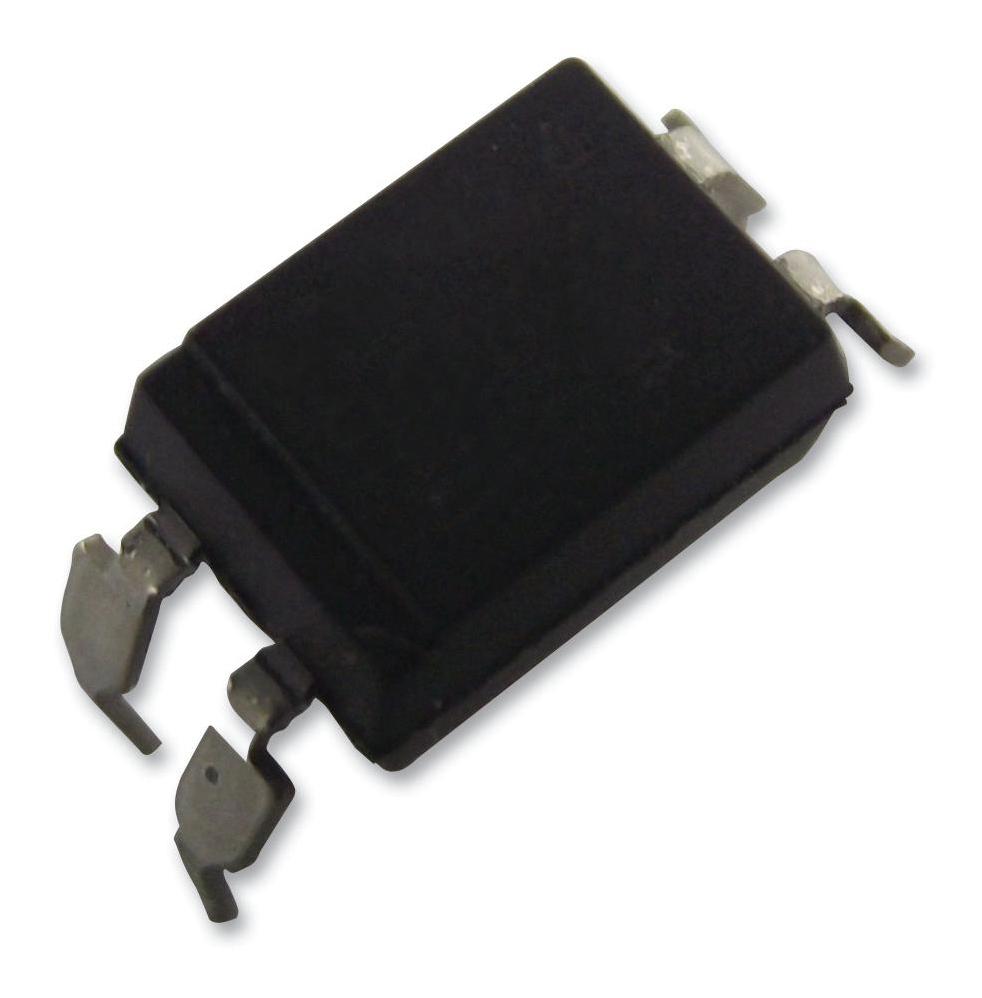

The HMHAA280 series consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a single silicon phototransistor in a compact 4-pin mini-flat package. The lead pitch is 1.27mm.
