LD57100 Series

Catalog

LOW DROPOUT REGULATOR POSITIVE 0.5V TO 3V 1A 6-PIN FLIPCHIP T/R

Part	Current - Quiescent (Iq)	Package / Case	Current - Output	Mounting Type	Output Configuration	Number of Regulators	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Voltage Dropout (Max) [Max]	Control Features	Voltage - Output (Max) [Max]	Protection Features	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	PSRR	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Voltage - Output (Min/Fixed)

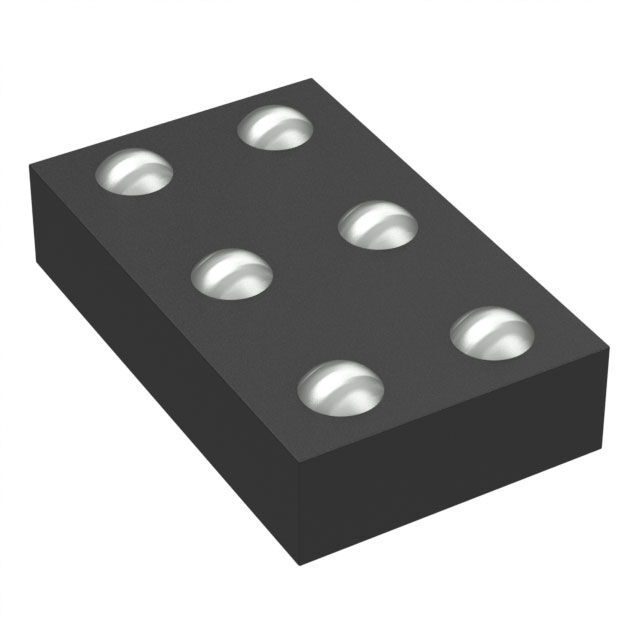

STMicroelectronics LD57100JR	50 çA	6-XFBGA FCBGA	1 A	Surface Mount	Positive	1	1.18	6-FlipChip	0.78	0.08 V	Enable	3 V	Over Current Over Temperature	Adjustable	-40 °C	85 °C	70 db	5.5 V	0.5 V
STMicroelectronics LD57100J100R	50 çA	6-XFBGA FCBGA	1 A	Surface Mount	Positive	1	1.18	6-FlipChip	0.78	0.08 V	Enable		Over Current Over Temperature		-40 °C	85 °C	75 dB	5.5 V		1 V
STMicroelectronics LD57100J105R	50 çA	6-XFBGA FCBGA	1 A	Surface Mount	Positive	1	1.18	6-FlipChip	0.78	0.08 V	Enable		Over Current Over Temperature		-40 °C	85 °C	75 dB	5.5 V		1.05 V
STMicroelectronics LD57100J800R	50 çA	6-XFBGA FCBGA	1 A	Surface Mount	Positive	1	1.18	6-FlipChip	0.78	0.08 V	Enable		Over Current Over Temperature		-40 °C	85 °C	75 dB	5.5 V		0.8 V
STMicroelectronics LD57100J120R	50 çA	6-XFBGA FCBGA	1 A	Surface Mount	Positive	1	1.18	6-FlipChip	0.78	0.08 V	Enable		Over Current Over Temperature		-40 °C	85 °C	75 dB	5.5 V		1.2 V
STMicroelectronics LD57100J110R	50 çA	6-XFBGA FCBGA	1 A	Surface Mount	Positive	1	1.18	6-FlipChip	0.78	0.08 V	Enable		Over Current Over Temperature		-40 °C	85 °C	75 dB	5.5 V		1.1 V
STMicroelectronics LD57100J330R	50 çA	6-XFBGA FCBGA	1 A	Surface Mount	Positive	1	1.18	6-FlipChip	0.78	0.08 V	Current Limit Enable		Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)		-40 °C	85 °C	75 dB	5.5 V		3.3 V
