TPI 125A-J Series

Switching Power Supplies 125W 48V 2610mA Open 3x2

Manufacturer: Traco Power

Catalog

Switching Power Supplies 125W 48V 2610mA Open 3x2

Catalog

Switching Power Supplies 125W 48V 2610mA Open 3x2

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Applications	Current - Output 1	Power (Watts)	Type	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Features	Voltage - Isolation	Standard Number	Mounting Type	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1 [custom]	Voltage - Output 1

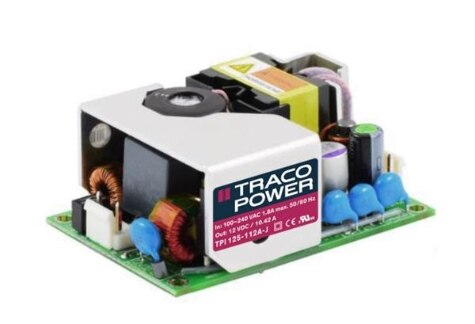

Traco Power TPI 125-136A-J	85 °C	-40 C	1	ITE (Commercial)	2.78 A	100 W 125 W	Open Frame	91 %	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output Universal Input	3000 V	62368-1	Chassis Mount	CB CE cURus	77.2 mm	2.01 "	51.1 mm	3.04 in	1.16 in	29.5 mm	36 V
Traco Power TPI 125-112A-J	85 °C	-40 C	1	ITE (Commercial)	8.34 A	100 W 125 W	Open Frame	91 %	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output Universal Input	3000 V	62368-1	Chassis Mount	CB CE cURus	77.2 mm	2.01 "	51.1 mm	3.04 in	1.16 in	29.5 mm		12 V
Traco Power TPI 125-124A-J	85 °C	-40 C	1	ITE (Commercial)	4.17 A	100 W 125 W	Open Frame	92 %	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output Universal Input	3000 V	62368-1	Chassis Mount	CB CE cURus	77.2 mm	2.01 "	51.1 mm	3.04 in	1.16 in	29.5 mm		24 V
Traco Power TPI 125-115A-J	85 °C	-40 C	1	ITE (Commercial)	6.67 A	100 W 125 W	Open Frame	92 %	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output Universal Input	3000 V	62368-1	Chassis Mount	CB CE cURus	77.2 mm	2.01 "	51.1 mm	3.04 in	1.16 in	29.5 mm		15 V
Traco Power TPI 125-148A-J	85 °C	-40 C	1	ITE (Commercial)	2.09 A	100 W 125 W	Open Frame	91 %	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output Universal Input	3000 V	62368-1	Chassis Mount	CB CE cURus	77.2 mm	2.01 "	51.1 mm	3.04 in	1.16 in	29.5 mm		48 V
