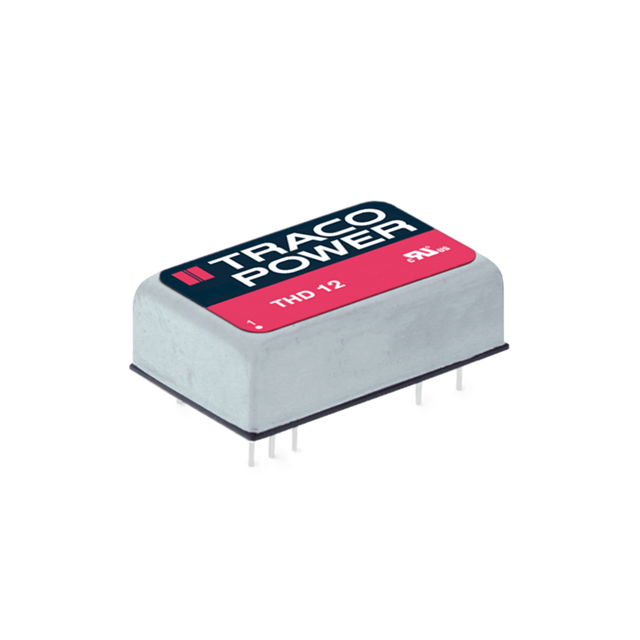

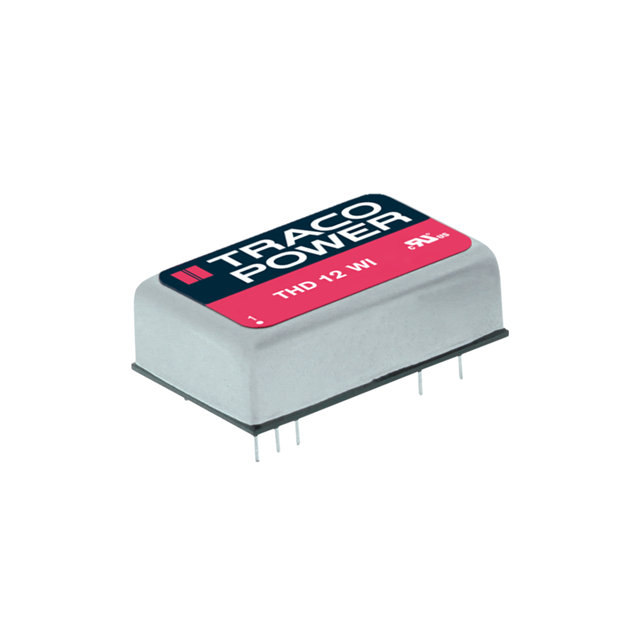

THD 12 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 15V 12W
| Part | Voltage - Input (Max) [Max] | Mounting Type | Applications | Package / Case | Number of Outputs | Features | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Type | Voltage - Output 1 | Current - Output (Max) [Max] | Voltage - Isolation | Power (Watts) | Voltage - Input (Min) [Min] | Voltage - Output 2 | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 36 V | Through Hole | ITE (Commercial) | 24-DIP Module 8 Leads | 1 | OVP Remote On/Off SCP UVLO | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 °C | 85 °C | 85 % | Isolated Module | 15 V | 0.8 A | 1.5 kV | 12 W | 9 V | ||
Traco Power | 36 V | Through Hole | ITE (Commercial) | 24-DIP Module 8 Leads | 1 | OVP Remote On/Off SCP UVLO | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 °C | 85 °C | 85 % | Isolated Module | 12 V | 1 A | 1.5 kV | 12 W | 9 V | ||
Traco Power | 36 V | Through Hole | ITE (Commercial) | 24-DIP Module 8 Leads | 1 | OVP Remote On/Off SCP UVLO | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 °C | 85 °C | 84 % | Isolated Module | 3.3 V | 3.5 A | 1.5 kV | 12 W | 9 V | ||
 Traco Power | 18 V | Through Hole | ITE (Commercial) | 24-DIP Module 8 Leads | 2 | OVP Remote On/Off SCP UVLO | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 °C | 85 °C | 87 % | Isolated Module | 12 V | 1.5 kV | 12 W | 9 V | -12 V | 500 mA | |
Traco Power | 18 V | Through Hole | ITE (Commercial) | 24-DIP Module 8 Leads | 1 | OVP Remote On/Off SCP UVLO | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 °C | 85 °C | 86 % | Isolated Module | 12 V | 1 A | 1.5 kV | 12 W | 9 V | ||
Traco Power | 18 V | Through Hole | ITE (Commercial) | 24-DIP Module 8 Leads | 2 | OVP Remote On/Off SCP UVLO | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 °C | 85 °C | 87 % | Isolated Module | 15 V | 1.5 kV | 12 W | 9 V | -15 V | 400 mA | |
Traco Power | 36 V | Through Hole | ITE (Commercial) | 24-DIP Module 8 Leads | 2 | OVP Remote On/Off SCP UVLO | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 °C | 85 °C | Isolated Module | 5 V | 1.5 kV | 12 W | 9 V | -5 V | 1.2 A | ||
Traco Power | 75 V | Through Hole | ITE (Commercial) | 24-DIP Module 8 Leads | 1 | OVP Remote On/Off SCP UVLO | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 °C | 85 °C | 85 % | Isolated Module | 3.3 V | 3.5 A | 1.5 kV | 12 W | 36 V |
