1426 Series

Catalog

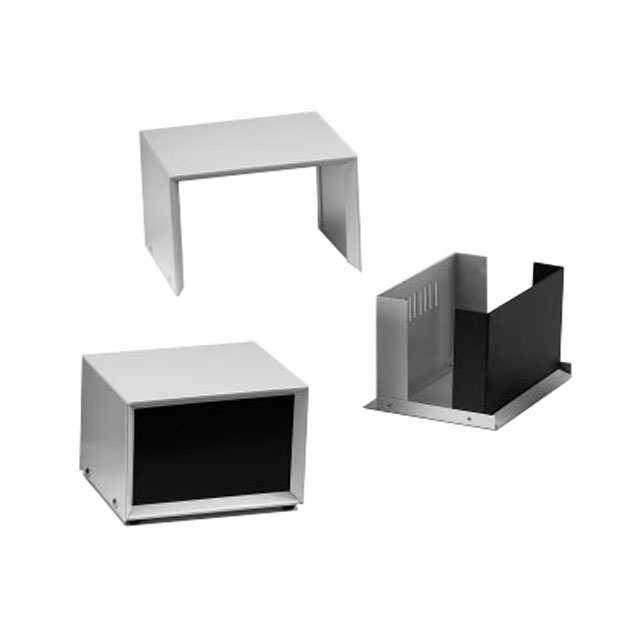

BLUE STEEL/ALUMINUM INSTRUMENT ENCLOSURE

Part	Weight	Weight	Thickness	Area (L x W)	Area (L x W)	Color	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material	Features	Design	Height	Height	Height [z]	Height [z]	Weight [custom]	Weight [custom]	Weight [custom]	Weight [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1426K-B	1.6 lbs	725.7 g	20 Gauge	30 in˛	194 cm˛	Blue	Box	5 in	152.4 mm	6 "	5 in	Metal Steel	Separate Panel or Cover Thickness Vented Panels	U Shaped Pieces	101.6 mm	101.6 mm
Hammond Manufacturing 1426Y-B	3.7 lbs	1.7 kg	20 Gauge	72 in²	465 cm²	Blue	Box	152.4 mm	304.8 mm	12 "	6 in	Metal Steel	Separate Panel or Cover Thickness Vented Panels	U Shaped Pieces			139.7 mm	5.5 in
Hammond Manufacturing 1426M-B			20 Gauge	48 in²	310 cm²	Blue	Box					Metal Steel	Separate Panel or Cover Thickness Vented Panels	U Shaped Pieces	101.6 mm	101.6 mm			2.3 lbs	1 kg

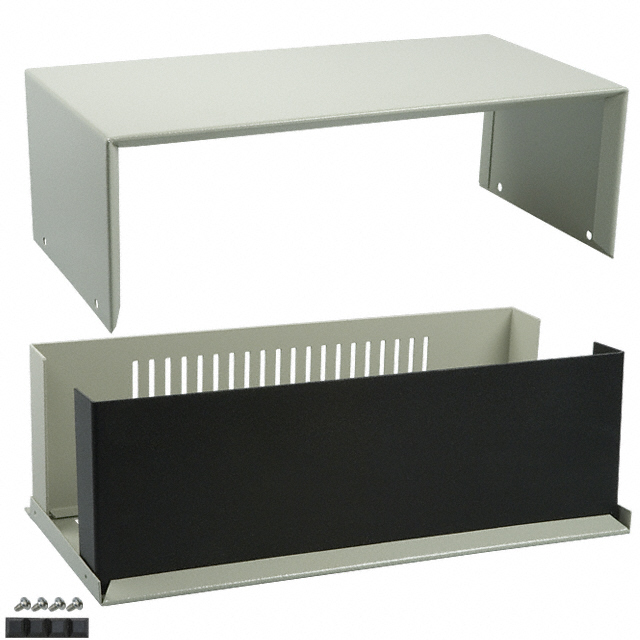

Hammond Manufacturing 1426S			20 Gauge	72 in²	465 cm²	Off White	Box	152.4 mm	304.8 mm	12 "	6 in	Metal Steel	Separate Panel or Cover Thickness Vented Panels	U Shaped Pieces	101.6 mm	101.6 mm					3.2 lbs	1.5 kg
Hammond Manufacturing 1426Q-B			20 Gauge			Blue	Box	11 "	298.45 mm	11.75 in	11 in	Metal Steel	Separate Panel or Cover Thickness Vented Panels	U Shaped Pieces			139.7 mm	5.5 in	5.3 lbs	2.4 kg			832 cm²	129 in²
Hammond Manufacturing 1426Y			20 Gauge	72 in²	465 cm²	Off White	Box	152.4 mm	304.8 mm	12 "	6 in	Metal Steel	Separate Panel or Cover Thickness Vented Panels	U Shaped Pieces			139.7 mm	5.5 in	0.222 lb	100.7 g

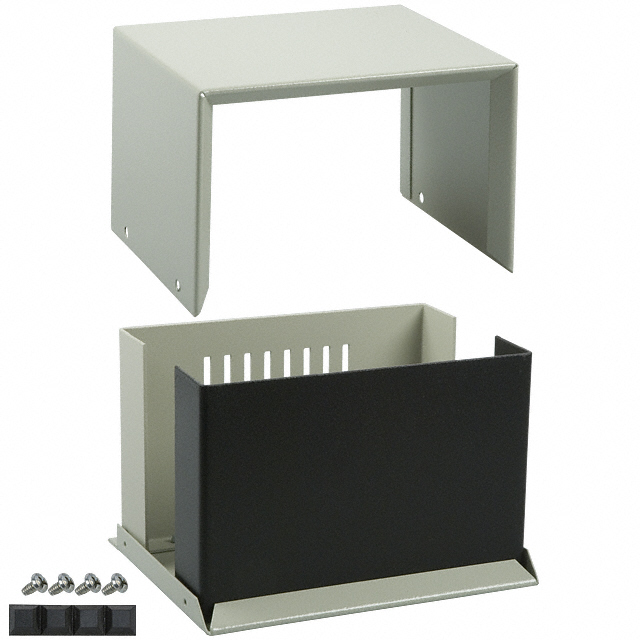

Hammond Manufacturing 1426K	1.6 lbs	725.7 g	20 Gauge	30 in˛	194 cm˛	Off White	Box	5 in	152.4 mm	6 "	5 in	Metal Steel	Separate Panel or Cover Thickness Vented Panels	U Shaped Pieces	101.6 mm	101.6 mm

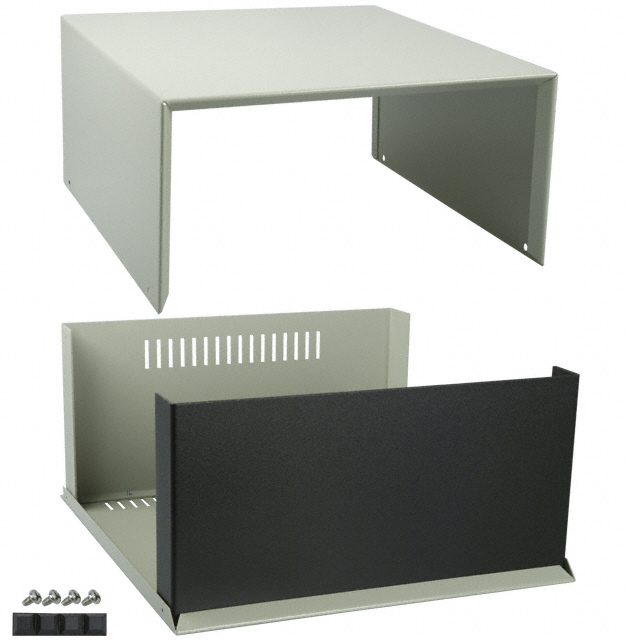

Hammond Manufacturing 1426Q			20 Gauge			Off White	Box	11 "	298.45 mm	11.75 in	11 in	Metal Steel	Separate Panel or Cover Thickness Vented Panels	U Shaped Pieces			139.7 mm	5.5 in	5.3 lbs	2.4 kg			832 cm²	129 in²
Hammond Manufacturing 1426V-B	3.7 lbs	1.7 kg	20 Gauge			Blue	Box	203.2 mm	304.8 mm	12 "	8 "	Metal Steel	Separate Panel or Cover Thickness Vented Panels	U Shaped Pieces	101.6 mm	101.6 mm									619 cm²	96 in²

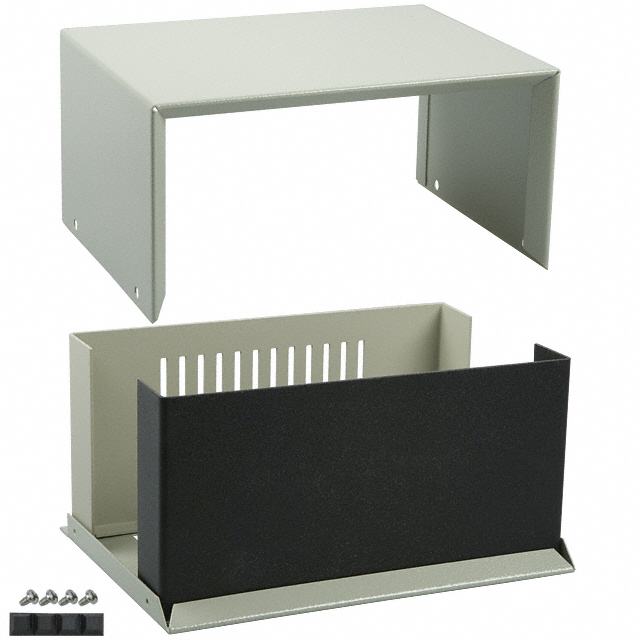

Hammond Manufacturing 1426M			20 Gauge	48 in²	310 cm²	Off White	Box					Metal Steel	Separate Panel or Cover Thickness Vented Panels	U Shaped Pieces	101.6 mm	101.6 mm			2.3 lbs	1 kg
