205714 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

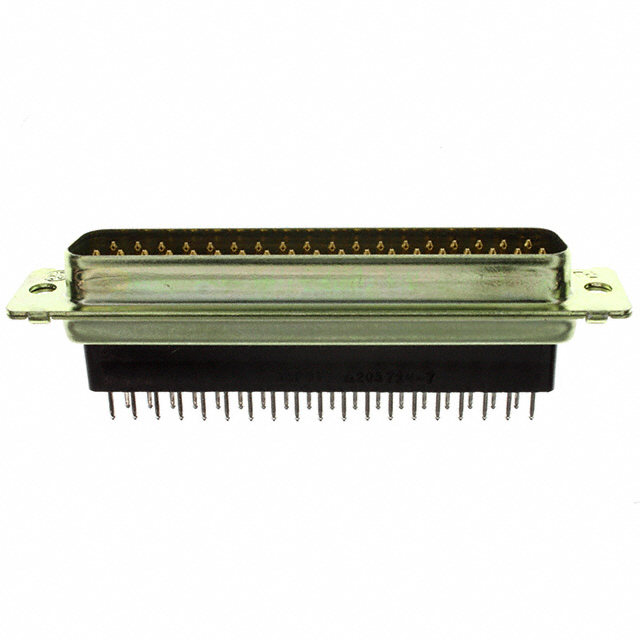

37 PLUG SP/MS STD
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout | Flange Feature | Mounting Type | Contact Type | Number of Positions | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Color | Contact Material | Current Rating (Amps) | Connector Type | Termination | Connector Style | Material Flammability Rating | Number of Rows | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -55 °C | 4 (DC C) | Housing/Shell (Unthreaded) | Through Hole | Signal | 37 | 125 VDC | 0.76 Ám | 30 Áin | Gold | Black | Brass | 6 A | Male Pins Plug | Solder | D-Sub | UL94 V-0 | 2 | Steel Yellow Chromate Plated Zinc |
