172762 Series

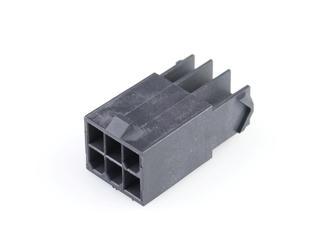

Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 6 Circuits
Manufacturer: Molex
Catalog
Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 6 Circuits
Beta
⌘K
Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 6 Circuits
Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 6 Circuits
Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 6 Circuits
| Part | Row Spacing | Row Spacing | Contact Type | Number of Positions | Fastening Type | Contact Termination | Insulation Material | Note | Connector Type | Pitch [x] | Pitch [x] | Number of Rows | Color | Mounting Type | Features | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

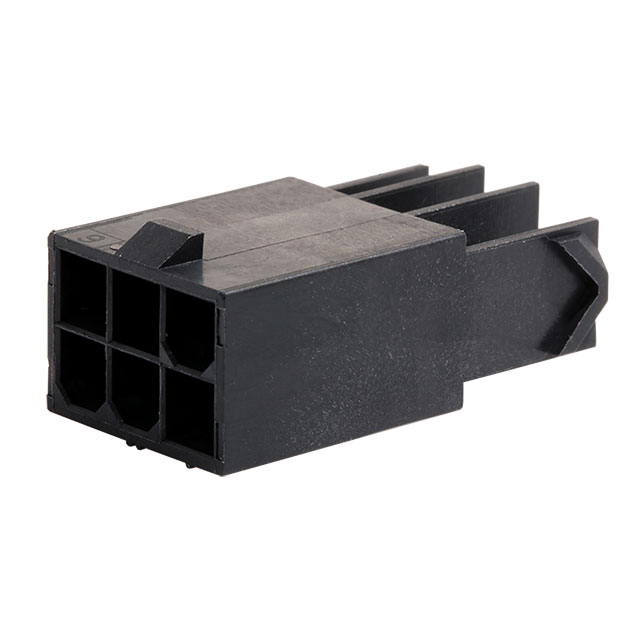

 Molex | 4.2 mm | 0.165 in | Male Pin | 6 | Locking Ramp | Crimp | Nylon Polyamide (PA) | Contacts Not Included | Plug | 4.2 mm | 0.165 in | 2 | Black | Free Hanging (In-Line) | |||

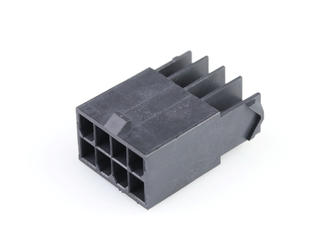

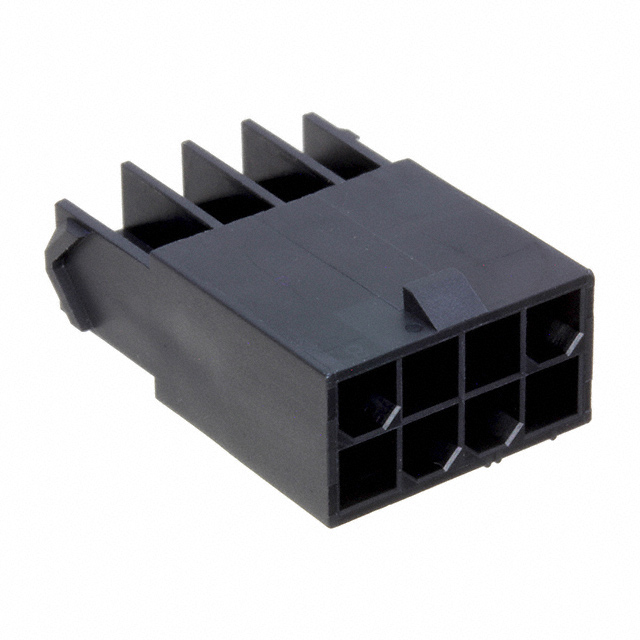

 Molex | 4.2 mm | 0.165 in | Male Pin | 8 | Locking Ramp | Crimp | Nylon Polyamide (PA) | Contacts Not Included | Plug | 4.2 mm | 0.165 in | 2 | Black | Free Hanging (In-Line) | |||
 Molex | 4.2 mm | 0.165 in | Male Pin | 6 | Locking Ramp | Crimp | Nylon Polyamide (PA) | Contacts Not Included | Plug | 4.2 mm | 0.165 in | 2 | Black | Free Hanging (In-Line) | Glow Wire Compliant | -40 °C | 105 ░C |
 Molex | |||||||||||||||||

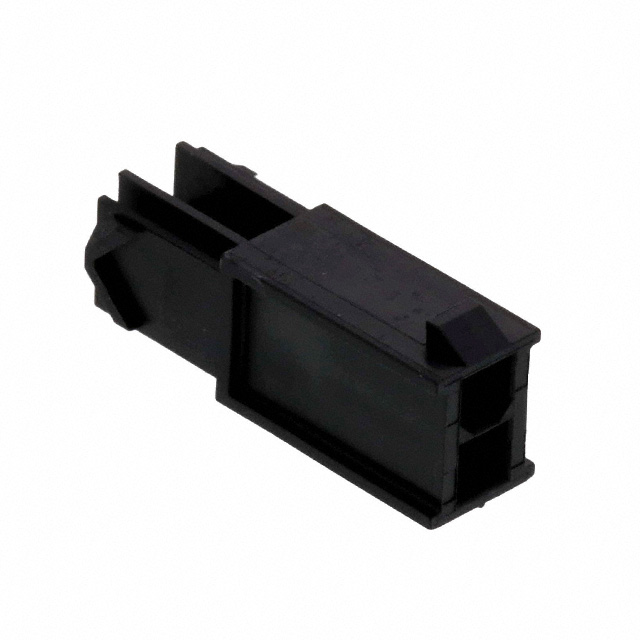

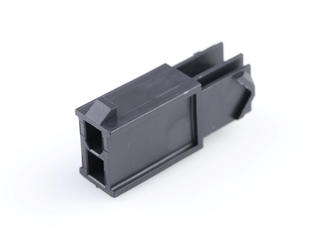

 Molex | 4.2 mm | 0.165 in | Male Pin | 2 | Locking Ramp | Crimp | Nylon Polyamide (PA) | Contacts Not Included | Plug | 2 | Black | Free Hanging (In-Line) | |||||

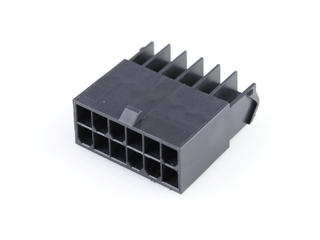

 Molex | 4.2 mm | 0.165 in | Male Pin | 12 | Locking Ramp | Crimp | Nylon Polyamide (PA) | Contacts Not Included | Plug | 4.2 mm | 0.165 in | 2 | Black | Free Hanging (In-Line) | |||

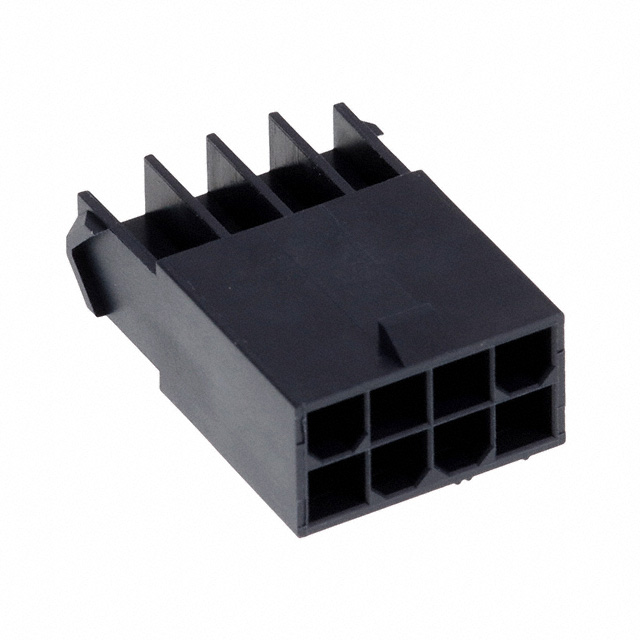

Molex | 4.2 mm | 0.165 in | Male Pin | 8 | Locking Ramp | Crimp | Nylon Polyamide (PA) | Contacts Not Included | Plug | 4.2 mm | 0.165 in | 2 | Black | Free Hanging (In-Line) | Glow Wire Compliant | -40 °C | 105 ░C |

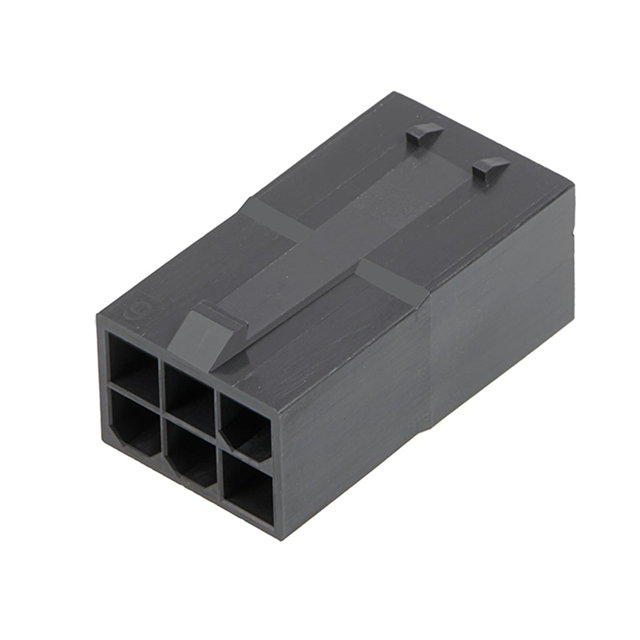

 Molex | 4.7 mm | 0.185 in | Male Pin | 6 | Locking Ramp | Crimp | Nylon Polyamide (PA) | Contacts Not Included | Plug | 4.2 mm | 0.165 in | 2 | Black | Free Hanging (In-Line) | Glow Wire Compliant | -40 °C | 105 ░C |

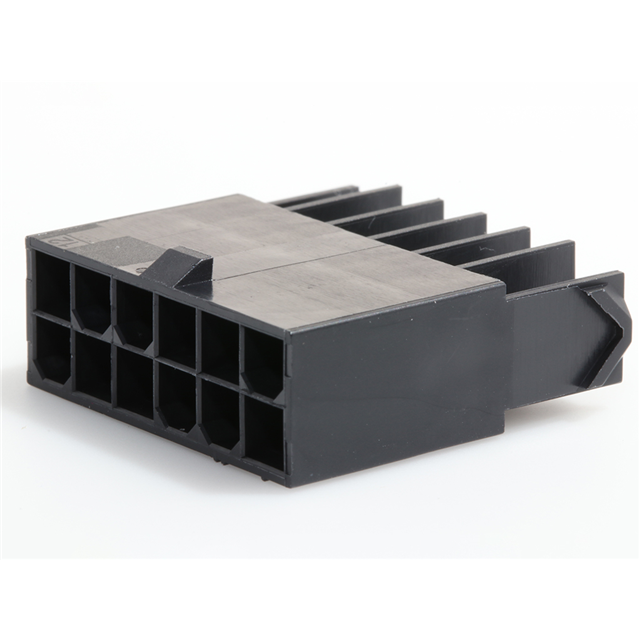

 Molex | 4.2 mm | 0.165 in | Male Pin | 12 | Locking Ramp | Crimp | Nylon Polyamide (PA) | Contacts Not Included | Plug | 4.2 mm | 0.165 in | 2 | Black | Free Hanging (In-Line) | Glow Wire Compliant | -40 °C | 105 ░C |

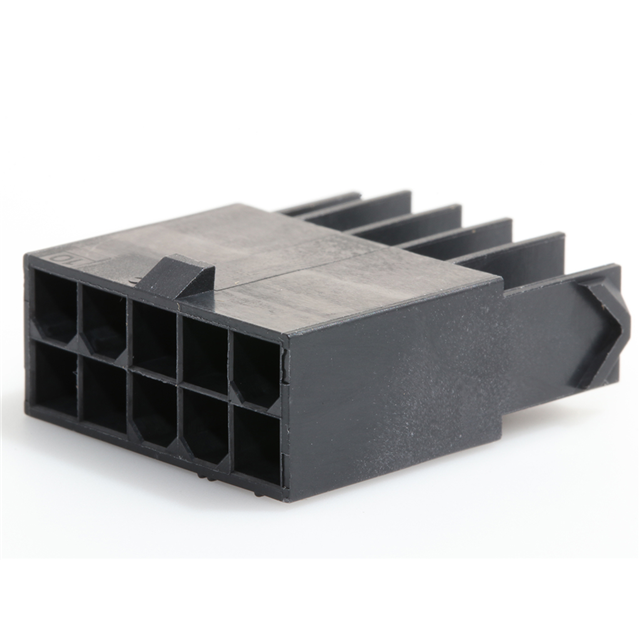

 Molex | 4.2 mm | 0.165 in | Male Pin | 10 | Locking Ramp | Crimp | Nylon Polyamide (PA) | Contacts Not Included | Plug | 4.2 mm | 0.165 in | 2 | Black | Free Hanging (In-Line) | Glow Wire Compliant | -40 °C | 105 ░C |
