04056EA Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

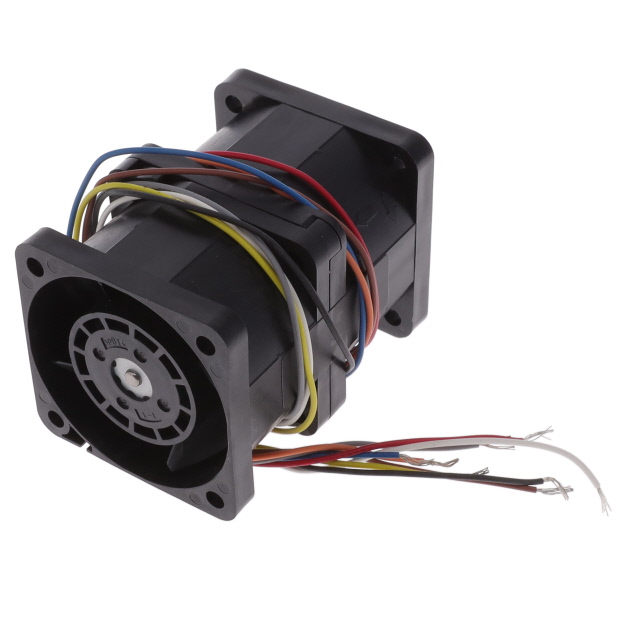

FAN AXIAL DUAL 40X56MM 12VDC
| Part | Material - Frame | Bearing Type | Fan Type | Material - Blade | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Power (Watts) | Termination | Voltage - Rated | Approval Agency | Features | Size / Dimension [x] | Size / Dimension [z] | RPM [custom] | RPM [custom] | Noise | Air Flow | Air Flow | Static Pressure | Static Pressure | Width [y] | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Plastic | Ball | Tubeaxial (Dual) | Plastic | -10 °C | 60 °C | 10.8 VDC | 12.6 VDC | 1.3 A | 15.6 W | 4 | 12 VDC | CE cULus VDE | Auto Restart PWM Control Speed Sensor (Tach) | 40 mm | 40 mm | 18000 RPM | 20000 RPM | 69 dB | 0.848 m³/min | 30.3 CFM | 3.1 in H2O | 772.2 Pa | 56 mm | 70000 Hrs |
