MPQ4436 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

IC REG BUCK 5V 6A 20QFN

Part	Topology	Qualification	Voltage - Input (Min) [Min]	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Mounting Type	Number of Outputs	Function	Grade	Supplier Device Package	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Frequency - Switching [Max]	Frequency - Switching [Min]	Output Type	Frequency - Switching	Voltage - Output (Max) [Max]	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Regulator Topology	Utilized IC / Part	Main Purpose	Contents	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]
Monolithic Power Systems Inc. MPQ4436AGRE-5-AEC1-P	Buck	AEC-Q100	4.5 V	Positive	-40 °C	150 °C	6 A	Surface Mount Wettable Flank	1	Step-Down	Automotive	20-QFN (4x4)	45 V	5 V	1 MHz	350 kHz
Monolithic Power Systems Inc. MPQ4436AGRE-AEC1-P	Buck	AEC-Q100		Positive	-40 °C	150 °C	6 A	Surface Mount Wettable Flank	1	Step-Down	Automotive	20-QFN (4x4)	45 V				Adjustable	470 kHz	45 V
Monolithic Power Systems Inc. MPQ4436BGRE-AEC1-Z	Buck	AEC-Q100		Positive	-40 °C	150 °C	6 A	Surface Mount Wettable Flank	1	Step-Down	Automotive	20-QFN (4x4)	45 V		1 MHz	350 kHz	Adjustable		42.75 V

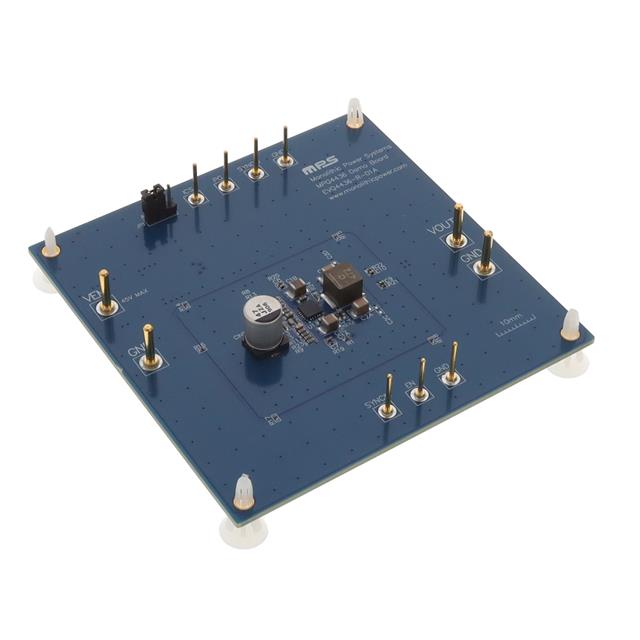

Monolithic Power Systems Inc. EVQ4436-R-01A							6 A													Board(s)	1	1 Non-Isolated Output Non-Isolated	Fully Populated	Buck	MP4436 MPQ4436 MPQ4436-AEC1	DC/DC Step Down	Board(s)	3.3 V	3.3 V	45 V
Monolithic Power Systems Inc. MPQ4436BGRE-AEC1-P	Buck	AEC-Q100		Positive	-40 °C	150 °C	6 A	Surface Mount Wettable Flank	1	Step-Down	Automotive	20-QFN (4x4)	45 V		1 MHz	350 kHz	Adjustable		42.75 V

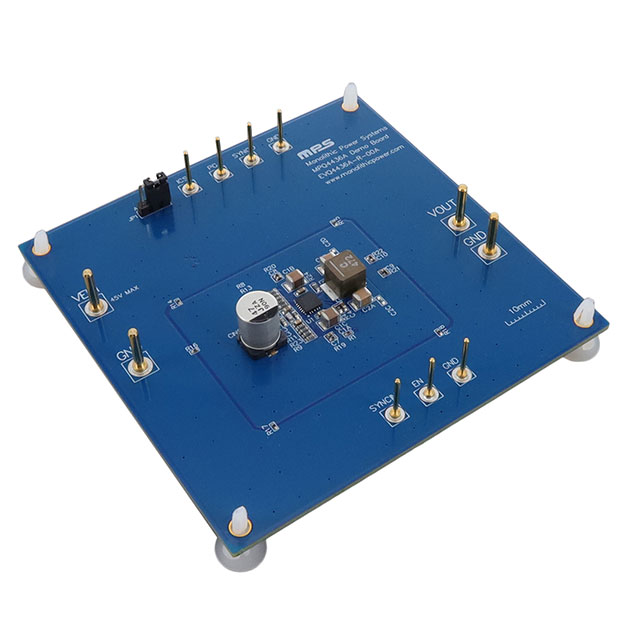

Monolithic Power Systems Inc. EVQ4436A-R-00A							6 A													Board(s)	1	1 Non-Isolated Output Non-Isolated	Fully Populated	Buck	MPQ4436A MPQ4436A-AEC1	DC/DC Step Down	Board(s)	3.3 V	3.3 V	45 V
Monolithic Power Systems Inc. MPQ4436GRE-Z	Buck	AEC-Q100		Positive	-40 °C	150 °C	6 A	Surface Mount Wettable Flank	1	Step-Down	Automotive	20-QFN (4x4)	45 V				Adjustable	470 kHz	45 V
