XPH2R106NC Series

12V - 300V MOSFETs, N-ch MOSFET, 60 V, 110 A, 0.0021 Ω@10V, SOP Advance(WF)

Catalog

12V - 300V MOSFETs, N-ch MOSFET, 60 V, 110 A, 0.0021 Ω@10V, SOP Advance(WF)

Part	Input Capacitance (Ciss) (Max) @ Vds [Max]	Technology	Vgs (Max)	Package / Case	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Operating Temperature	FET Type	Power Dissipation (Max)	Grade	Vgs(th) (Max) @ Id	Qualification	Current - Continuous Drain (Id) @ 25°C

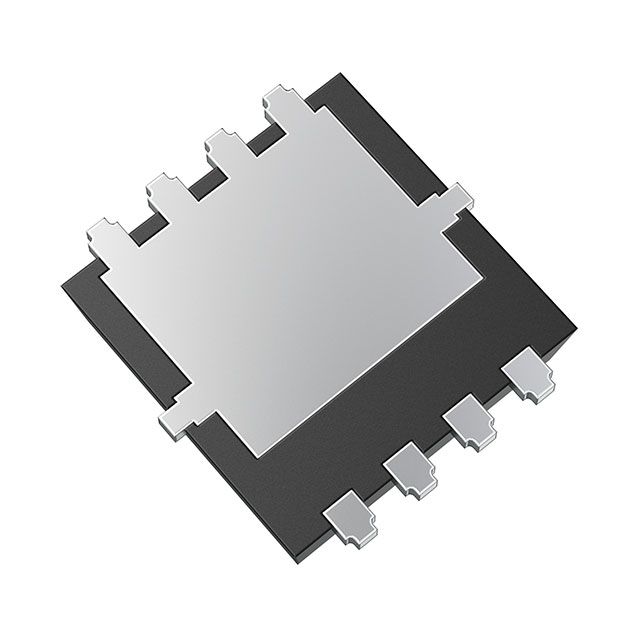

Toshiba Semiconductor and Storage XPH2R106NC,L1XHQ	6900 pF	MOSFET (Metal Oxide)	20 V	8-PowerVDFN	Surface Mount	104 nC	2.1 mOhm	60 V	5	8-SOP Advance	5	175 °C	N-Channel	170 W 960 mW	Automotive	2.5 V	AEC-Q101	110 A

12V - 300V MOSFETs, N-ch MOSFET, 60 V, 110 A, 0.0021 Ω@10V, SOP Advance(WF)
