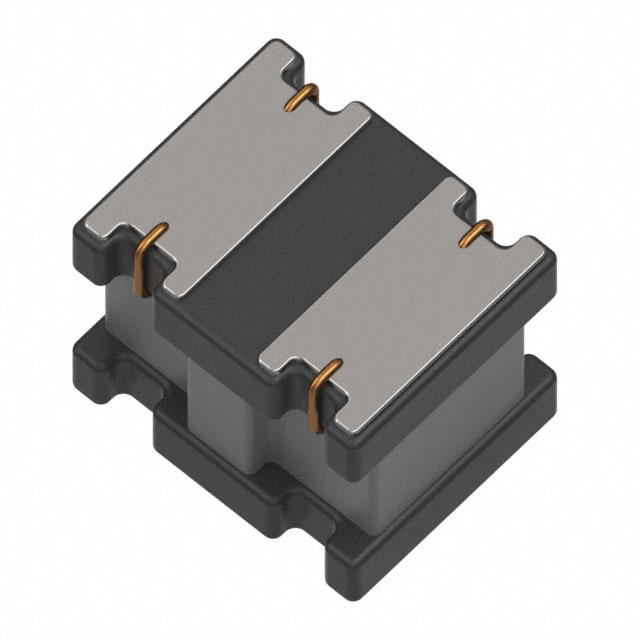

SDEB12101 Series

Catalog

FIXED IND 470NH 1.55A 96MOHM SMD

Part	Tolerance	Current Rating (Amps)	Inductance	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Current - Saturation (Isat)	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Shielding
Delta Electronics/Cyntec SDEB12101T-R47MSD	20 %	1.55 A	470 nH	96 mOhm	1 MHz	-55 C	125 °C	1.4 A	Nonstandard	0.039 in	1 mm	Surface Mount	Shielded
Delta Electronics/Cyntec SDEB12101T-R22MSD	20 %	1.9 A	220 nH		1 MHz	-55 C	125 °C	2.16 A	Nonstandard	0.039 in	1 mm	Surface Mount	Shielded
Delta Electronics/Cyntec SDEB12101T-1R5MSD	20 %	900 mA	1.5 µH	276 mOhm	1 MHz	-55 C	125 °C	740 mA	Nonstandard	0.039 in	1 mm	Surface Mount	Shielded
Delta Electronics/Cyntec SDEB12101T-2R2MSD	20 %	0.71 A	2.2 µH	338 mOhm	1 MHz	-55 C	125 °C	610 mA	Nonstandard	0.039 in	1 mm	Surface Mount	Shielded
Delta Electronics/Cyntec SDEB12101T-1R0MSD	20 %	1.05 A	1 µH	201 mOhm	1 MHz	-55 C	125 °C	1.04 A	Nonstandard	0.039 in	1 mm	Surface Mount	Shielded
Delta Electronics/Cyntec SDEB12101T-100MSD	20 %	360 mA	10 µH	1.5 Ohm	1 MHz	-55 C	125 °C	320 mA	Nonstandard	0.039 in	1 mm	Surface Mount	Shielded
