3115PS Series

Catalog

FAN AXIAL 80X38MM 240VAC TERM

Part	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Material - Blade	Static Pressure	Static Pressure	Weight	Weight	Termination	Noise	Air Flow	Air Flow	Fan Type	Power (Watts)	RPM	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Bearing Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Weight [custom]	Weight [custom]
NMB TECHNOLOGIES 3115PS-24T-B20-A00	Aluminum	50000 Hrs	45 mA	Polycarbonate (PC) Fiberglass Reinforced	0.149 in H2O	37.2 Pa	269.89 g	0.595 lb	2	35 dB	0.742 m³/min	26.5 CFM	Tubeaxial	6 W	2600 RPM	240 VAC	80 mm	80 mm	38 mm	Ball	CE CSA TUV UL VDE	70 °C	-10 °C
NMB TECHNOLOGIES 3115PS-10T-B20-B00	Aluminum	50000 Hrs	70 mA	Polycarbonate (PC) Fiberglass Reinforced	0.118 in H2O	29.4 Pa	269.89 g	0.595 lb	2	32 dB	0.672 mł/min	24 CFM	Tubeaxial		2300 RPM	100 VAC	80 mm	80 mm	38 mm	Ball	CE CSA TUV UL VDE	70 °C	-10 °C

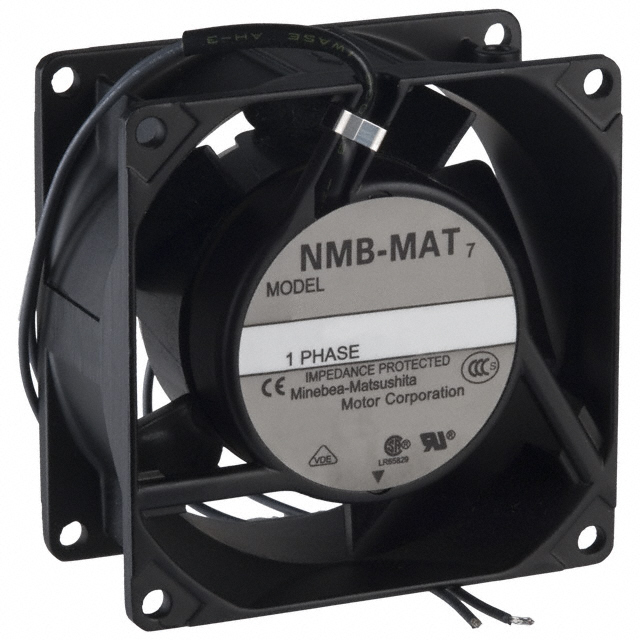

NMB TECHNOLOGIES 3115PS-12W-B10-A00	Aluminum	50000 Hrs	0.055 A	Polycarbonate (PC) Fiberglass Reinforced	0.08 in H2O	19.9 Pa				25 dB(A)	0.543 m³/min	19.4 CFM	Tubeaxial		1900 RPM	115 VAC	80 mm	80 mm	38 mm	Ball	CE CSA TUV UL VDE	70 °C	-10 °C	2 Wire Leads	267.62 g	0.59 lb
NMB TECHNOLOGIES 3115PS-23T-B30-A00	Aluminum	50000 Hrs	0.055 A	Polycarbonate (PC) Fiberglass Reinforced	0.2 in H2O	49.8 Pa			2	38 dB(A)	0.896 m³/min	32 CFM	Tubeaxial	8 W	3200 RPM	230 VAC	80 mm	80 mm	38 mm	Ball	CE CSA TUV UL VDE	70 °C	-10 °C		267.62 g	0.59 lb
NMB TECHNOLOGIES 3115PS-24T-B10-A00	Aluminum	50000 Hrs	0.055 A	Polycarbonate (PC) Fiberglass Reinforced	0.102 in H2O	25.4 Pa	269.89 g	0.595 lb	2	26 dB	0.605 m³/min	21.6 CFM	Tubeaxial	6 W	2150 RPM	240 VAC	80 mm	80 mm	38 mm	Ball	CE CSA TUV UL VDE	70 °C	-10 °C

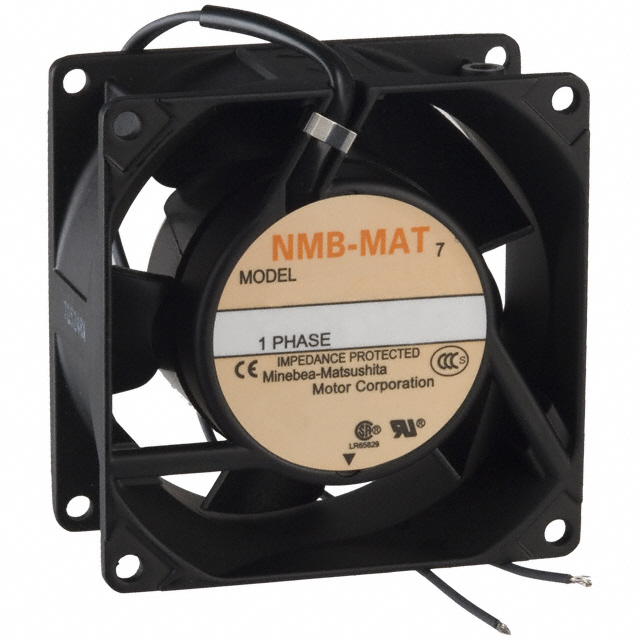

NMB TECHNOLOGIES 3115PS-23W-B10-A00	Aluminum	50000 Hrs	50 mA	Polycarbonate (PC) Fiberglass Reinforced	0.098 in H2O	24.5 Pa				26 dB	0.616 m³/min	22 CFM	Tubeaxial	5 W	2100 RPM	230 VAC	80 mm	80 mm	38 mm	Ball	CE CSA TUV UL VDE	70 °C	-10 °C	2 Wire Leads	267.62 g	0.59 lb
NMB TECHNOLOGIES 3115PS-22T-B20-B00	Aluminum	50000 Hrs	40 mA	Polycarbonate (PC) Fiberglass Reinforced	0.126 in H2O	31.3 Pa	269.89 g	0.595 lb	2	34 dB(A)	0.711 m³/min	25.4 CFM	Tubeaxial	5 W	2400 RPM	220 VAC	80 mm	80 mm	38 mm	Ball	CE CSA TUV UL VDE	70 °C	-10 °C
NMB TECHNOLOGIES 3115PS-23W-B20-A00	Aluminum	50000 Hrs	45 mA	Polycarbonate (PC) Fiberglass Reinforced	0.14 in H2O	35.2 Pa				34 dB(A)	0.728 m³/min	26 CFM	Tubeaxial	6 W	2500 RPM	230 VAC	80 mm	80 mm	38 mm	Ball	CE CSA TUV UL VDE	70 °C	-10 °C	2 Wire Leads	267.62 g	0.59 lb

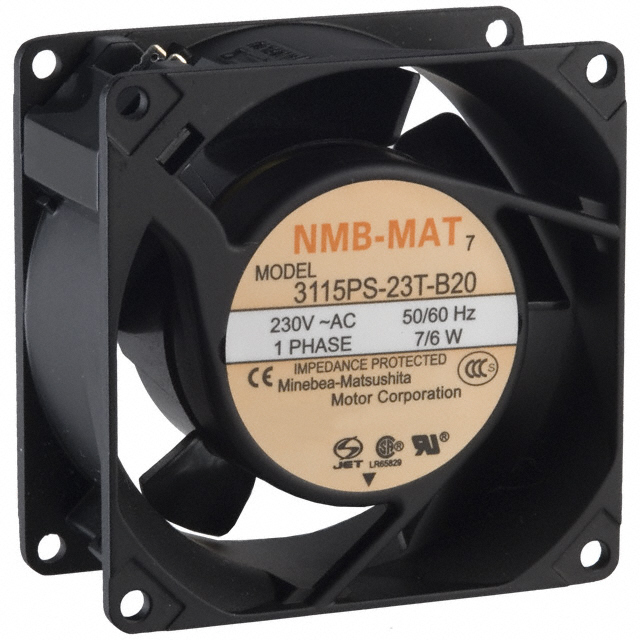

NMB TECHNOLOGIES 3115PS-23T-B20-A00	Aluminum	50000 Hrs	45 mA	Polycarbonate (PC) Fiberglass Reinforced	0.14 in H2O	35.2 Pa			2	34 dB(A)	0.728 m³/min	26 CFM	Tubeaxial	6 W	2500 RPM	230 VAC	80 mm	80 mm	38 mm	Ball	CE CSA TUV UL VDE	70 °C	-10 °C		267.62 g	0.59 lb
NMB TECHNOLOGIES 3115PS-20T-B10-B00	Aluminum	50000 Hrs	40 mA	Polycarbonate (PC) Fiberglass Reinforced	0.086 in H2O	21.5 Pa	269.89 g	0.595 lb	2	26 dB	0.543 m³/min	19.4 CFM	Tubeaxial		1900 RPM	200 VAC	80 mm	80 mm	38 mm	Ball	CE CSA TUV UL VDE	70 °C	-10 °C
