APTGT600U170D4G-Module Series

600V/Dual common source/IGBT modules

Catalog

600V/Dual common source/IGBT modules

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Input	IGBT Type	Current - Collector Cutoff (Max) [Max]	Package / Case	Configuration	Power - Max [Max]	Supplier Device Package	Mounting Type	Vce(on) (Max) @ Vge, Ic	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)
Microchip Technology APTGT600DA60G	600 V	-40 C	175 °C	Standard	Trench Field Stop	750 µA	SP6	Single	2300 W	SP6	Chassis Mount	1.8 V	49 nF

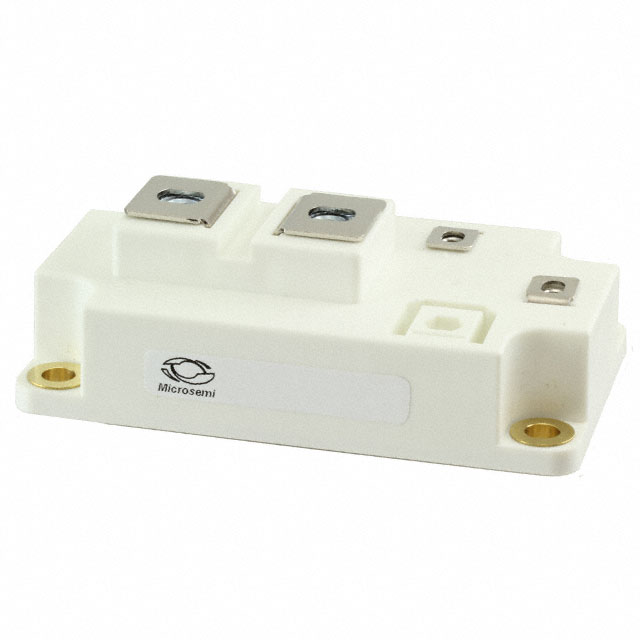

Microchip Technology APTGT600U120D4G	1200 V	-40 °C	150 °C	Standard	Trench Field Stop	5 mA	D4	Single	2500 W	D4	Chassis Mount	2.1 V	40 nF	900 A
Microchip Technology APTGT600SK60G	600 V	-40 C	175 °C	Standard	Trench Field Stop	750 µA	SP6	Single	2300 W	SP6	Chassis Mount	1.8 V	49 nF
Microchip Technology APTGT600DU60G	600 V	-40 C	175 °C	Standard	Trench Field Stop	750 µA	SP6	Common Source Dual	2300 W	SP6	Chassis Mount	1.8 V	49 nF

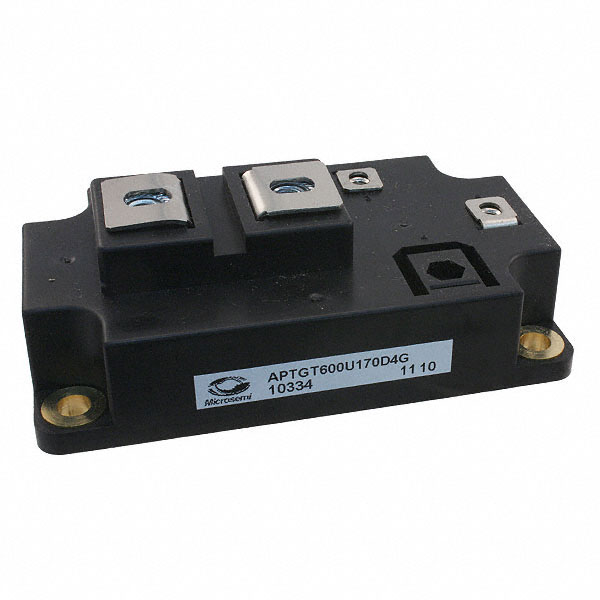

Microchip Technology APTGT600U170D4G		-40 °C	150 °C	Standard	Trench Field Stop	1 mA	D4	Single	2900 W	D4	Chassis Mount	2.4 V	51 nF	1100 A	1700 V

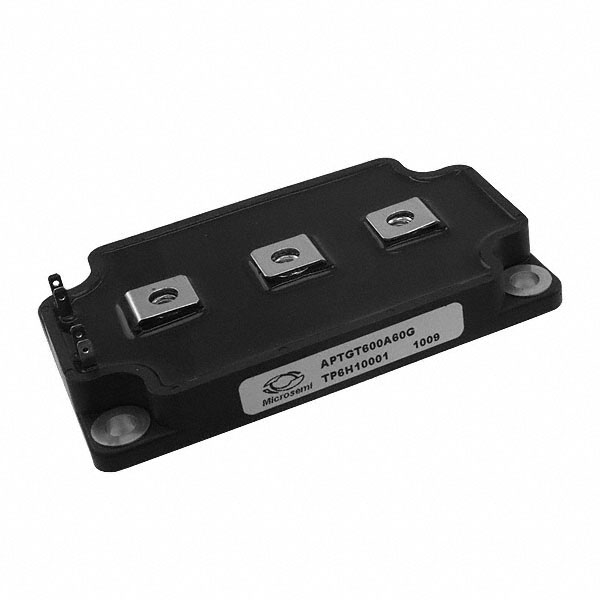

Microchip Technology APTGT600A60G	600 V	-40 C	175 °C	Standard	Trench Field Stop	750 µA	SP6	Half Bridge	2300 W	SP6	Chassis Mount	1.8 V	49 nF

600V/Dual common source/IGBT modules

• + Configuration: Dual common source

• + VCES (V): 600

• + VCESat (V): 1.4

• + Current (A) Tc=80C: 600

• + Silicon type: TRENCH 3 IGBT

• + Package: SP6C
