AD8314 Series

Catalog

AD8314 SPECIAL PURPOSE AMPLIFIER EVALUATION BOARD

Part	Supplied Contents	For Use With/Related Products	Type	Supplier Device Package	Input Range [Max]	Input Range [Min]	Frequency [Min]	Frequency [Max]	RF Type	Mounting Type	Current - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case [custom]	Package / Case

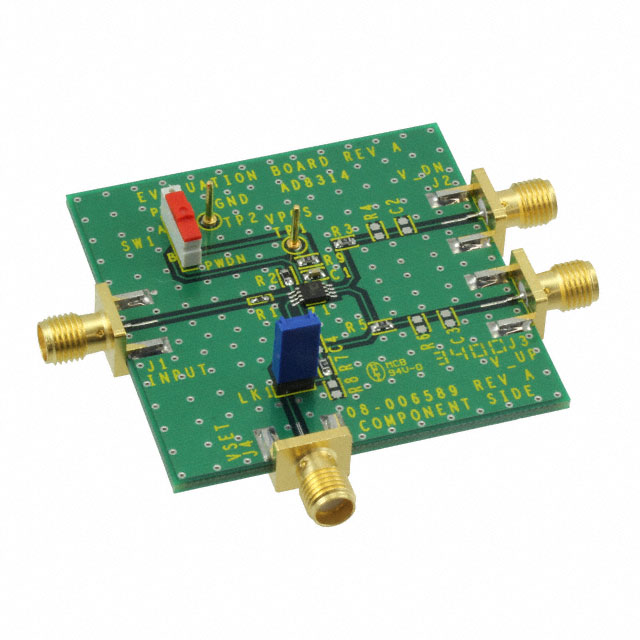

Analog Devices AD8314-EVAL	Board(s)	AD8314	RF Log Detector/Controller
Analog Devices AD8314ARM				8-MSOP	0 dBm	-45 dBm	100 MHz	2.7 GHz	CDMA Cellular GSM TDMA	Surface Mount	5.7 mA	2.7 V	5.5 V	8-MSOP 8-TSSOP	0.118 in	3 mm
Analog Devices AD8314ARMZ				8-MSOP	0 dBm	-45 dBm	100 MHz	2.7 GHz	CDMA Cellular GSM TDMA	Surface Mount	5.7 mA	2.7 V	5.5 V	8-MSOP 8-TSSOP	0.118 in	3 mm

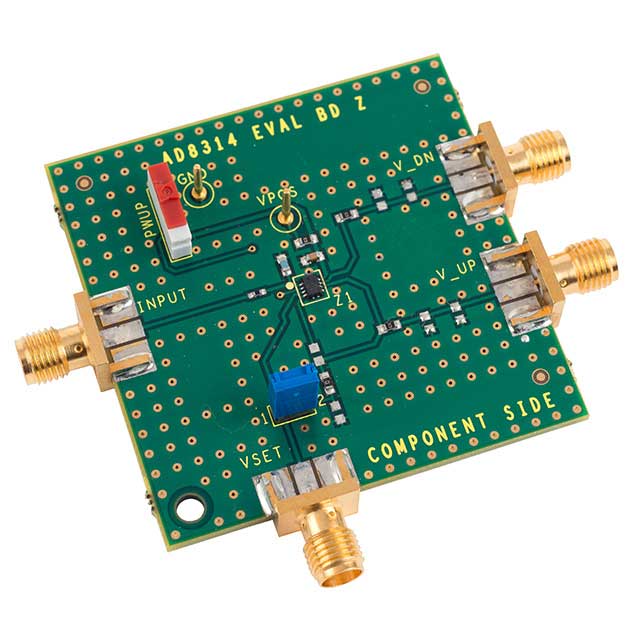

Analog Devices AD8314ACP-EVALZ	Board(s)	AD8314	RF Log Detector/Controller				100 MHz	2.7 GHz
Analog Devices AD8314ARMZ-REEL7				8-MSOP	0 dBm	-45 dBm	100 MHz	2.7 GHz	CDMA Cellular GSM TDMA	Surface Mount	5.7 mA	2.7 V	5.5 V	8-MSOP 8-TSSOP	0.118 in	3 mm
