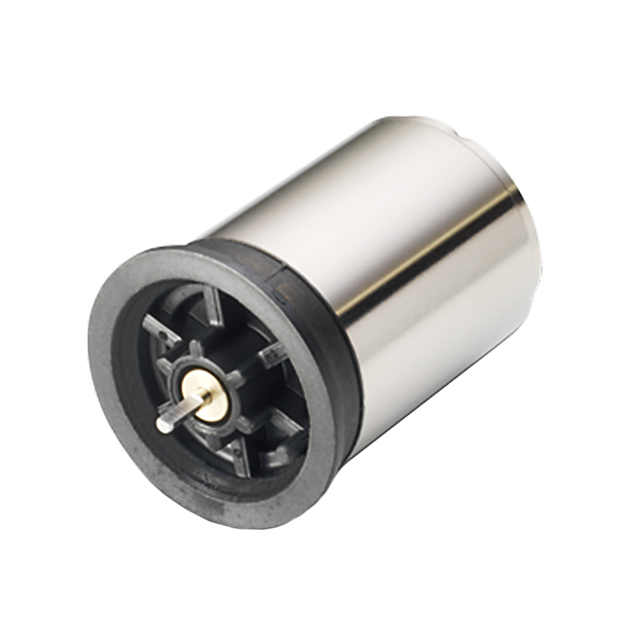

22N28 Series

Manufacturer: Portescap

Catalog

STANDARD MOTOR 10000 RPM 6V

Part	Weight	Weight	RPM	Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Voltage - Rated	Type	Motor Type	Termination Style	Size / Dimension	Size / Dimension	Power - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Length - Shaft and Bearing	Length - Shaft and Bearing [x]

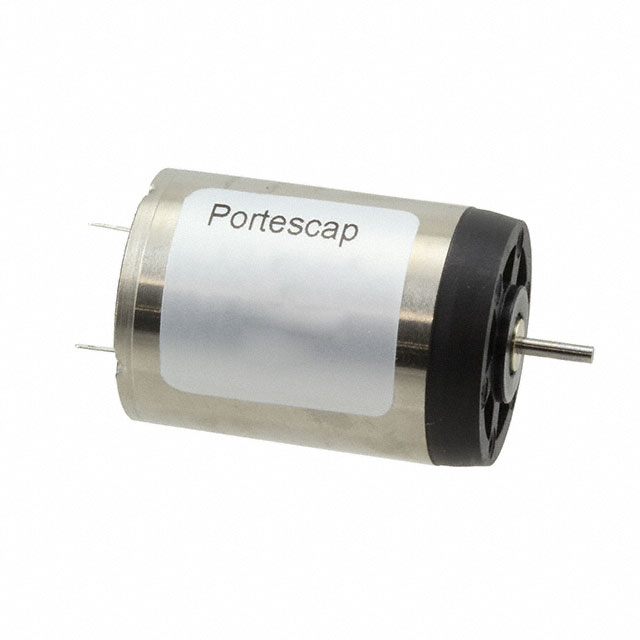

Portescap 22N28-216E.286	0.117 lb	53.07 g	10000 RPM	Standard	85 °C	-30 ░C	12 mm	0.472 in	1.189 oz-in	8.4 mNm	6 VDC	DC Motor	Brushed	Solder Tab	Round	0.866 in 22 mm	3.8 W	1.5 mm	0.059 in	7.5 mm	0.295 "
Portescap 22N28-210E.286	0.117 lb	53.07 g	10000 RPM	Standard	85 °C	-30 ░C	12 mm	0.472 in	1.033 oz-in	7.3 mNm	12 VDC	DC Motor	Brushed	Solder Tab	Round	0.866 in 22 mm	3.8 W	1.5 mm	0.059 in	7.5 mm	0.295 "
Portescap 22N28-213E.286	0.117 lb	53.07 g	10000 RPM	Standard	85 °C	-30 ░C	12 mm	0.472 in	1.062 oz-in	7.5 mNm	9 V	DC Motor	Brushed	Solder Tab	Round	0.866 in 22 mm	3.8 W	1.5 mm	0.059 in	7.5 mm	0.295 "
