BM29B Series

Catalog

6 (4 + 2 POWER) POSITION CONNECT

Part	Number of Positions [custom]	Number of Positions [custom]	Pitch	Pitch	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows [custom]	Contact Finish	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Number of Positions [custom]	Features	Height Above Board [z]

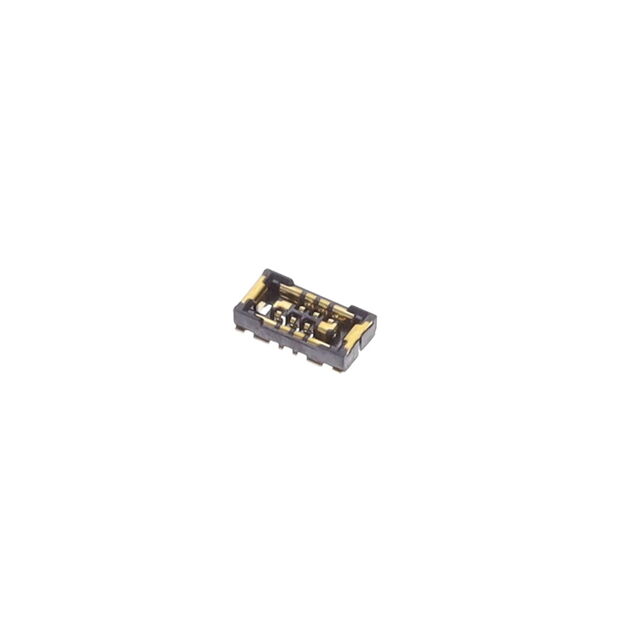

Hirose Electric Co Ltd BM29B0.6-4DS/2-0.35V(51)	4	2	0.014 in	0.35 mm	0.6 mm	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	2	Gold	Surface Mount	0.024 in	0.61 mm

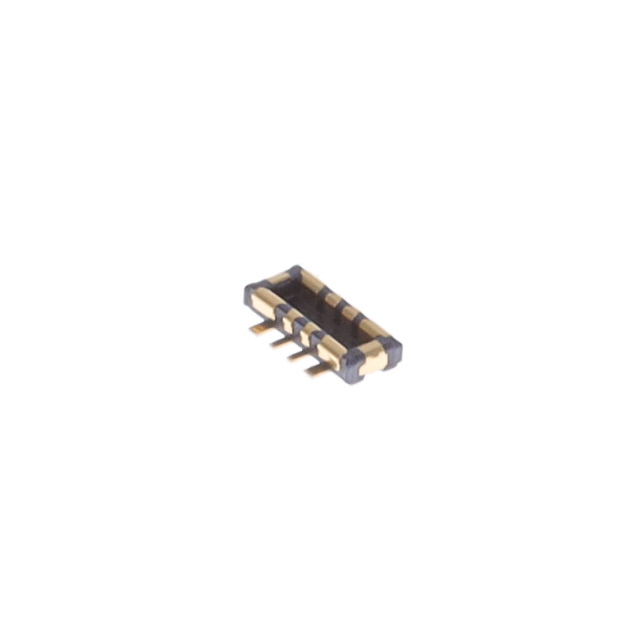

Hirose Electric Co Ltd BM29B-4DP/2-0.35V(53)			0.014 in	0.35 mm	0.6 mm	1.97 Áin	0.05 Ám	Header Outer Shroud Contacts	2	Gold	Surface Mount	0.016 in	0.41 mm	4

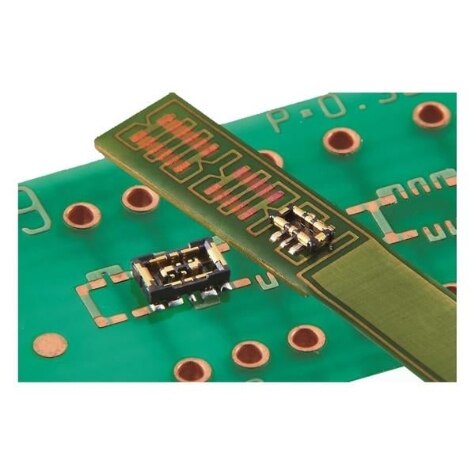

Hirose Electric Co Ltd BM29B0.6-6DS/2-0.35V(53)		2	0.014 in	0.35 mm	0.6 mm	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	2	Gold	Surface Mount	0.024 in	0.61 mm		6

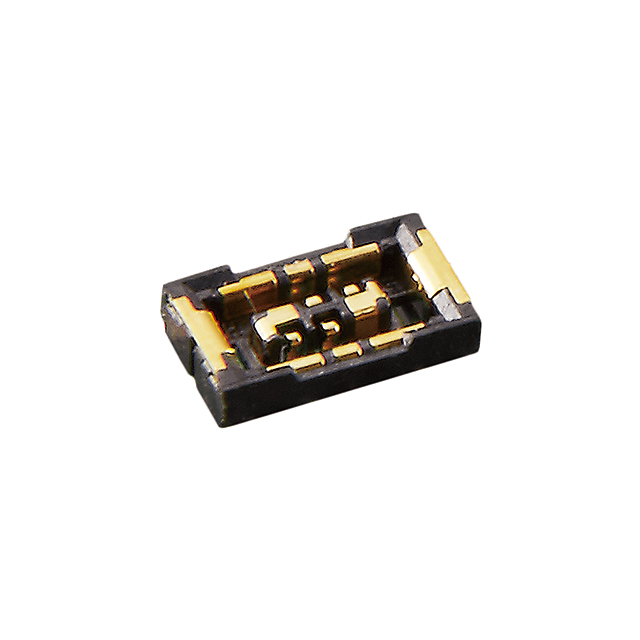

Hirose Electric Co Ltd BM29B0.6-2DS/2-0.35V(53)	4	2	0.014 in	0.35 mm	0.6 mm			Receptacle Center Strip Contacts	2	Gold	Surface Mount	0.024 in	0.61 mm

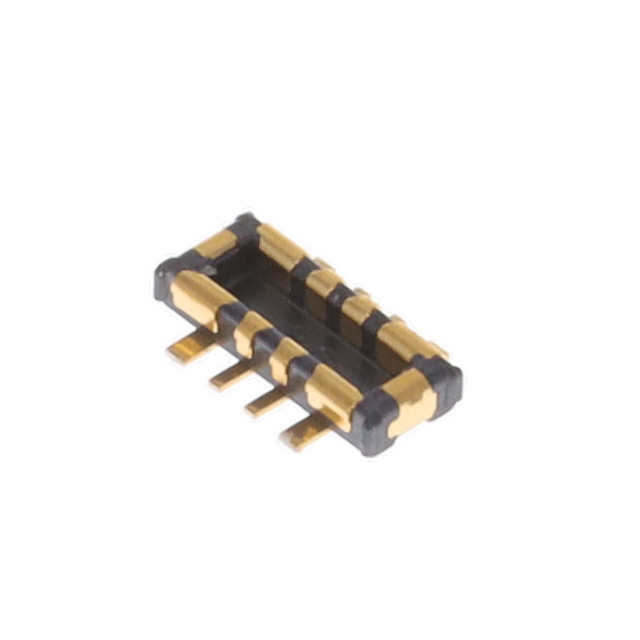

Hirose Electric Co Ltd BM29B-4DP/2-0.35V(51)			0.014 in	0.35 mm	0.6 mm	1.97 Áin	0.05 Ám	Header Outer Shroud Contacts	2	Gold	Surface Mount	0.016 in	0.41 mm	6

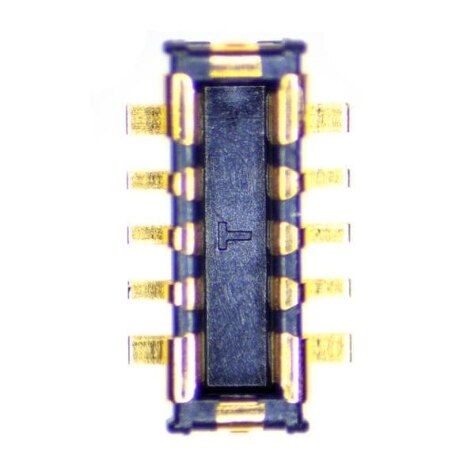

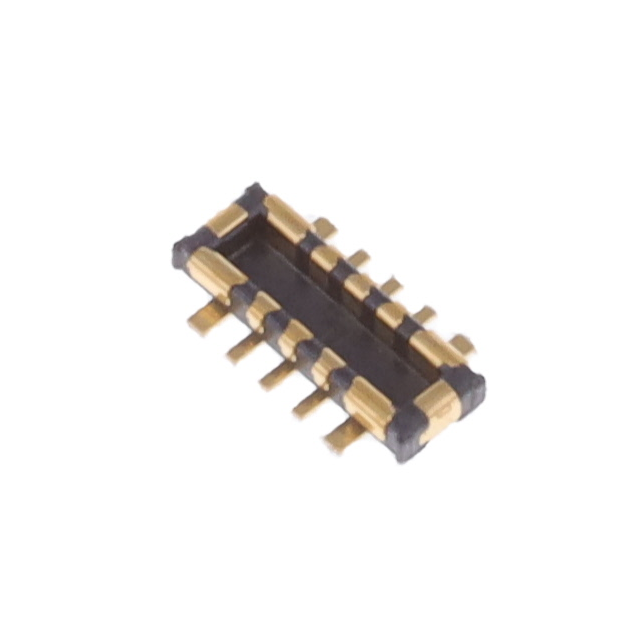

Hirose Electric Co Ltd BM29B-6DP/2-0.35V(53)		2	0.014 in	0.35 mm	0.6 mm	1.97 Áin	0.05 Ám	Header Outer Shroud Contacts	2	Gold	Surface Mount	0.016 in	0.41 mm		6

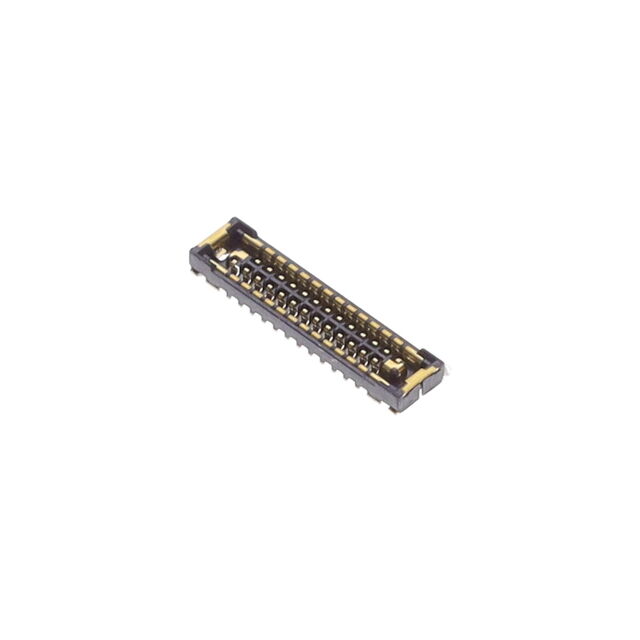

Hirose Electric Co Ltd BM29B0.6-24DS/2-0.35V(53)			0.014 in	0.35 mm	0.6 mm	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	2	Gold	Surface Mount	0.024 in	0.61 mm

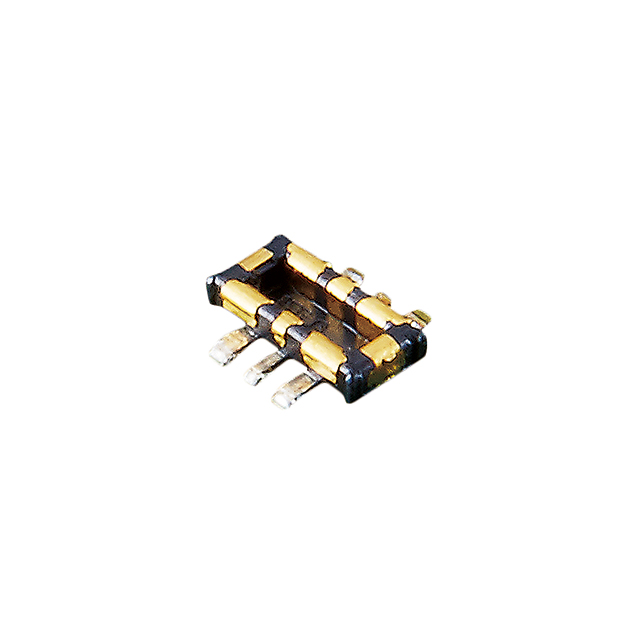

Hirose Electric Co Ltd BM29B-2DP/2-0.35V(51)	4	2	0.014 in	0.35 mm	0.6 mm			Header Outer Shroud Contacts	2	Gold	Surface Mount	0.016 in	0.41 mm

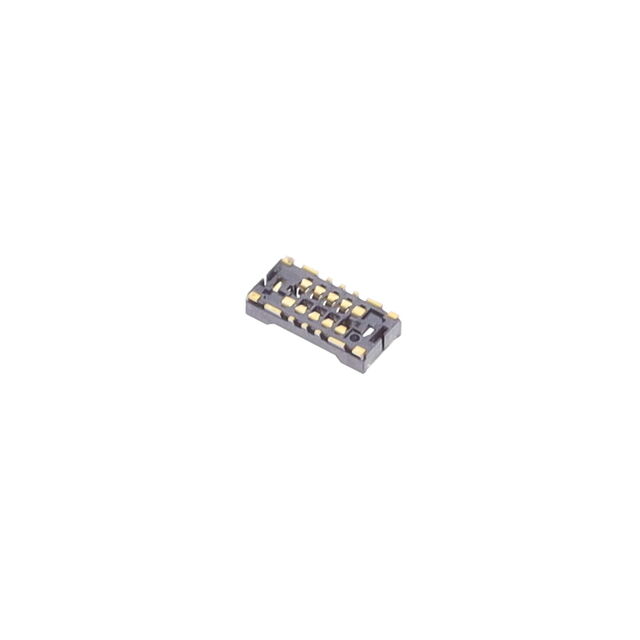

Hirose Electric Co Ltd BM29B0.6-6DS/2-0.35V(51)		2	0.014 in	0.35 mm	0.6 mm	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	2	Gold	Surface Mount	0.024 in	0.61 mm		6	Solder Retention
Hirose Electric Co Ltd BM29B0.6-4DS/2-0.35V(53)			0.014 in	0.35 mm	0.6 mm	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	2	Gold	Surface Mount	0.024 in	0.6 mm 0.61 mm	4		Solder Retention	0.024 in
