DF12NB(3.0) Series
Board to Board & Mezzanine Connectors CONN RCPT 60POS SMD
Manufacturer: Hirose Electric Co Ltd
Catalog
Board to Board & Mezzanine Connectors CONN RCPT 60POS SMD
Beta
⌘K
Board to Board & Mezzanine Connectors CONN RCPT 60POS SMD
Board to Board & Mezzanine Connectors CONN RCPT 60POS SMD
Board to Board & Mezzanine Connectors CONN RCPT 60POS SMD
| Part | Pitch | Pitch | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Mated Stacking Heights | Mounting Type | Height Above Board | Height Above Board [z] | Connector Type | Contact Finish | Features | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

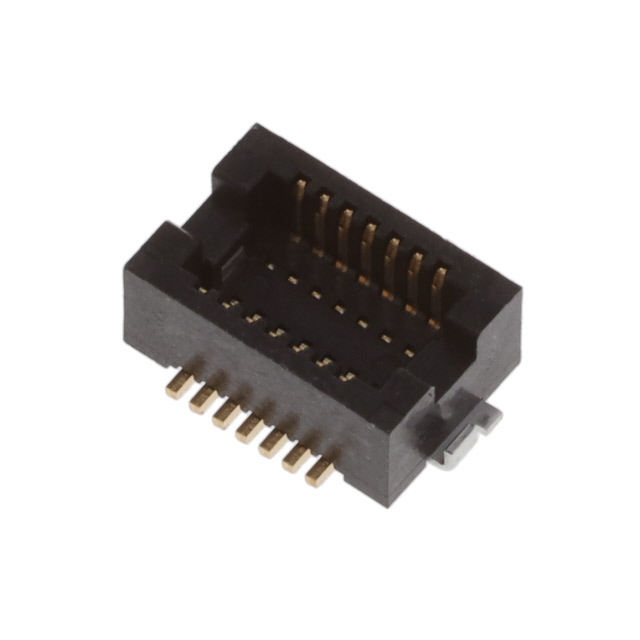

 Hirose Electric Co Ltd | 0.02 " | 0.5 mm | 2 | 0.203 çm | 8 µin | 14 | 3 mm | Surface Mount | 2.3 mm | 0.091 " | Header Outer Shroud Contacts | Gold | Solder Retention | |

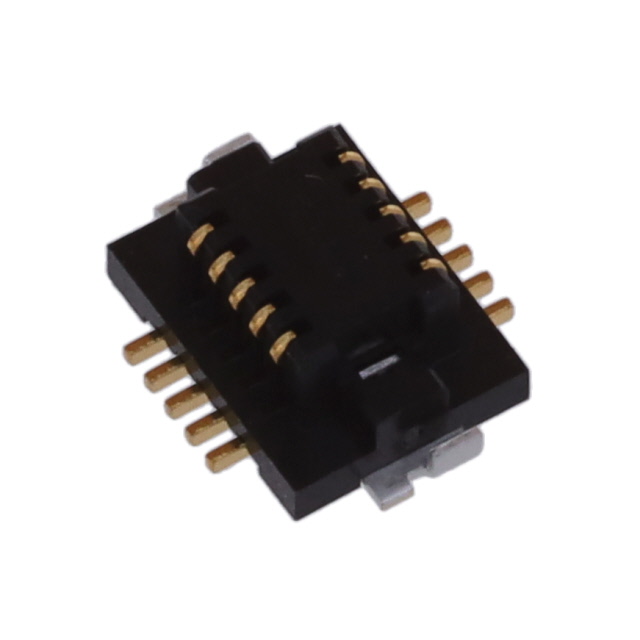

 Hirose Electric Co Ltd | 0.02 " | 0.5 mm | 2 | 0.203 çm | 8 µin | 10 | 3 mm | Surface Mount | 0.087 in | Receptacle Center Strip Contacts | Gold | Solder Retention | 2.2 mm | |
 Hirose Electric Co Ltd | 0.02 " | 0.5 mm | 2 | 0.203 çm | 8 µin | 20 | 3 mm | Surface Mount | 0.087 in | Receptacle Center Strip Contacts | Gold | Solder Retention | 2.2 mm | |
 Hirose Electric Co Ltd | 0.02 " | 0.5 mm | 2 | 0.203 çm | 8 µin | 3 mm | Surface Mount | 2.3 mm | 0.091 " | Header Outer Shroud Contacts | Gold | Solder Retention | ||

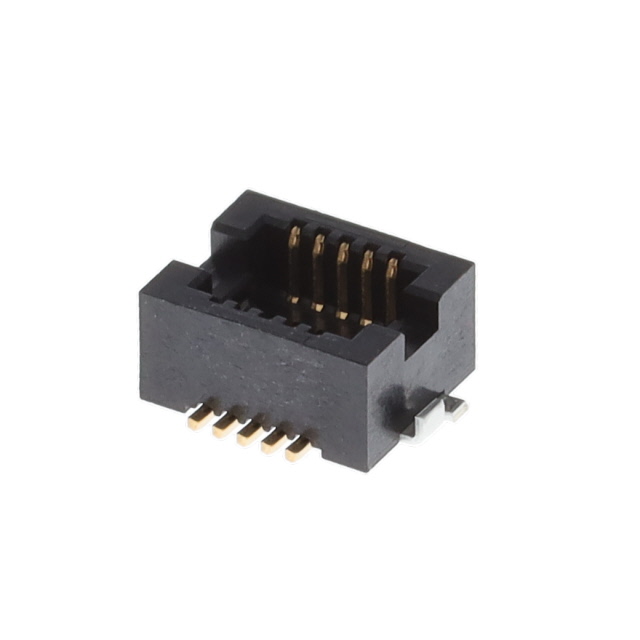

 Hirose Electric Co Ltd | 0.02 " | 0.5 mm | 2 | 0.203 çm | 8 µin | 10 | 3 mm | Surface Mount | 2.3 mm | 0.091 " | Header Outer Shroud Contacts | Gold | Solder Retention | |

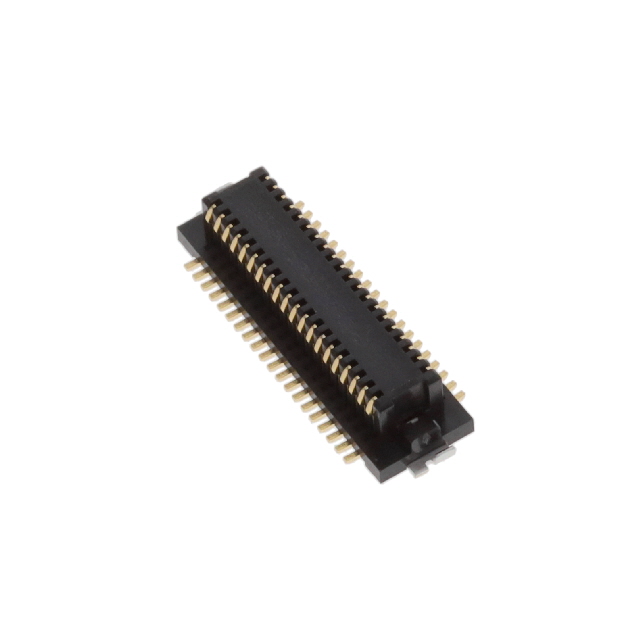

 Hirose Electric Co Ltd | 0.02 " | 0.5 mm | 2 | 0.203 çm | 8 µin | 40 | 3 mm | Surface Mount | 0.087 in | Receptacle Center Strip Contacts | Gold | Solder Retention | 2.2 mm | |
 Hirose Electric Co Ltd | 0.02 " | 0.5 mm | 2 | 0.203 çm | 8 µin | 30 | 3 mm | Surface Mount | 0.087 in | Receptacle Center Strip Contacts | Gold | Solder Retention | 2.2 mm | |
 Hirose Electric Co Ltd | 0.02 " | 0.5 mm | 2 | 0.203 çm | 8 µin | 80 | 3 mm | Surface Mount | 0.087 in | Receptacle Center Strip Contacts | Gold | Solder Retention | 2.2 mm | |

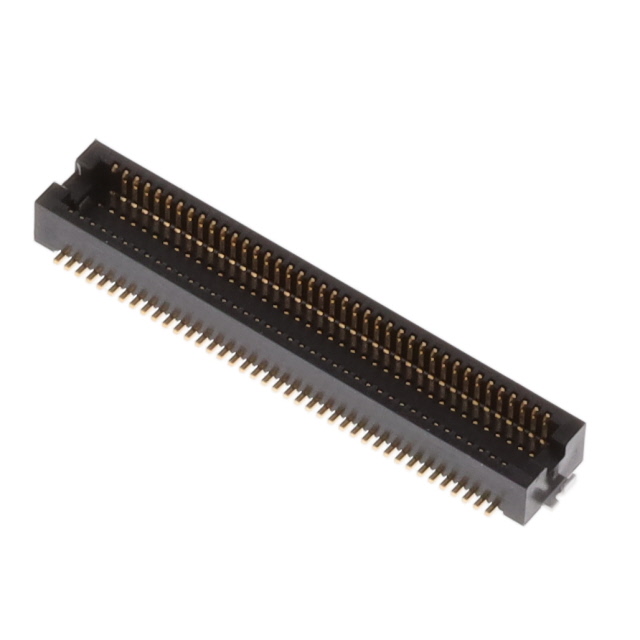

 Hirose Electric Co Ltd | 0.02 " | 0.5 mm | 2 | 0.203 çm | 8 µin | 80 | 3 mm | Surface Mount | 2.3 mm | 0.091 " | Header Outer Shroud Contacts | Gold | Solder Retention | |

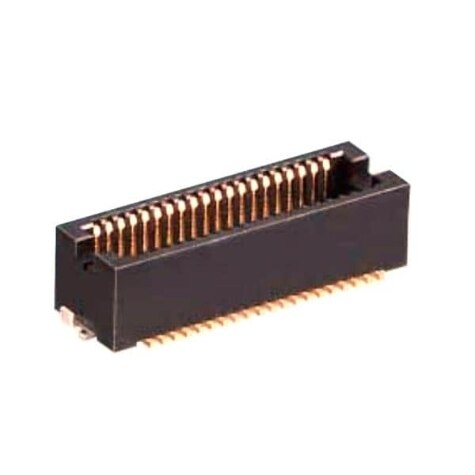

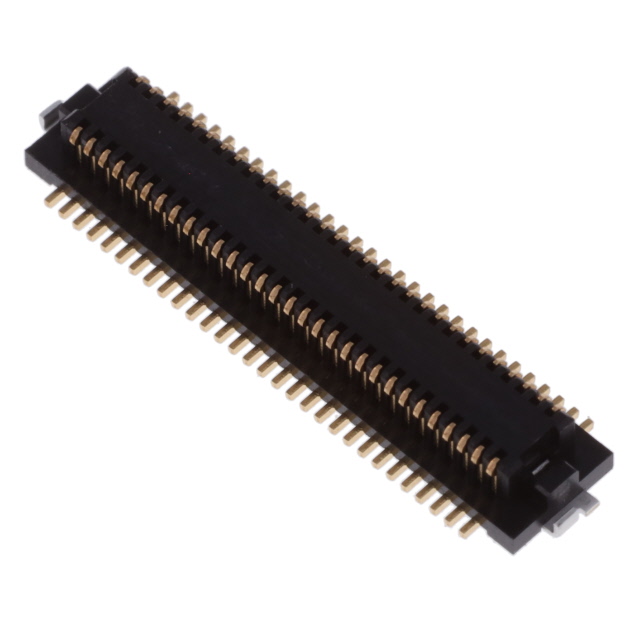

 Hirose Electric Co Ltd | 0.02 " | 0.5 mm | 2 | 0.203 çm | 8 µin | 60 | 3 mm | Surface Mount | 0.087 in | Receptacle Center Strip Contacts | Gold | Solder Retention | 2.2 mm |
