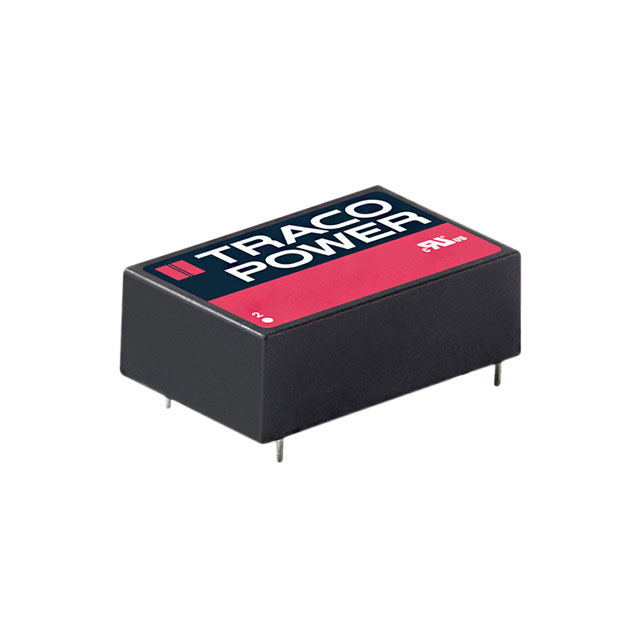

THM 10 Series

Catalog

DC DC CONVERTER 24V 10W

Part	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Type	Power (Watts)	Voltage - Isolation	Current - Output (Max) [Max]	Features	Applications	Voltage - Input (Min) [Min]	Voltage - Output 1	Efficiency	Approval Agency	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max)
Traco Power THM 10-0515WI	24-DIP Module 6 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Through Hole	90 °C	-40 °C	9 V	Isolated Module	10 W	5000 V	416 mA	OCP OVP SCP	Medical	4.5 V	24 V	85.5 %
Traco Power THM 10-0510	24-DIP Module 5 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Through Hole	90 °C	-40 °C	9 V	Isolated Module	8.3 W	5000 V	2.5 A	OCP OVP SCP	Medical	4.5 V	3.3 V	80 %	CB cURus

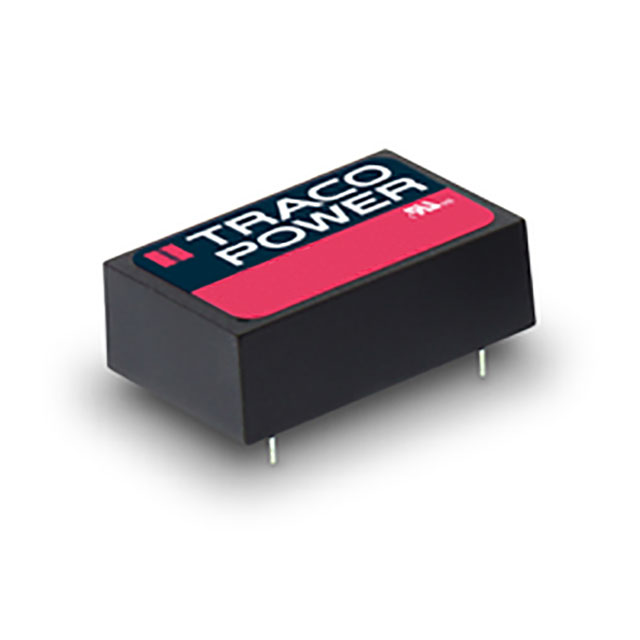

Traco Power THM 10-2422	24-DIP Module 6 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	Through Hole	90 °C	-40 °C	36 V	Isolated Module	10 W	5000 V	416 mA	OCP OVP SCP	Medical	18 V	12 V	89 %	CB cURus	-12 V	416 mA
Traco Power THM 10-4822WI	24-DIP Module 6 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	Through Hole	90 °C	-40 °C	75 V	Isolated Module	10 W	5000 V	416 mA	OCP OVP SCP	Medical	18 V	12 V	88 %		-12 V	416 mA
Traco Power THM 10-4821WI	24-DIP Module 6 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	Through Hole	90 °C	-40 °C	75 V	Isolated Module	10 W	5000 V		OCP OVP SCP	Medical	18 V	5 V	85 %		-5 V		1 A
Traco Power THM 10-1221	24-DIP Module 6 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	Through Hole	90 °C	-40 °C	18 V	Isolated Module	10 W	5000 V		OCP OVP SCP	Medical	9 V	5 V	84 %	CB cURus	-5 V		1 A
Traco Power THM 10-0511WI	24-DIP Module 6 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Through Hole	90 °C	-40 °C	9 V	Isolated Module	10 W	5000 V	2 A	OCP OVP SCP	Medical	4.5 V	5 V	84 %
Traco Power THM 10-0511	24-DIP Module 5 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Through Hole	90 °C	-40 °C	9 V	Isolated Module	10 W	5000 V	2 A	OCP OVP SCP	Medical	4.5 V	5 V	84 %	CB cURus
Traco Power THM 10-1212	24-DIP Module 5 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Through Hole	90 °C	-40 °C	18 V	Isolated Module	10 W	5000 V	830 mA	OCP OVP SCP	Medical	9 V	12 V	88 %	CB cURus
Traco Power THM 10-2410	24-DIP Module 5 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Through Hole	90 °C	-40 °C	36 V	Isolated Module	8.3 W	5000 V	2.5 A	OCP OVP SCP	Medical	18 V	3.3 V	83 %	CB cURus
