MCP-16 Series
Manufacturer: Omnetics
Beta
⌘K

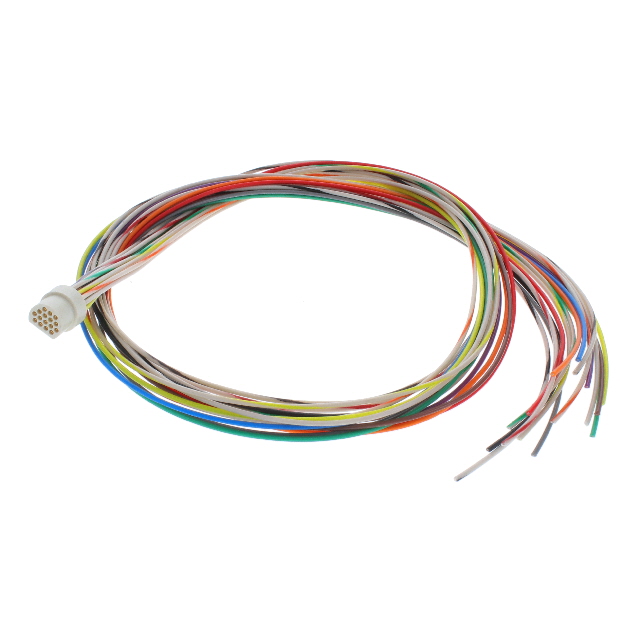

CIRC CBL 16POS PLUG TO WIRE 1.5'
| Part | 1st Connector Number of Positions Loaded | Shielding | 1st Connector Orientation | Color | Length [x] | Length [x] | 1st Connector Mounting Type | Cable Type | Cable Material | 1st Connector Gender | 2nd Connector Type | 1st Connector Number of Positions | Assembly Configuration | Usage | 1st Connector Type | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Fastening Type | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shell Material | Orientation | Number of Positions | Primary Material | Connector Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | All | Unshielded | Keyed | Multiple | 457.2 mm | 1.5 ft | Free Hanging (In-Line) | Individual | Polytetrafluoroethylene (PTFE) | Male Pins | Wire Leads | 16 | Standard | Industrial Environments | Plug | |||||||||||||||
 Omnetics | Unshielded | Natural | Liquid Crystal Polymer (LCP) | 50 µin | 1.27 µm | Beryllium Copper | Push-Pull | Gold | -55 C | 125 °C | Free Hanging (In-Line) | Liquid Crystal Polymer (LCP) | Keyed | 16 | Plastic | Plug Male Pins | 3 A |
