ARFS-3011 Series
Manufacturer: Aras Power Technologies
Beta
⌘K

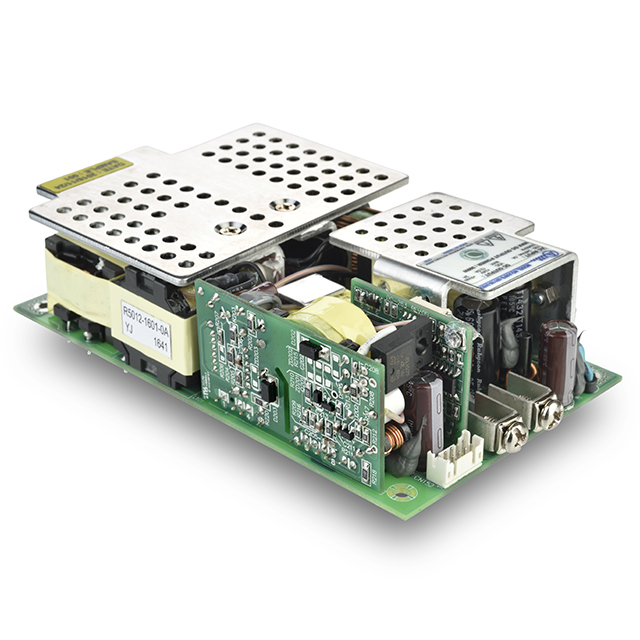

AC/DC CONVERTER 12V 300W
| Part | Minimum Load Required | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Features | Voltage - Output 1 | Mounting Type | Current - Output 1 | Power (Watts) | Number of Outputs | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aras Power Technologies | 35.6 mm | 5 " | 1.4 " | 3 " | 76.2 mm | 127 mm | Open Frame | 70 °C | 0 °C | ITE (Commercial) Medical | Standby Output Universal Input | 12 V | Chassis Mount | 25 A | 300 W | 1 | 90 % | 264 VAC | 90 VAC |
