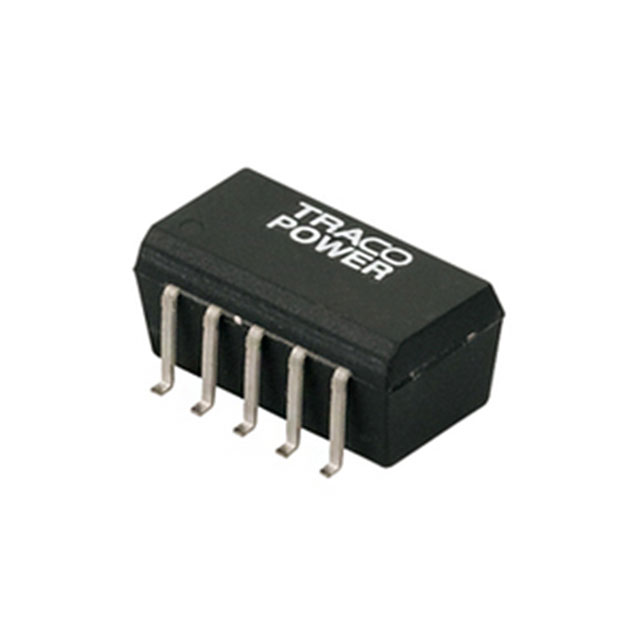

TSM 1205 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER +/-5V 1W
| Part | Voltage - Input (Min) [Min] | Type | Voltage - Isolation | Efficiency | Voltage - Input (Max) [Max] | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage - Output 2 | Number of Outputs | Current - Output (Max) | Current - Output (Max) | Voltage - Output 1 | Mounting Type | Package / Case | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 10.8 V | Isolated Module | 1000 V | 75 % | 13.2 V | ITE (Commercial) | 8 mm | 0.6 " | 15.2 mm | 0.28 " | 0.31 in | 7.1 mm | 85 °C | -40 C | SCP | -5 V | 2 | 100 mA | 100 mA | 5 V | Surface Mount | 18-SMD Module 10 Leads | |
 Traco Power | 10.8 V | Isolated Module | 1000 V | 81 % | 13.2 V | ITE (Commercial) | 8 mm | 0.5 " | 12.7 mm | 0.32 " | 0.31 in | 8.1 mm | 85 °C | -40 C | SCP | 1 | 5 V | Surface Mount | 14-SMD Module 8 Leads | 200 mA |
