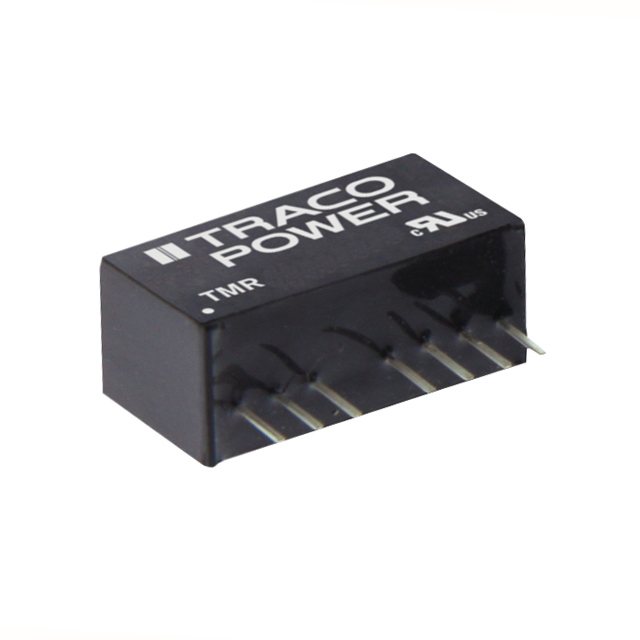

TMR 6 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER +/-5V 6W
| Part | Package / Case | Applications | Voltage - Output 2 | Type | Power (Watts) | Voltage - Isolation | Current - Output (Max) [Max] | Current - Output (Max) [Min] | Features | Voltage - Output 1 | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 8-SIP Module 7 Leads | ITE (Commercial) | -5 V | Isolated Module | 6 W | 1.6 kV | 600 mA | 600 mA | Remote On/Off SCP | 5 V | 2 | -40 C | 65 °C | Through Hole | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 18 V | 9 V | |
Traco Power | 8-SIP Module 7 Leads | ITE (Commercial) | Isolated Module | 6 W | 1.6 kV | 1.2 A | Remote On/Off SCP | 5 V | 1 | -40 C | 65 °C | Through Hole | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 18 V | 9 V | 83 % | ||
 Traco Power | 8-SIP Module 7 Leads | ITE (Commercial) | -5 V | Isolated Module | 6 W | 1.6 kV | 600 mA | 600 mA | Remote On/Off SCP | 5 V | 2 | -40 C | 71 °C | Through Hole | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 36 V | 9 V | 84 % |
 Traco Power | 8-SIP Module | ITE (Commercial) Railway | Isolated Module | 6 W | 3000 V | 666 mA | OCP Remote On/Off SCP | 9 V | 1 | -40 °C | 80 ¯C | Through Hole | 21.8 mm | 0.86 " | 9.6 mm | 0.44 in | 11.2 mm | 0.38 " | 75 V | 18 V | 85 % | ||
Traco Power | 8-SIP Module | ITE (Commercial) Railway | Isolated Module | 6 W | 3000 V | 500 mA | OCP Remote On/Off SCP | 12 V | 1 | -40 °C | 80 ¯C | Through Hole | 21.8 mm | 0.86 " | 9.6 mm | 0.44 in | 11.2 mm | 0.38 " | 75 V | 18 V | 87 % | ||
Traco Power | 8-SIP Module 7 Leads | ITE (Commercial) | -15 V | Isolated Module | 6 W | 1.6 kV | Remote On/Off SCP | 15 V | 2 | -40 C | 71 °C | Through Hole | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 36 V | 9 V | 87 % | ||
Traco Power | 8-SIP Module | ITE (Commercial) Railway | Isolated Module | 6 W | 3000 V | 400 mA | OCP Remote On/Off SCP | 15 V | 1 | -40 °C | 80 ¯C | Through Hole | 21.8 mm | 0.86 " | 9.6 mm | 0.44 in | 11.2 mm | 0.38 " | 160 V | 43 V | 86 % | ||
Traco Power | 8-SIP Module 7 Leads | ITE (Commercial) | Isolated Module | 6 W | 1.6 kV | 666 mA | Remote On/Off SCP | 9 V | 1 | -40 C | 65 °C | Through Hole | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 9 V | 4.5 V | 83 % | ||
Traco Power | 8-SIP Module 7 Leads | ITE (Commercial) | Isolated Module | 4.3 W | 1.6 kV | 1.3 A | Remote On/Off SCP | 3.3 V | 1 | -40 C | 65 °C | Through Hole | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 9 V | 4.5 V | 77 % | ||
Traco Power | 8-SIP Module 7 Leads | ITE (Commercial) | -5 V | Isolated Module | 6 W | 1.6 kV | 600 mA | 600 mA | Remote On/Off SCP | 5 V | 2 | -40 C | 65 °C | Through Hole | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 9 V | 4.5 V | 81 % |
