C0744 Series

Catalog

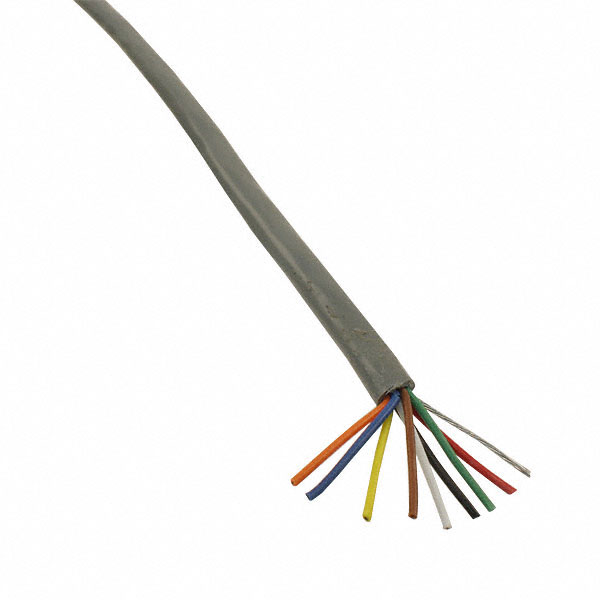

CABLE 8COND 24AWG GRAY SHLD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Length	Length	Jacket (Insulation) Material	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors [custom]	Shield Type	Wire Gauge	Jacket Color	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Conductor Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Shield Material
Prysmian Group C0744A.38.10	-20 ░C	105 ░C	Computer	152.4 m	500 ft	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	8	Foil	24 AWG	Gray	300 VDC	7	32 AWG	Multi-Conductor	Copper Tinned	Drain Wire	0.215 in	5.46 mm
Prysmian Group C0744A.38.10	-20 ░C	80 °C	Computer	152.4 m	500 ft	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	8	Foil	24 AWG	Gray	300 VDC	7	32 AWG	Multi-Conductor	Copper Tinned	Drain Wire	0.215 in	5.46 mm	100 %	Flexfoil®
Prysmian Group C0744A.41.10	-20 ░C	105 ░C	Computer	15.24 m 304.8 m	50 ft 1000 ft	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	8	Foil	24 AWG	Gray	300 VDC	7	32 AWG	Multi-Conductor	Copper Tinned	Drain Wire	0.215 in	5.46 mm
Prysmian Group C0744A.41.10	-20 ░C	80 °C	Computer	15.24 m 304.8 m	50 ft 1000 ft	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	8	Foil	24 AWG	Gray	300 VDC	7	32 AWG	Multi-Conductor	Copper Tinned	Drain Wire	0.215 in	5.46 mm	100 %	Flexfoil®
