DF12D(4.0) Series

Catalog

CONN HDR 60POS SMD GOLD

Part	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Contact Finish	Mounting Type	Pitch	Pitch	Number of Rows [custom]	Connector Type	Features	Number of Positions
Hirose Electric Co Ltd DF12D(4.0)-60DP-0.5V(81)	3.3 mm	0.13 in	4 mm	Gold	Surface Mount	0.02 "	0.5 mm	2	Header Outer Shroud Contacts	Board Guide	60

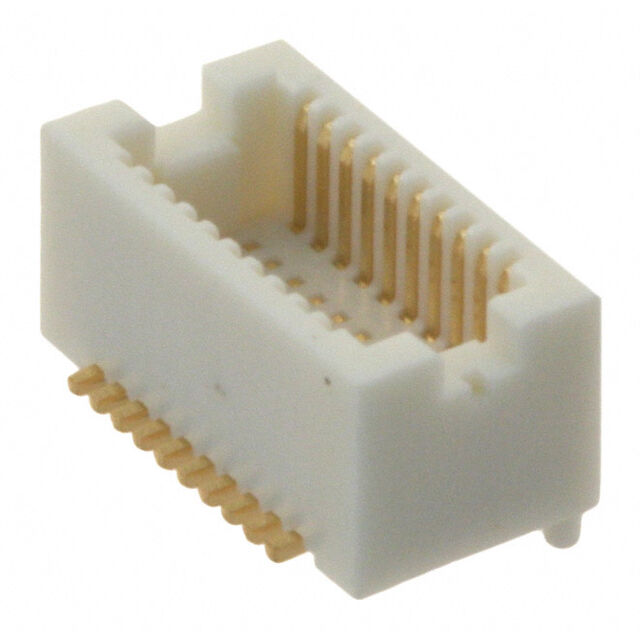

Hirose Electric Co Ltd DF12D(4.0)-20DP-0.5V(81)	3.3 mm	0.13 in	4 mm	Gold	Surface Mount	0.02 "	0.5 mm	2	Header Outer Shroud Contacts	Board Guide	20

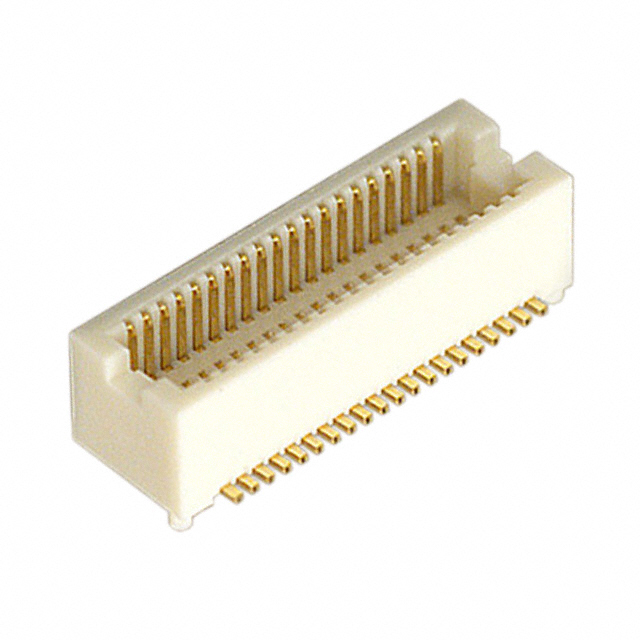

Hirose Electric Co Ltd DF12D(4.0)40DP0.5V80	3.3 mm	0.13 in	4 mm	Gold	Surface Mount	0.02 "	0.5 mm	2	Header Outer Shroud Contacts	Board Guide	40
Hirose Electric Co Ltd DF12D(4.0)30DP0.5V80	3.3 mm	0.13 in	4 mm	Gold	Surface Mount	0.02 "	0.5 mm	2	Header Outer Shroud Contacts	Board Guide	30
Hirose Electric Co Ltd DF12D(4.0)-40DP-0.5V(81)	3.3 mm	0.13 in	4 mm	Gold	Surface Mount	0.02 "	0.5 mm	2	Header Outer Shroud Contacts	Board Guide	40

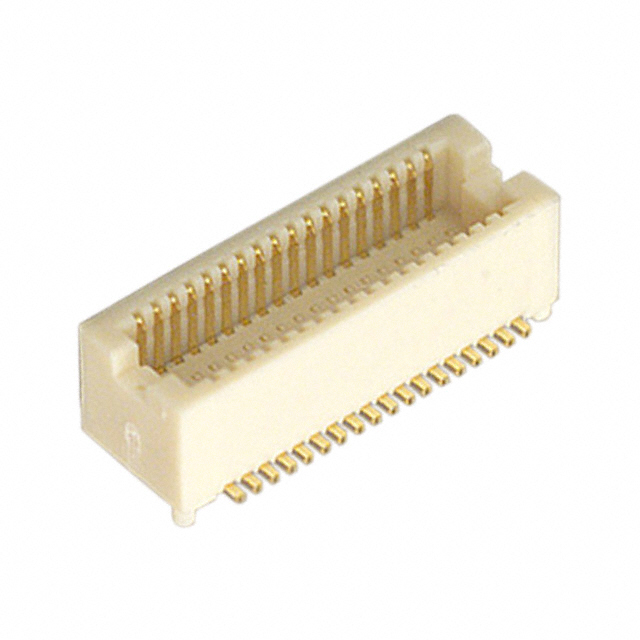

Hirose Electric Co Ltd DF12D(4.0)-36DP-0.5V(81)	3.3 mm	0.13 in	4 mm	Gold	Surface Mount	0.02 "	0.5 mm	2	Header Outer Shroud Contacts	Board Guide	36
