MIC4604 Series

Catalog

85V HALF BRIDGE GATE DRVR, SOIC-8 8 SOIC 3.90MM(.150IN) T/R ROHS COMPLIANT: YES

Part	Supplier Device Package	Gate Type	Logic Voltage - VIL, VIH [custom]	Logic Voltage - VIL, VIH [custom]	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Min]	Operating Temperature [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Type	Channel Type	Driven Configuration	Mounting Type	Current - Peak Output (Source, Sink)	Number of Drivers	Utilized IC / Part	Contents	Function	Supplied Contents	Type
Microchip Technology MIC4604YM-TR	8-SOIC	N-Channel MOSFET	2.2 V	0.8 V	8-SOIC	3.9 mm	0.154 in	-40 °C	125 ¯C	20 ns	20 ns	16 V	5.25 V	Non-Inverting	Independent	Half-Bridge	Surface Mount	1 A 1.5 A	2
Microchip Technology MIC4604YM-T5	8-SOIC	N-Channel MOSFET	2.2 V	0.8 V	8-SOIC	3.9 mm	0.154 in	-40 °C	125 ¯C	20 ns	20 ns	16 V	5.25 V	Non-Inverting	Independent	Half-Bridge	Surface Mount	1 A 1.5 A	2
Microchip Technology MIC4604YMT-T5	10-TDFN (2.5x2.5)	N-Channel MOSFET	2.2 V	0.8 V	10-UFDFN Exposed Pad			-40 °C	125 ¯C	20 ns	20 ns	16 V	5.25 V	Non-Inverting	Independent	Half-Bridge	Surface Mount	1 A 1.5 A	2

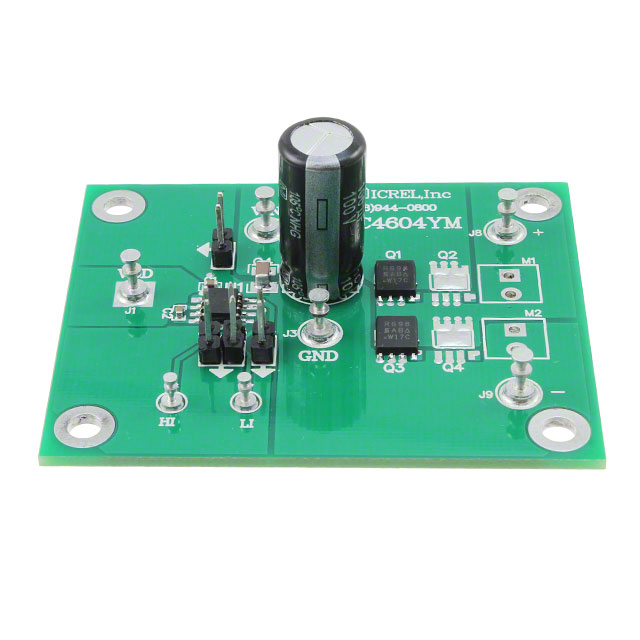

Microchip Technology MIC4604YM-EV																				MIC4604	Board(s)	Half H-Bridge Driver (External FET)	Board(s)	Power Management
