1.69507 Series

Manufacturer: RAFI USA

Catalog

SIGNAL LAMP TRANSPARENT GREEN

Part	Termination Style	Lens Transparency	Lens Color	Lens Size [diameter]	Lens Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Lamp Color	Voltage	Ingress Protection	Panel Cutout Shape	Type
RAFI USA 1.69.507.157/1502
RAFI USA 1.69.507.125/0214
RAFI USA 1.69.507.125/1002
RAFI USA 1.69.507.125/1402
RAFI USA 1.69.507.117/1002	Quick Connect	Clear	Colorless	12.5 mm	Round with Flat Top	0.394 "	10 mm	White	230 V	IP40	Round	Neon
RAFI USA 1.69.507.145/1601	Quick Connect - 0.110" (2.8mm)	Clear	Blue			0.42 in	10.6 mm	Blue	28 V		Round	Incandescent
RAFI USA 1.69.507.105/1601	Quick Connect - 0.110" (2.8mm)	Clear	Blue			0.42 in	10.6 mm	Blue	28 V		Round	Incandescent

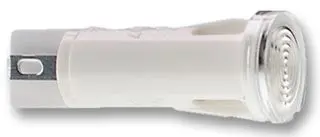

RAFI USA 1.69.507.117/1402	Quick Connect	Clear	Yellow	12.5 mm	Round with Flat Top	0.394 "	10 mm	White	230 V	IP40	Round	Neon
RAFI USA 1.69.507.117/1301	Quick Connect	Clear	Red	12.5 mm	Round with Flat Top	0.394 "	10 mm	White	230 V	IP40	Round	Neon
RAFI USA 1.69.507.105/1502	Quick Connect - 0.110" (2.8mm)	Clear	Green			0.42 in	10.6 mm	Green	28 V		Round	Incandescent
