01360 Series

Catalog

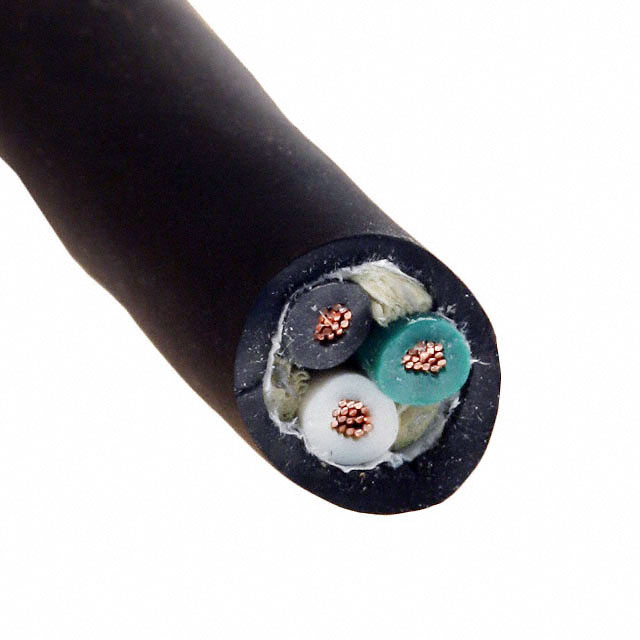

CABLE 3COND 14AWG BLACK

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Voltage	Cable Type	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Conductor Material	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Usage	Length [x]	Length [x]
Prysmian Group 01360.35.01	0.03 in	0.762 mm	14.5 AWG	300 VDC	Multi-Conductor	Carolprene	90 °C	-40 C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.37 in	9.4 mm	76.2 m	250 ft	Copper Annealed Bare	Black	41	30	3
Prysmian Group 01360.99.01	0.03 in	0.762 mm	14.5 AWG	300 VDC	Multi-Conductor	Carolprene	90 °C	-40 C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.37 in	9.4 mm			Copper Bare	Black	41	30	3
Prysmian Group 01360.15.01	0.03 in	0.762 mm	14.5 AWG	300 VDC	Multi-Conductor	Carolprene	90 °C	-40 C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.37 in	9.4 mm	76.2 m	250 ft	Copper Bare	Black	41	30	3	Cord and Cordset
Prysmian Group 01360R.46.01	0.03 in	0.762 mm	14.5 AWG	300 VDC	Multi-Conductor	Carolprene	90 °C	-40 C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.37 in	9.4 mm			Copper Annealed Bare	Black	41	30	3
Prysmian Group 01360R.44.01	0.03 in	0.762 mm	14.5 AWG	300 VDC	Multi-Conductor	Carolprene	90 °C	-40 C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.37 in	9.4 mm	762 m	2500 ft	Copper Bare	Black	41	30	3
Prysmian Group 01360.82.01	0.03 in	0.762 mm	14.5 AWG	300 VDC	Multi-Conductor	Carolprene	90 °C	-40 C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.37 in	9.4 mm			Copper Annealed Bare	Black	41	30	3		100 ft	30.5 m
Prysmian Group 01360.46.01	0.03 in	0.762 mm	14.5 AWG	300 VDC	Multi-Conductor	Carolprene	90 °C	-40 C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.37 in	9.4 mm			Copper Bare	Black	41	30	3
Prysmian Group 01360.35.01	0.03 in	0.762 mm	14.5 AWG	300 VDC	Multi-Conductor	Carolprene	90 °C	-40 C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.37 in	9.4 mm	76.2 m	250 ft	Copper Annealed Bare	Black	41	30	3
Prysmian Group 01360.41.01	0.03 in	0.762 mm	14.5 AWG	300 VDC	Multi-Conductor	Carolprene	90 °C	-40 C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.37 in	9.4 mm	304.8 m	1000 ft	Copper Bare	Black	41	30	3	Cord and Cordset
Prysmian Group 01360.44.01	0.03 in	0.762 mm	14.5 AWG	300 VDC	Multi-Conductor	Carolprene	90 °C	-40 C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.37 in	9.4 mm	762 m	2500 ft	Copper Bare	Black	41	30	3
