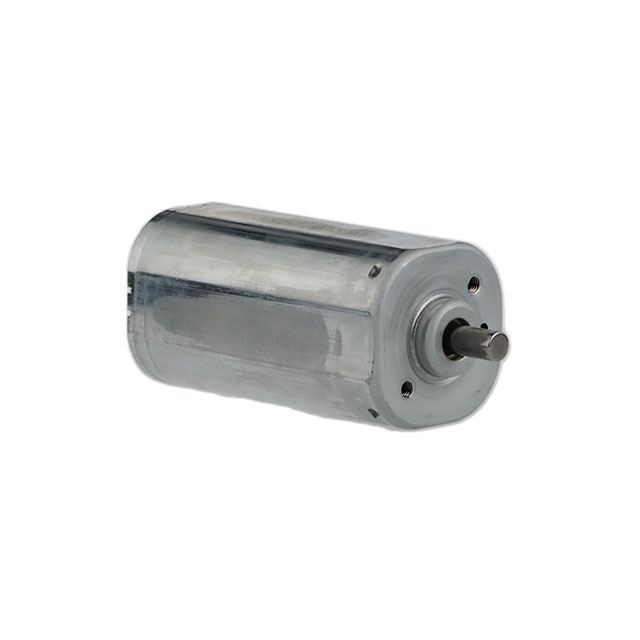

SE30R2NT Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STANDARD MOTOR 5300 RPM 24V
| Part | Weight | Weight | Termination Style | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Length - Shaft and Bearing | Length - Shaft and Bearing | Type | Function | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | RPM | Motor Type | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 210.01 g | 0.463 lb | Connector | 0.197 in | 5 mm | 0.866 in | 22 mm | 1.181 in | 30 mm | 1.181 in | 30 mm | 13 mm | 0.512 " | DC Motor | Standard | 70 mNm | 9.91 oz-in | 5300 RPM | Brushed | 24 VDC |
